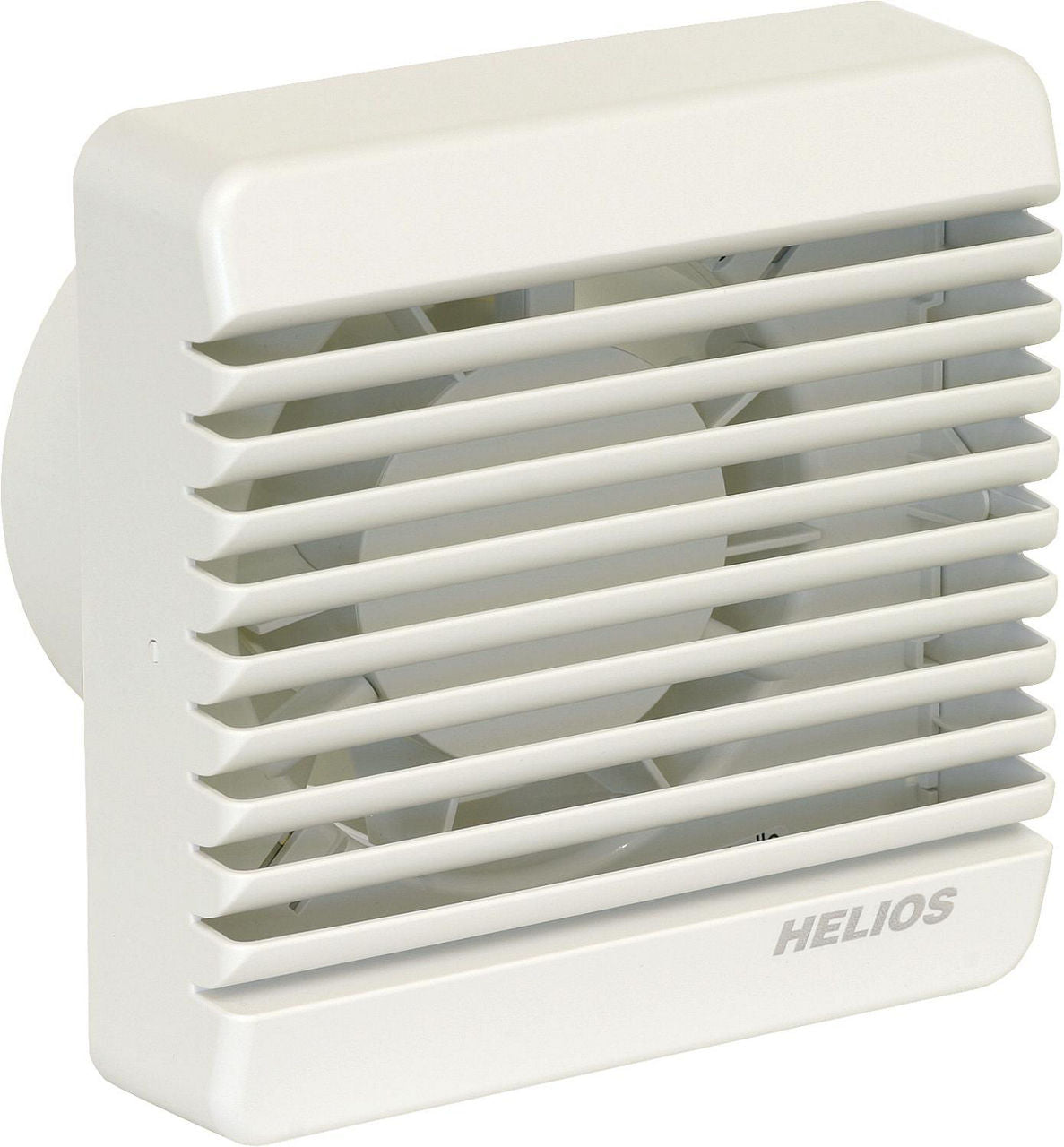

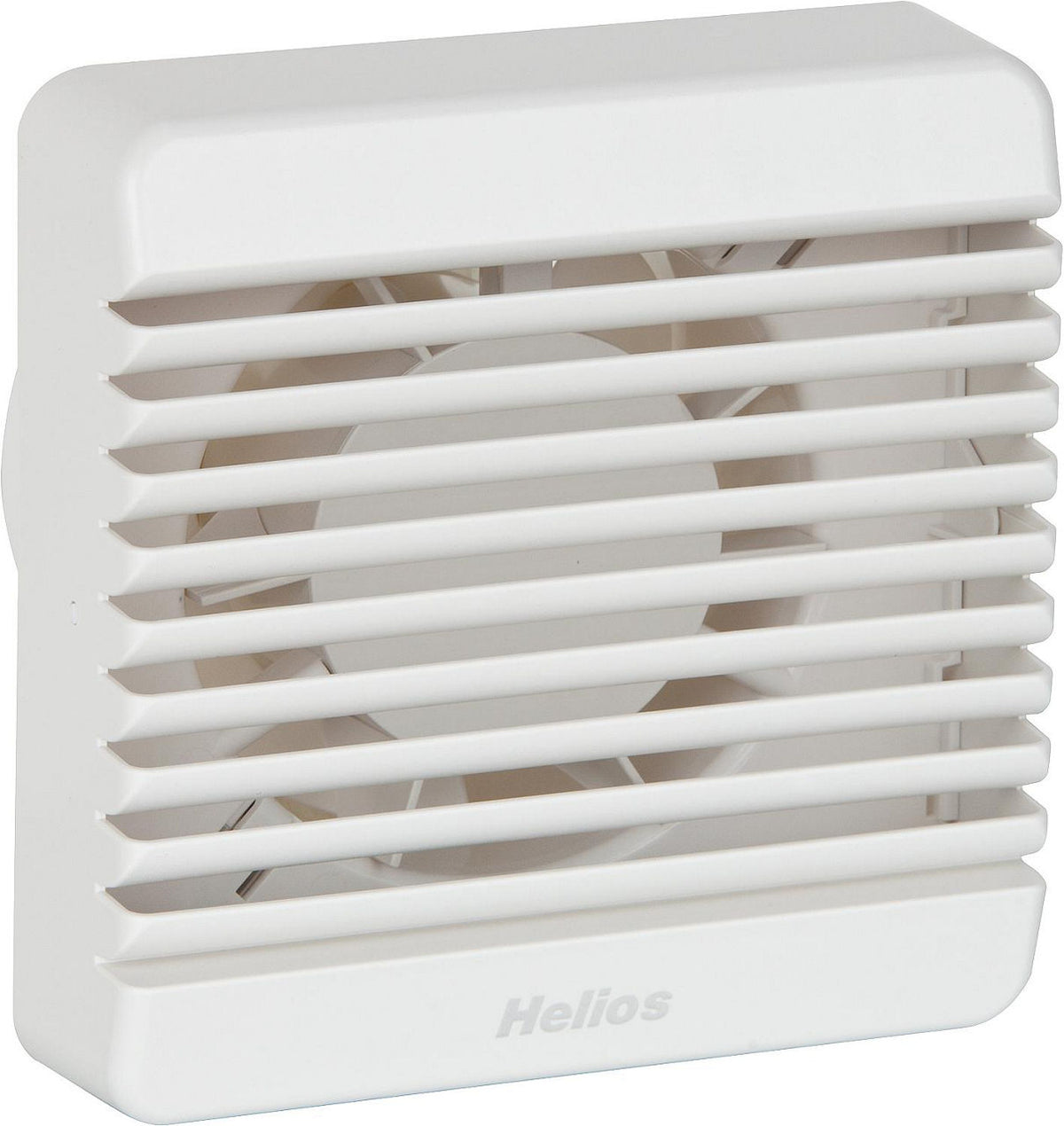

Helios HV 100 Small Room Fan, DN 100

CHF 104.05 - CHF 145.85
/
Tax included

Select an option to add this to your cart.

Description

  • For universal use in bathrooms, showers, WCs and other small rooms up to 25 m²
  • For ceiling mounting, the mounting flange is required (Order no. 98 014 15)
  • Connection: ø 100 mm
  • Air flow: 95 m³/h
  • Decibels at 1 m: 44 dBA
  • Voltage: 230 V/50 Hz
  • Protection class: IP 45

Technical data

Mains frequency [Hz] 50
Mounting type surface-mounted
Housing material plastic
Colour white
Nominal diameter [mm] 100
Fan impeller axial
Construction type exhaust
Brand Helios
Available variants
Model Version Type Power consumption [W] Reference
Basic model standard HV 100 14 98 014 10
with timer switch and pull cord switch with timer HV 100 EZ 20 98 014 11
with pull cord switch with pull cord switch HV 100 E 17 98 014 12
with timer switch with timer HV 100 Z 17 98 014 13
Datasheets
Ventilateur pour petite pièce Helios HV 100, DN 100
Helios HV 100 Small Room Fan, DN 100
CHF 104.05 - CHF 145.85
Basic Model 98 014 10
CHF 104.05 /each
with timed switch and electrical switch 98 014 11
CHF 145.85 /each
with electric switch 98 014 12
CHF 145.10 /each
with timed switch 98 014 13
CHF 124.75 /each
