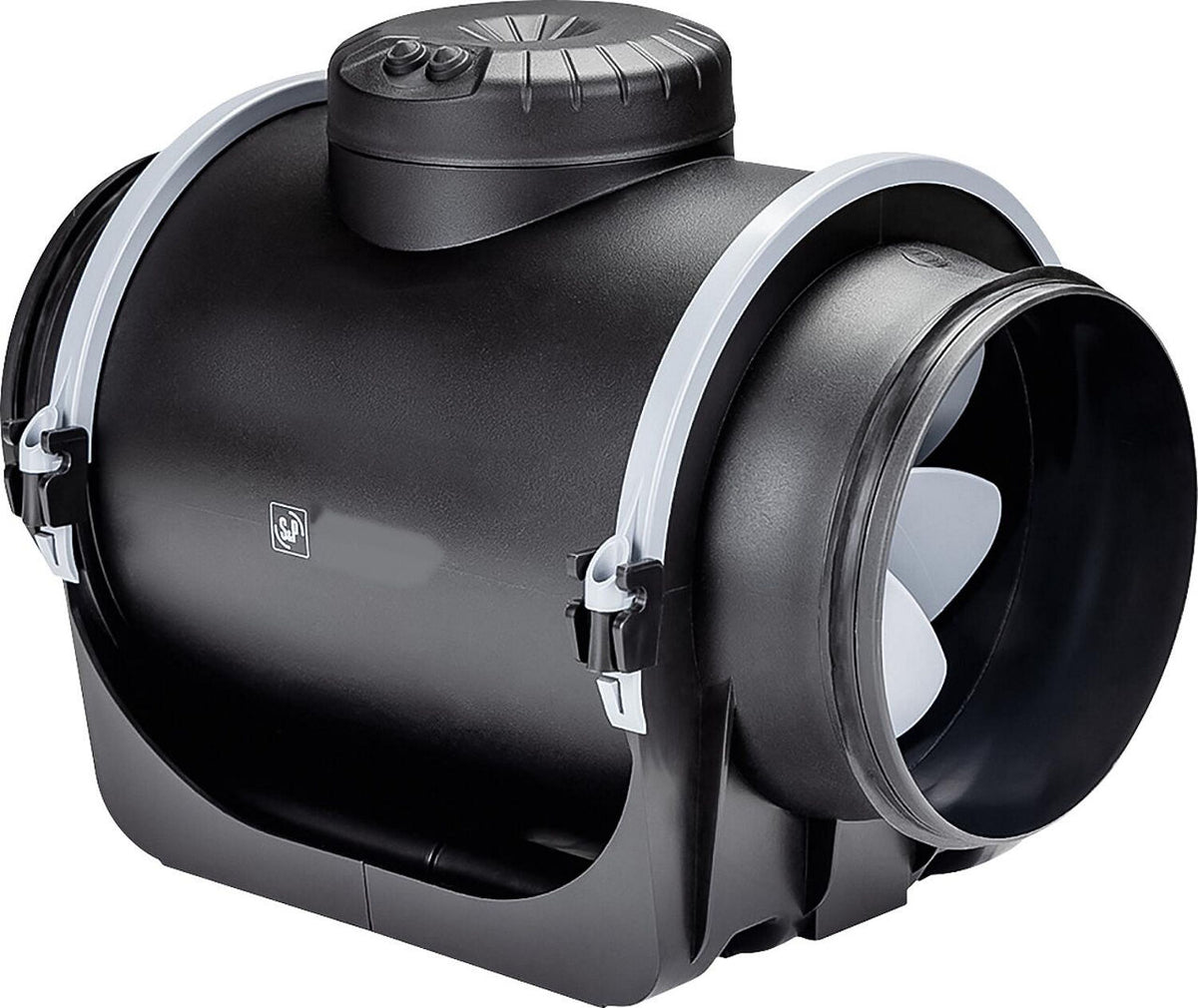

S&P TD EVO 160 PF Ecowatt Semi-Radial Duct Fan, EC, DN 160, 260-580 m³/h

CHF 438.05
/
Tax included

Select an option to add this to your cart.

Description

  • EC motor, speed adjustable via integrated potentiometer or external 0-10 V speed controller
  • Motor unit easy to remove for installation and maintenance
  • With mounting bracket
  • The SILENT-BLOCK between the motor and the casing reduces motor vibrations and lowers the fan's noise level
  • Construction: Semi-radial
  • Voltage: 230 V
  • Protection class: IP44
  • Speed control: continuous
  • Discharge temperature: -20°C to +40°C
  • Mounting type: optional
  • Casing: 85% recycled plastic

Technical data

Length [mm] 302
Manufacturer reference 5211011000
Type TD EVO-160 PF ECOWATT
Power consumption [W] 37
Data sheets
Ventilateur de gaine semi-radial S&P TD EVO 160 PF Ecowatt, EC, DN 160, 260-580 m³/h
S&P TD EVO 160 PF Ecowatt Semi-Radial Duct Fan, EC, DN 160, 260-580 m³/h
CHF 438.05
Standard 98 012 02
CHF 438.05 /each
