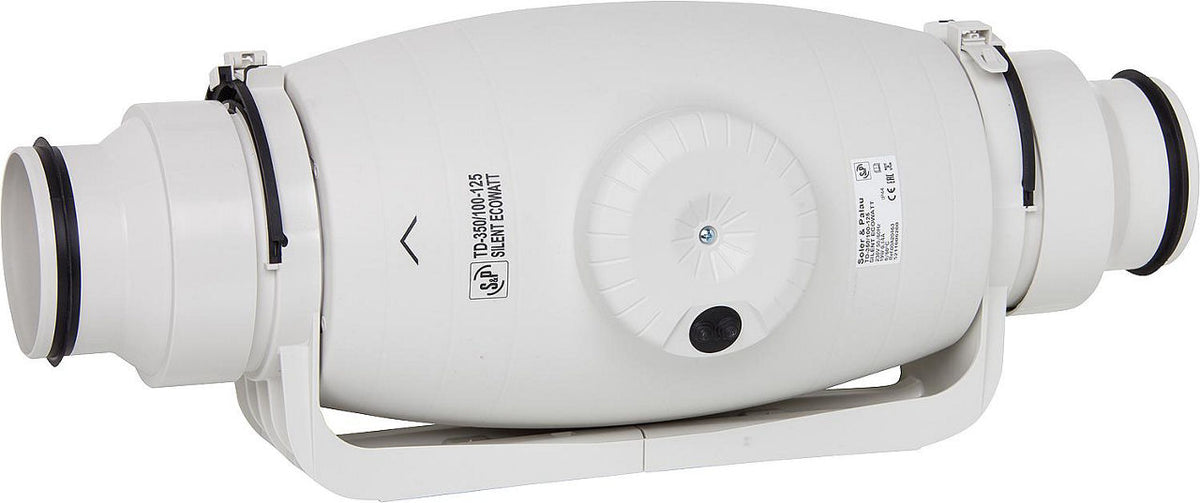

Ventilateur de gaine semi-radial insonorisé S&P TD Silent Ecowatt, EC, 180-1660 m³/h
Ventilateur de gaine semi-radial insonorisé S&P TD Silent Ecowatt, EC, 180-1660 m³/h
Ventilateur de gaine semi-radial insonorisé S&P TD Silent Ecowatt, EC, 180-1660 m³/h

S&P TD Silent Ecowatt semi-radial soundproof duct fan, EC, 180-1660 m³/h

CHF 557.90 - CHF 1,909.80
/
Tax included

Select an option to add this to your cart.

Description

  • Apartments, hostels, workshops, offices
  • Maintenance without dismantling the piping
  • Only one regulator size for all dimensions
  • The series is equipped with energy-efficient EC external rotor motors
  • Construction: semi-radial
  • Voltage: 230 V
  • Signal input: 0-10 V
  • Protection type: IP44
  • Fluid temperature: -20 to +40°C
  • Adjustable speed: yes
  • Equipped with energy-efficient EC motors
Available variants
Model Housing material Type Rotation speed [1/min] Power consumption [W] Current consumption [A] Reference
Nominal diameter 100-125 mm · Flow rate 180-350 m³/h plastic TD 350/100-125 Silent Ecowatt 1170-2235 7-19 0.14 98 027 01
Nominal diameter 150-160 mm · Flow rate 240-545 m³/h plastic TD 500/150-160 Silent Ecowatt 1320-2510 10-39 0.25 98 027 02
Nominal diameter 200 mm · Flow rate 485-1000 m³/h plastic TD 1000/200 Silent Ecowatt 1220-2470 17-99 0.66 98 027 03
Nominal diameter 250 mm · Flow rate 580-1240 m³/h steel treated TD 1300/250 Silent Ecowatt 1200-2460 29-143 0.60 98 027 04
Nominal diameter 315 mm · Flow rate 790-1660 m³/h steel treated TD 2000-315 Silent Ecowatt 1230-2520 41-247 1.0 98 027 05
Data sheets
Ventilateur de gaine semi-radial insonorisé S&P TD Silent Ecowatt, EC, 180-1660 m³/h
S&P TD Silent Ecowatt semi-radial soundproof duct fan, EC, 180-1660 m³/h
CHF 557.90 - CHF 1,909.80
Nominal diameter 100-125 mm · Flow rate 180-350 m³/h 98 027 01
CHF 557.90 /each
Nominal diameter 150-160 mm · Flow rate 240-545 m³/h 98 027 02
CHF 602.85 /each
Nominal diameter 200 mm · Flow rate 485-1000 m³/h 98 027 03
CHF 795.40 /each
Nominal diameter 250 mm · Flow rate 580-1240 m³/h 98 027 04
CHF 1,686.35 /each
Nominal diameter 315 mm · Flow rate 790-1660 m³/h 98 027 05
CHF 1,909.80 /each
