Ventilateur de gaine radial S&P Jetline, 260-1280 m³/h
Ventilateur de gaine radial S&P Jetline, 260-1280 m³/h
Ventilateur de gaine radial S&P Jetline, 260-1280 m³/h

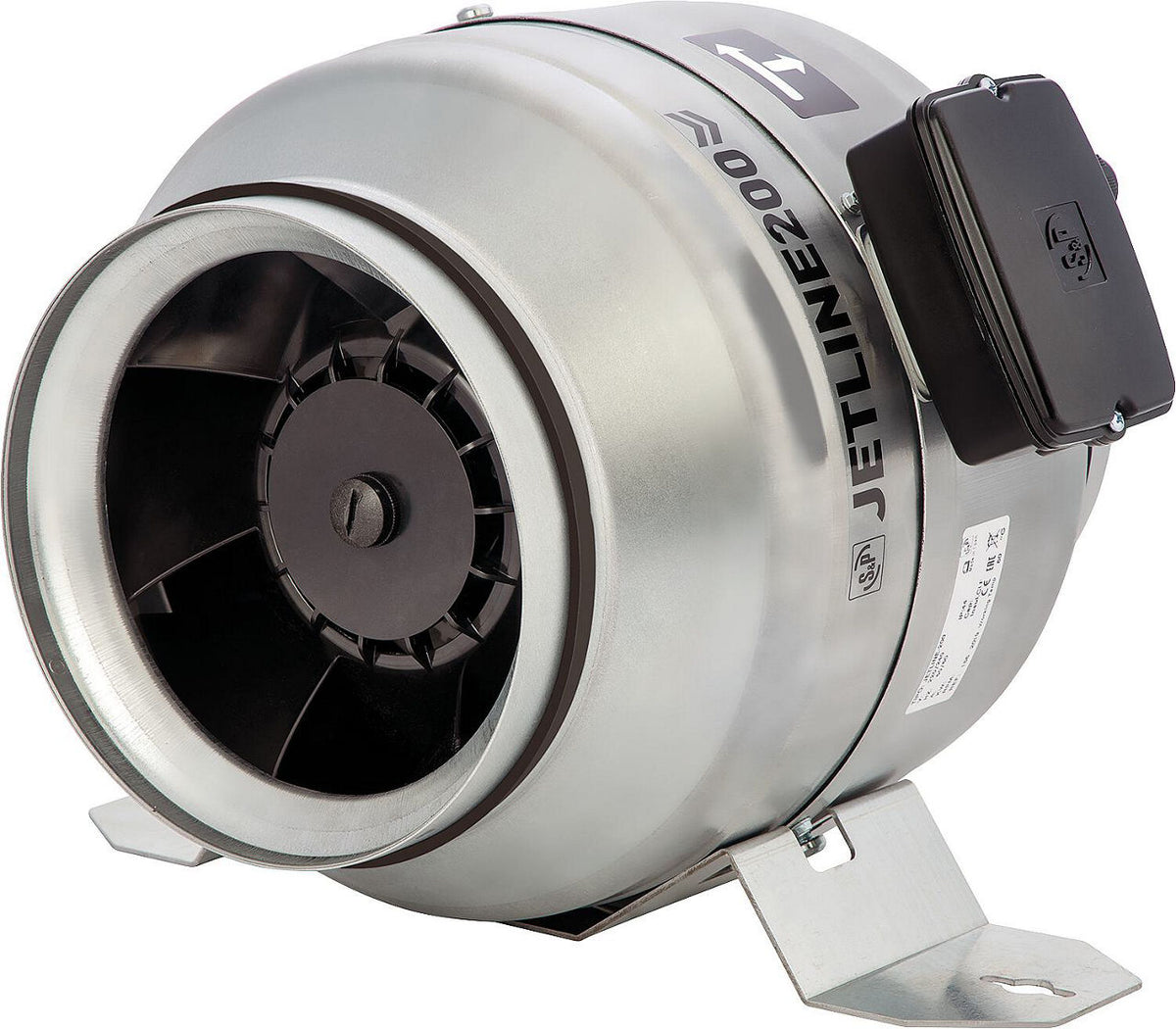

S&P Jetline Radial Duct Fan, 260-1280 m³/h

CHF 216.35 - CHF 427
/
Tax included

Select an option to add this to your cart.

Description

  • Voltage: 230 V 50Hz
  • Protection class: IP 44
  • Speed adjustable: Yes
  • Radial construction
  • Patented silent blocks for silent operation
  • Casing: Galvanized steel
  • Impeller: Plastic
  • Thermal class: F
  • Ball bearings, maintenance-free

Technical data

Casing material steel treated
Available versions
Model Type Item No.
Nominal diameter 100 mm · Air flow 260 m³/h Jetline-100 98 011 05
Nominal diameter 125 mm · Air flow 420 m³/h Jetline-125 98 011 06
Nominal diameter 160 mm · Air flow 760 m³/h Jetline-160 98 011 07
Nominal diameter 200 mm · Air flow 1080 m³/h Jetline-200 98 011 08
Nominal diameter 250 mm · Air flow 1280 m³/h Jetline-250 98 011 09
Data sheets
Ventilateur de gaine radial S&P Jetline, 260-1280 m³/h
S&P Jetline Radial Duct Fan, 260-1280 m³/h
CHF 216.35 - CHF 427
Nominal diameter 100 mm · Flow rate 260 m³/h 98 011 05
CHF 216.35 /each
Nominal diameter 125 mm · Flow rate 420 m³/h 98 011 06
CHF 223 /each
Nominal diameter 160 mm · Flow rate 760 m³/h 98 011 07
CHF 255.25 /each
Nominal diameter 200 mm · Flow rate 1080 m³/h 98 011 08
CHF 372.90 /each
Nominal diameter 250 mm · Flow rate 1280 m³/h 98 011 09
CHF 427 /each
