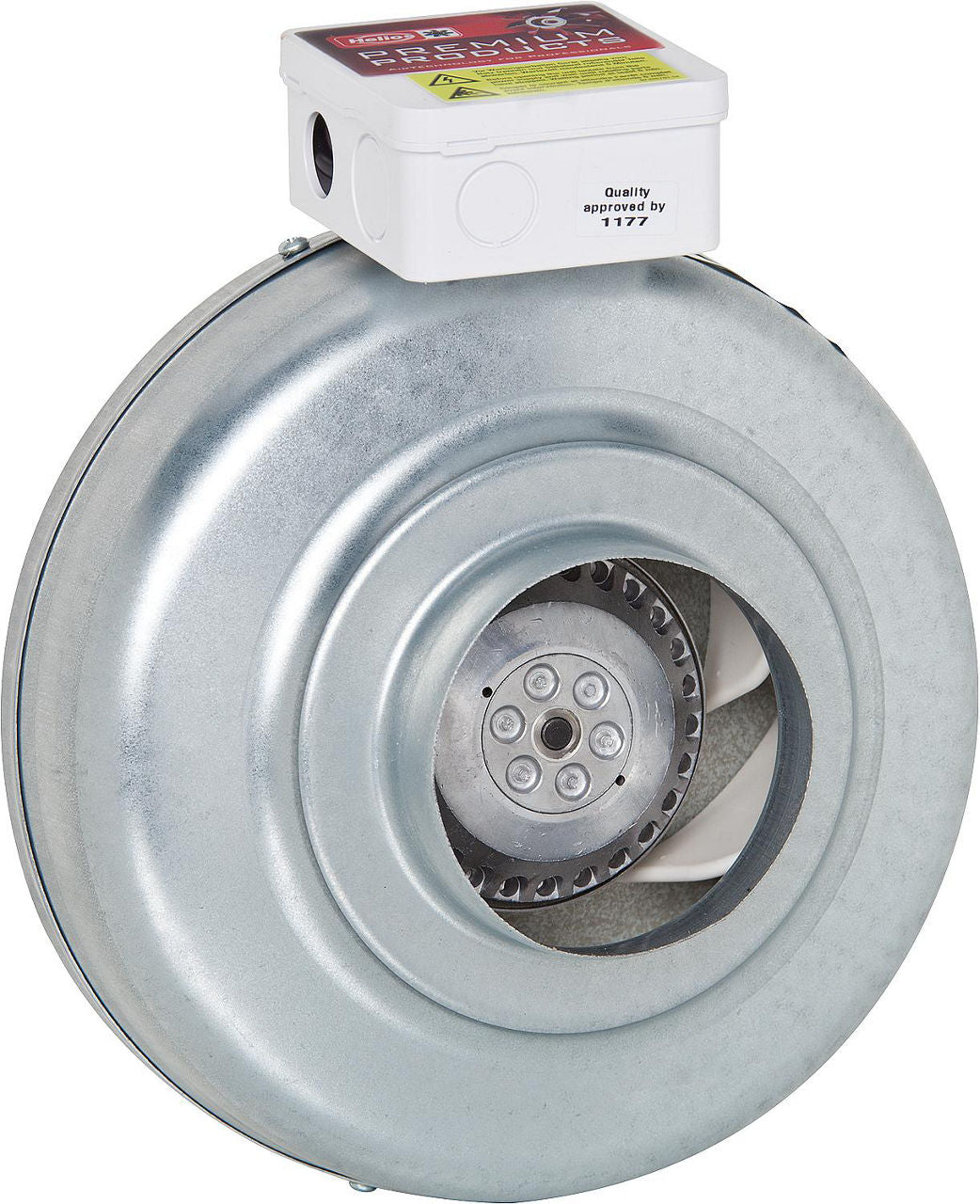

Helios InlineVent® RR radial duct fan, 250-1260 m³/h

CHF 141.70 - CHF 433.40
/
Tax included

Select an option to add this to your cart.

Description

  • Construction: radial
  • Voltage: 230 V
  • Protection: IP55
  • Temperature: up to +60°C
  • Adjustable speed: yes
  • Material RR: galvanized steel

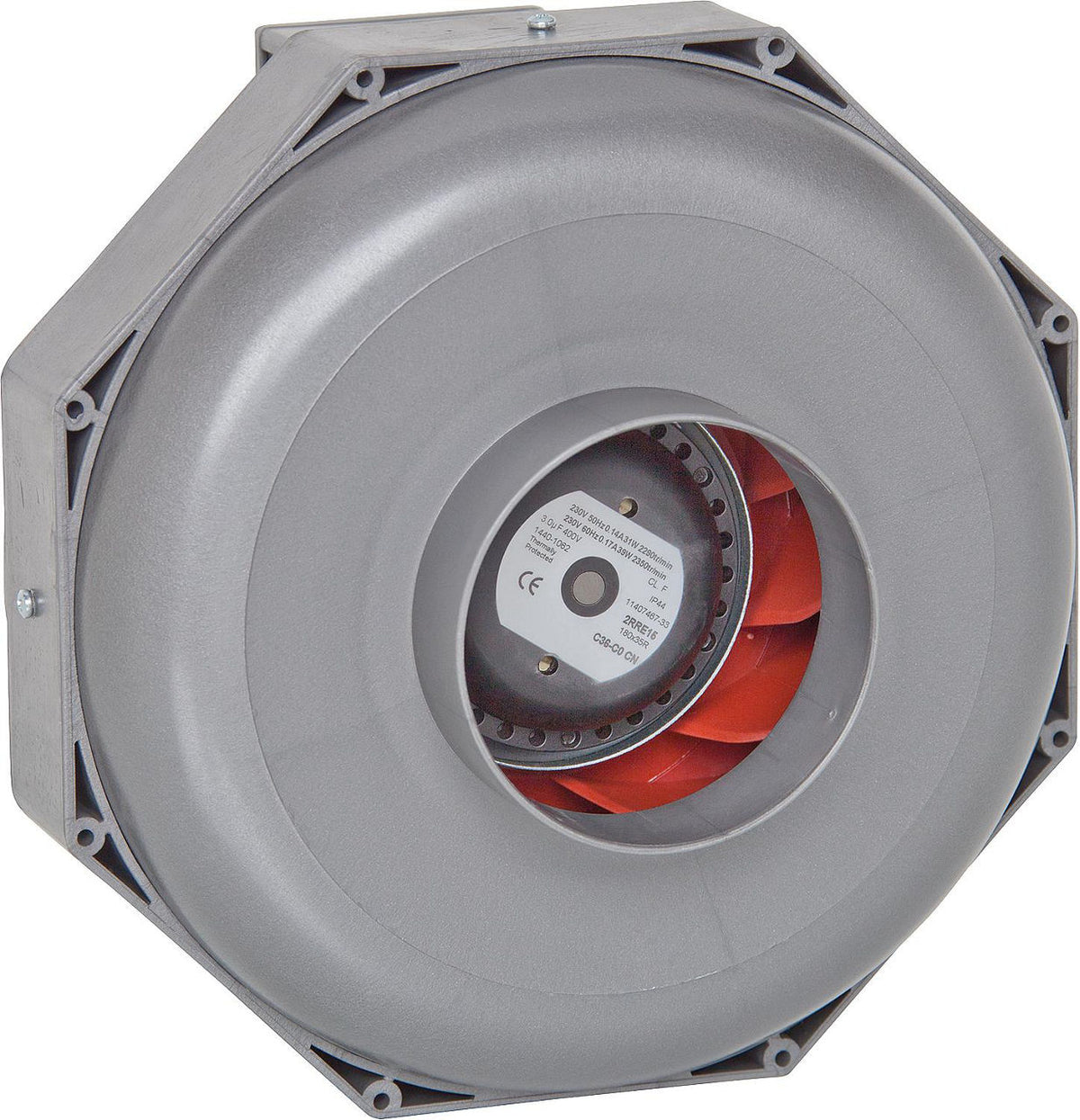

  • Material RRK: plastic
  • Mounting: horizontal or vertical

Technical data

Casing material steel-treated
Available versions
Model Type Rotational speed [1/min] Power consumption [W] Current consumption [A] Reference
Nominal diameter 100 mm · Flow rate 250 m³/h RR 100 A 1900 41 0.18 98 007 12
Nominal diameter 100 mm · Flow rate 317 m³/h RR 100 C 2460 70 0.27 98 007 13
Nominal diameter 125 mm · Flow rate 439 m³/h RR 125 C 2360 72 0.27 98 007 15
Nominal diameter 160 mm · Flow rate 530 m³/h RR 160 B 2540 69 0.27 98 007 18
Nominal diameter 160 mm · Flow rate 842 m³/h RR 160 C 2480 101 0.44 98 007 19
Nominal diameter 200 mm · Flow rate 896 m³/h RR 200 A 2580 115 0.51 98 007 22
Nominal diameter 200 mm · Flow rate 980 m³/h RR 200 B 2750 158 0.63 98 007 23
Nominal diameter 250 mm · Flow rate 970 m³/h RR 250 C 2750 145 0.63 98 007 26
Nominal diameter 315 mm · Flow rate 1260 m³/h RR 315 2660 200 0.87 98 007 29
Data sheets
Ventilateur de gaine radial Helios InlineVent® RR, 250-1260 m³/h
Helios InlineVent® RR radial duct fan, 250-1260 m³/h
CHF 141.70 - CHF 433.40
Nominal diameter 100 mm · Flow rate 250 m³/h 98 007 12
CHF 141.70 /each
Nominal diameter 100 mm · Flow rate 317 m³/h 98 007 13
CHF 148.05 /each
Nominal diameter 125 mm · Flow rate 439 m³/h 98 007 15
CHF 148.40 /each
Nominal diameter 160 mm · Flow rate 530 m³/h 98 007 18
CHF 150.20 /each
Nominal diameter 160 mm · Flow rate 842 m³/h 98 007 19
CHF 189.45 /each
Nominal diameter 200 mm · Flow rate 896 m³/h 98 007 22
CHF 206.50 /each
Nominal diameter 200 mm · Flow rate 980 m³/h 98 007 23
CHF 251 /each
Nominal diameter 250 mm · Flow rate 970 m³/h 98 007 26
CHF 298.40 /each
Nominal diameter 315 mm · Flow rate 1260 m³/h 98 007 29
CHF 433.40 /each
