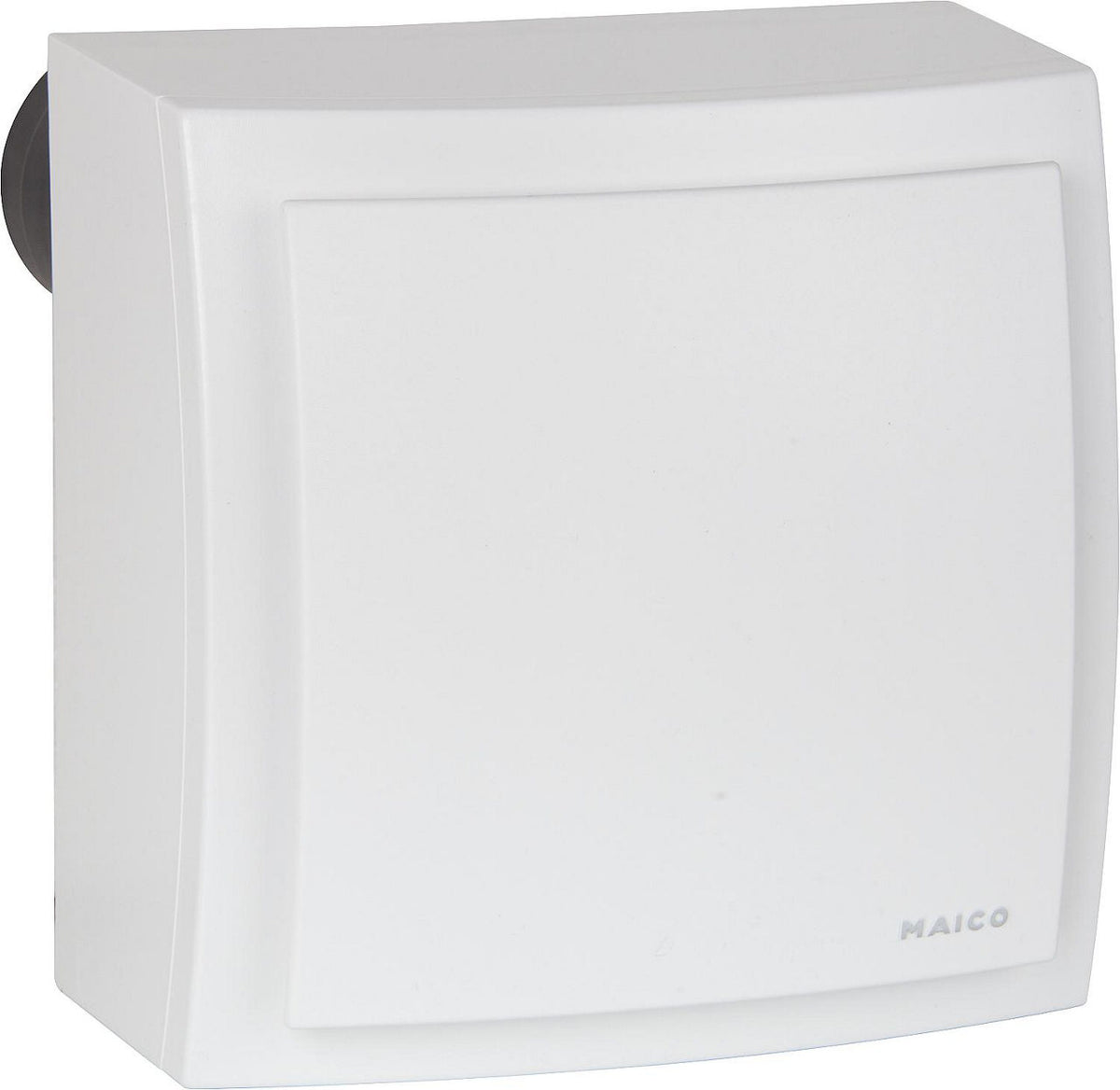

Maico ER-AP 60 Exposed Fan, DN 75

CHF 268.90 - CHF 305
/
Tax included

Select an option to add this to your cart.

Description

Field of application

  • Bathrooms, WCs, kitchens, cellars and storage rooms in private and public residential premises, hotels and other buildings according to DIN 18017-3
  • Mounting position: ceiling/wall
  • Possible to mount via a riser on more than 20 floors
  • Protection zone 1 of humid rooms
  • Mounting: radial
  • Flow rate: 35/61/100 m³/h
  • Sound pressure: 37/43/53 db(A)
  • Power consumption: 11/21/31 W
  • Voltage: 230 V/ 50 Hz
  • Protection class II/
  • Protection type: IP X5
  • Filter class G2
  • Max. discharge temperature: 40 °C
  • DN 75/80 discharge spigot
  • Metal backdraft damper
  • Rotatable casing, rear connection left or right upper
  • Color: white similar to RAL 9016

Technical data

Nominal diameter [mm] 75
Mounting type surface-mounted
Mains frequency [Hz] 50
Housing material plastic
Construction type radial
Width [mm] 236
Height [mm] 236
Depth [mm] 217.5
Brand Maico
Available variants
Model Version Rated current [A] Rotation speed [1/min] Type Max. current [A] Wiring Reference
Flow rate 61 m³/h · Standard standard 0.17 1250 ER-AP 60 0.21 3 x 1.5 mm² 98 017 73
Flow rate 61 m³/h · Timer switch with timer 0.17 1250 ER-AP 60 VZ 0.17 5 x 1.5 mm² 98 017 74
Flow rate 100 m³/h · Standard version standard 0.15 1850 ER-AP 100 0.15 3 x 1.5 mm² 98 017 78
