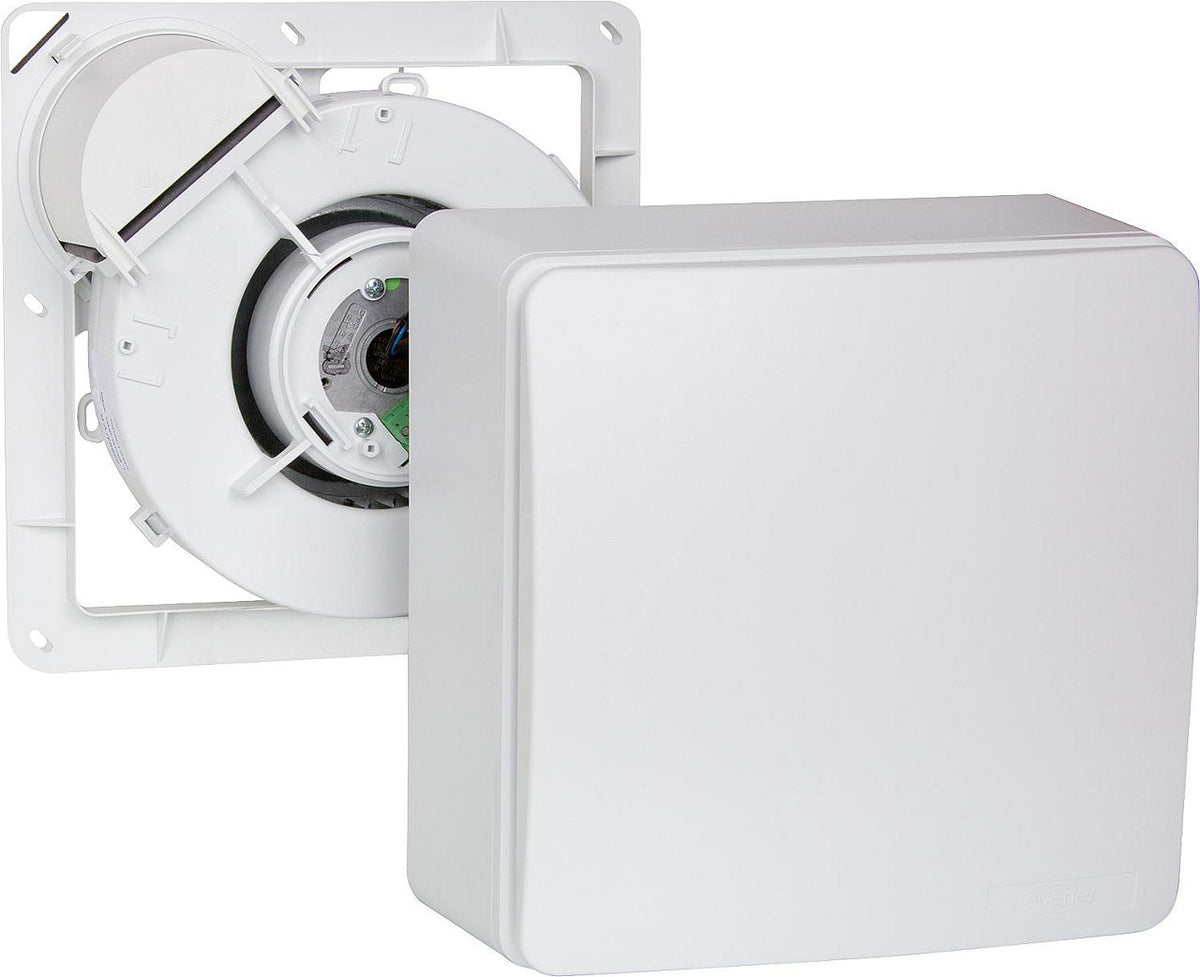

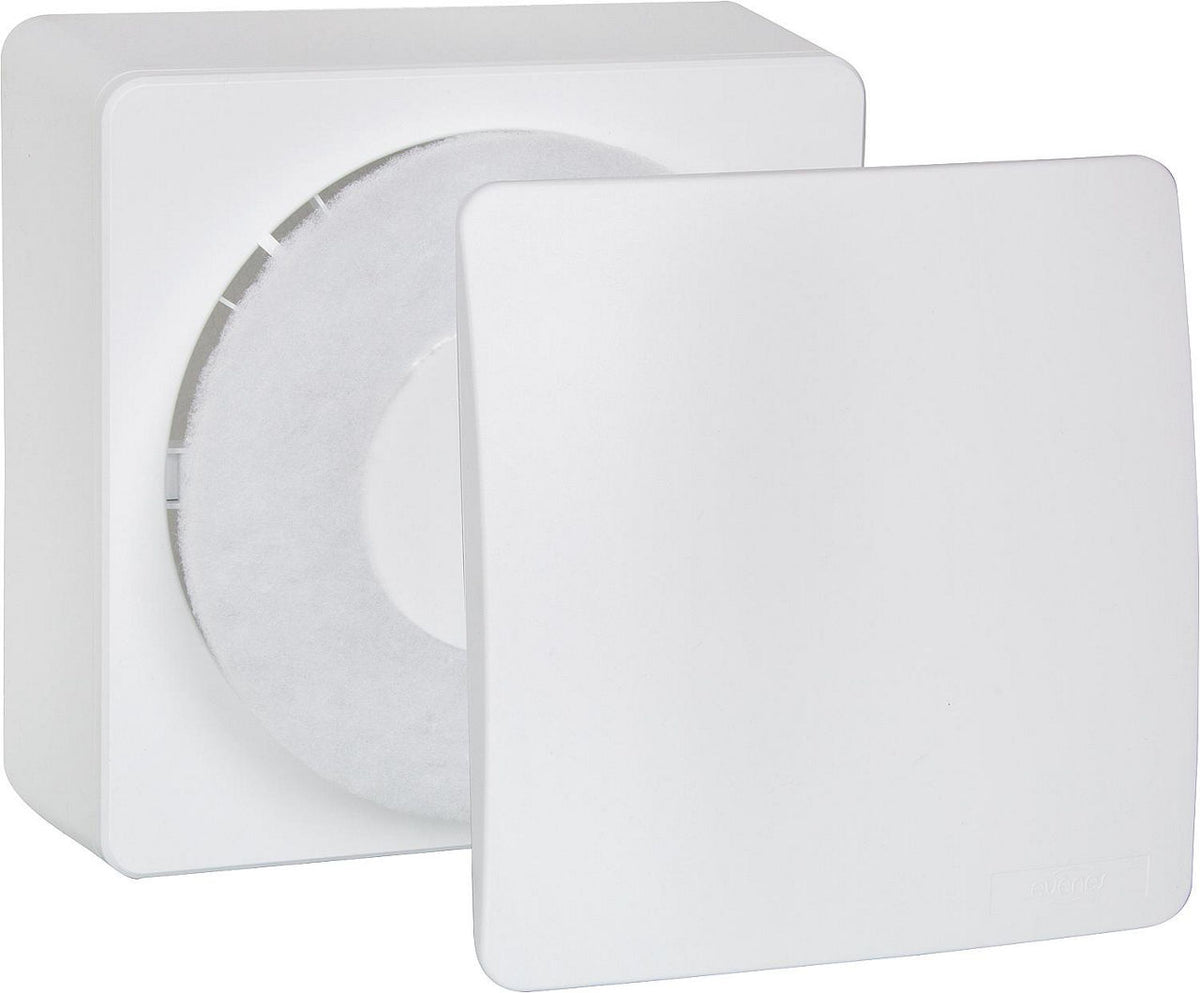

Visible fan evenes A 60 G, DN 80 to 100

CHF 189.25
/
Tax included

Select an option to add this to your cart.

Description

Areas of application

  • Bathrooms, WCs, kitchens, pantries and storage rooms in residential or public areas, hotels or other buildings according to DIN 18017-3
  • Wall/ceiling mounting
  • Can be mounted on a rising pipe up to 20 stories
  • Protection zone 1 in wet rooms
  • Mounting: radial
  • Flow rate: 30/60/100 m³/h
  • Noise level: 42 db(A)
  • Power consumption: 30 W
  • Voltage: 230 V AC/50 Hz, 0.15 A
  • Connection to DN 80-100 exhaust duct
  • White plastic casing (ABS)
  • Filter: EU2 class
  • Sealed backflow damper
  • Protection type IPX5 (water jet)

Attention: only works with additional control!

Technical data

Colour white
Mounting type surface-mounted
Mains frequency [Hz] 50
Rated current [A] 0.15
Housing material plastic
Construction type radial
Brand evenes
