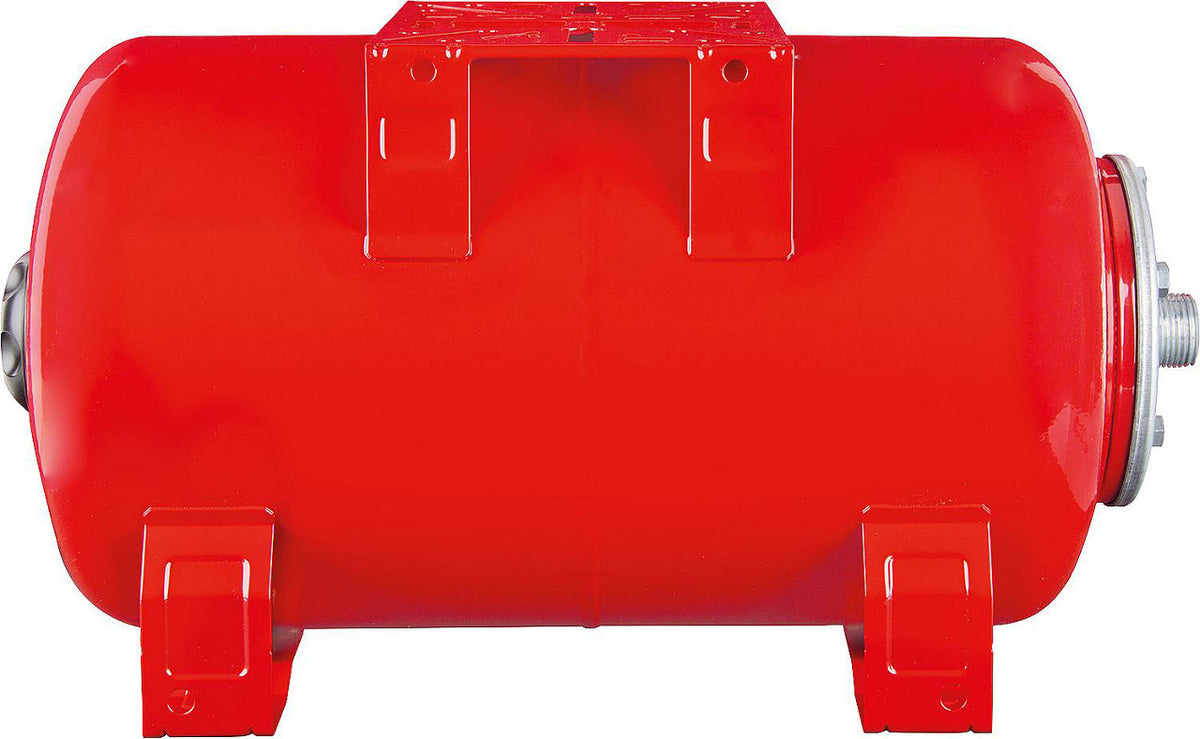

Varem Intervarem 20 L Diaphragm Expansion Vessel (Horizontal)

CHF 46.70
/
Tax included

Select an option to add this to your cart.

Features

  • For use in domestic booster systems and booster installations that are not subject to DIN 1988
  • Pressure tank according to Pressure Equipment Directive 2014/68/EU and DIN EN 13831
  • Galvanized steel flange
  • Operating temperature: -10°C to +99°C
  • Replaceable diaphragm
  • Diaphragm material: Butyl
  • Color: white
  • Design: horizontal with support feet

Technical data

  • Capacity [l]: 20
  • Connection: DN 25 (1")
  • Initial pressure [bar]: 1.5
  • Diameter [mm]: 275
  • Design: with support feet
  • Height [mm]: 492
  • Max. fluid temperature (continuous operation) [°C]: 99
  • Capacity [l]: 20
  • Color: red
  • Max. operating pressure [bar]: 10
  • Dimensions ø x H [mm]: 275 x 492
  • Max. working pressure [bar]: 10
  • Thread: DN 25 (1")
