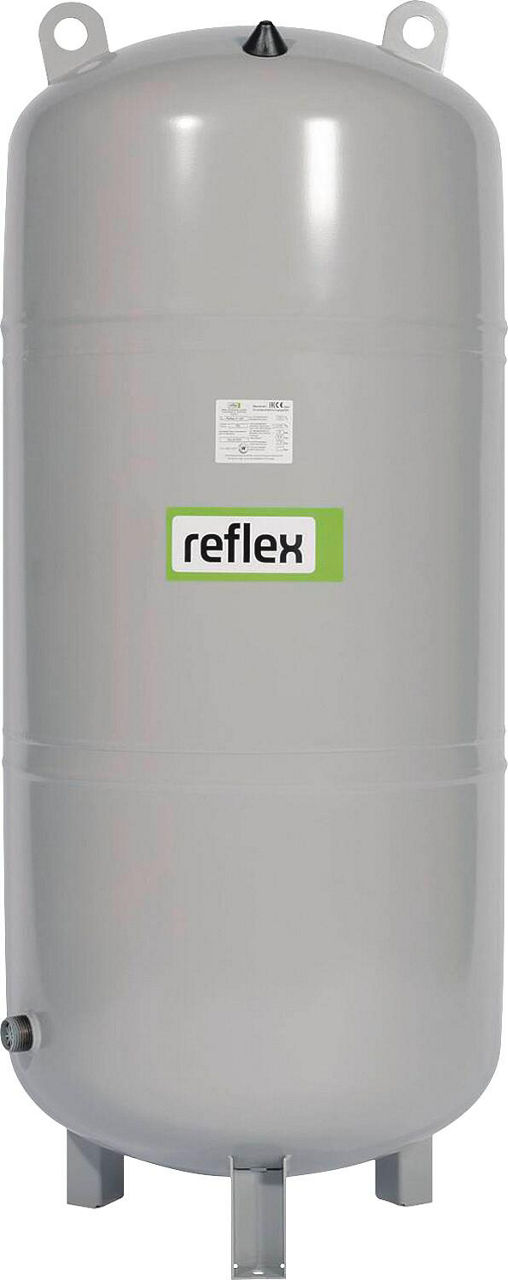

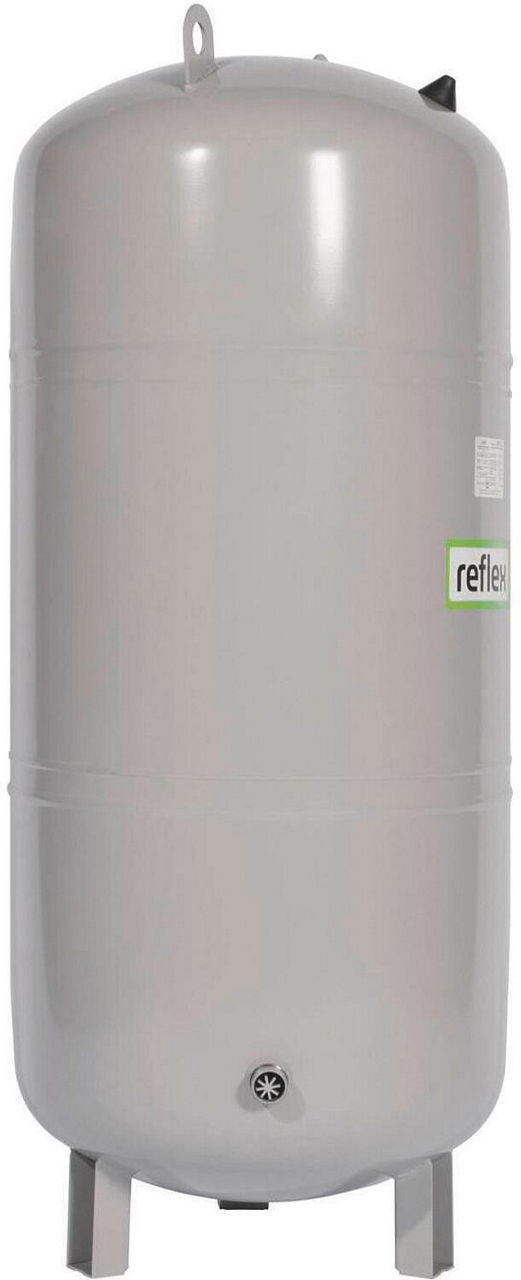

Reflex SL diaphragm expansion tank, grey

CHF 793.40 - CHF 1,045.35
/
Tax included

Select an option to add this to your cart.

Description

  • use in closed heating systems according to DIN EN 12828 and cooling systems
  • Pressure vessels according to Pressure Equipment Directive 2014/68/EU and DIN EN 13831
  • Slim design, ø 480 mm
  • High-quality butyl membranes
  • Durable epoxy coating

Technical Data

  • Non-replaceable semi-membrane according to DIN EN 13831
  • For antifreeze addition at least 25 to 50
  • Operating temperature range: -10°C to +70°C
  • Color: grey
Color grey
Version with feet
Height [mm] 220 L : 1386 · 280 L : 1716 · 320 L : 1946
Diameter [mm] 480
Max. fluid temperature (continuous operation) [°C] 70
Max. operating pressure [bar] 6
Medium Heating fill water
Thread DN 25 (1")
Pre-pressure [bar] 1,5
Connection DN 25 (1")
Housing material steel
Available variants
  • 220 L — 90 135 37
  • 280 L — 90 135 38
  • 320 L — 90 135 39
Data sheets
Vase d'expansion à membrane Reflex SL, gris
Reflex SL diaphragm expansion tank, grey
CHF 793.40 - CHF 1,045.35
220 L 90 135 37
CHF 793.40 /each
280 L 90 135 38
CHF 950.30 /each
320 L 90 135 39
CHF 1,045.35 /each
