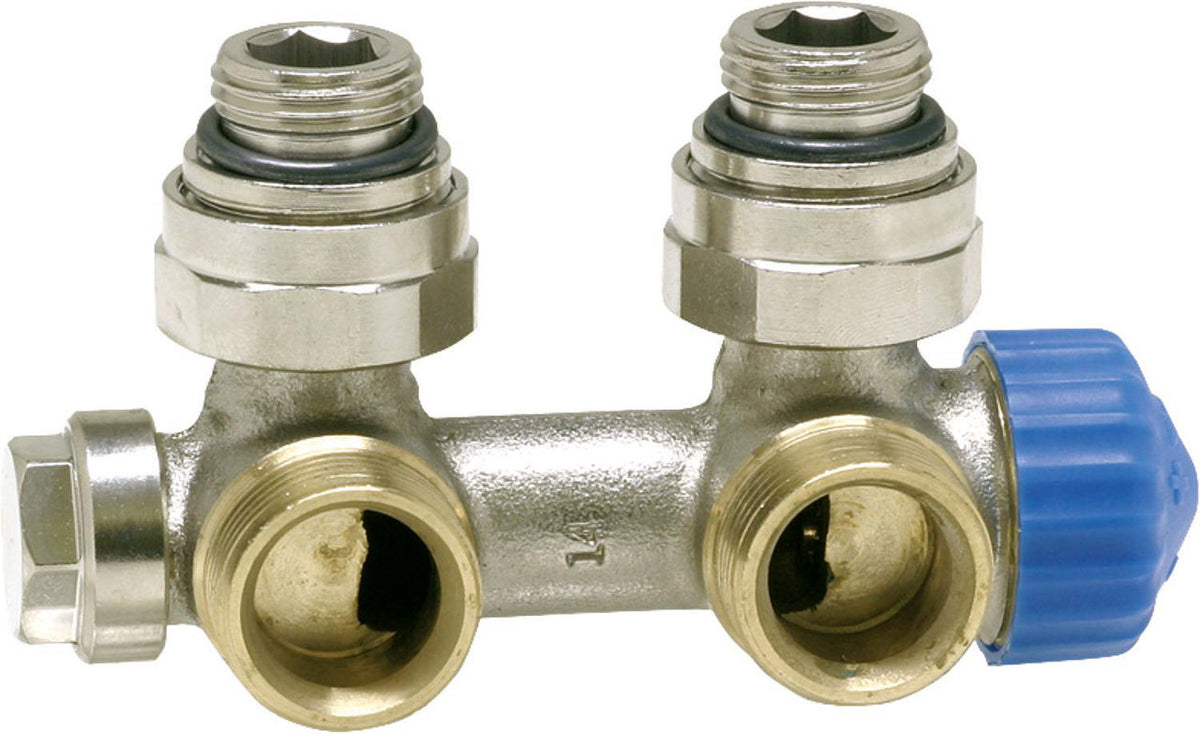

Vanne thermostatique IMI Multilux pour radiateur à raccordement central, monotube

IMI Multilux thermostatic valve for central connection, one-pipe radiator

CHF 64.95 - CHF 67.50

Tax included

Select an option to add this to your cart.

Template : Set square : Law

Thermostatic body for radiator
Center distance 50 mm
Nickel-plated bronze body without dezincification and corrosion-resistant
With Niro steel rod and double O-ring
The outer O-ring can be replaced without draining the system
Stop flow and return
Connection for draining and filling device
Selection of flow and return
Eurocone connection DN 20 (3/4"), in conjunction with a compression fitting for plastic, copper, steel
Permissible operating temperature: 120°C
With coating: 90°C
Permissible operating pressure: 10 bar
Main flow reduced by 35%
Blue protective cap
DN 15 (1/2") female

Color	nickel-plated
With design cover	No
With thermostatic heads	No
Suitable for two-pipe system	No
Suitable for one-pipe system	Yes
Center-to-center distance [mm]	50
Thermostatic head connection	M30 x 1.5
Presetting	Yes
Radiator connection	DN 15 (1/2")
Pipe connection size	DN 20 (3/4")
Material	bronze
Kvs value	0.9

Available variants

Model	Type	Reference
Angled	One-pipe system angled shape	90 108 79
Straight	One-pipe system straight passage	90 108 78
