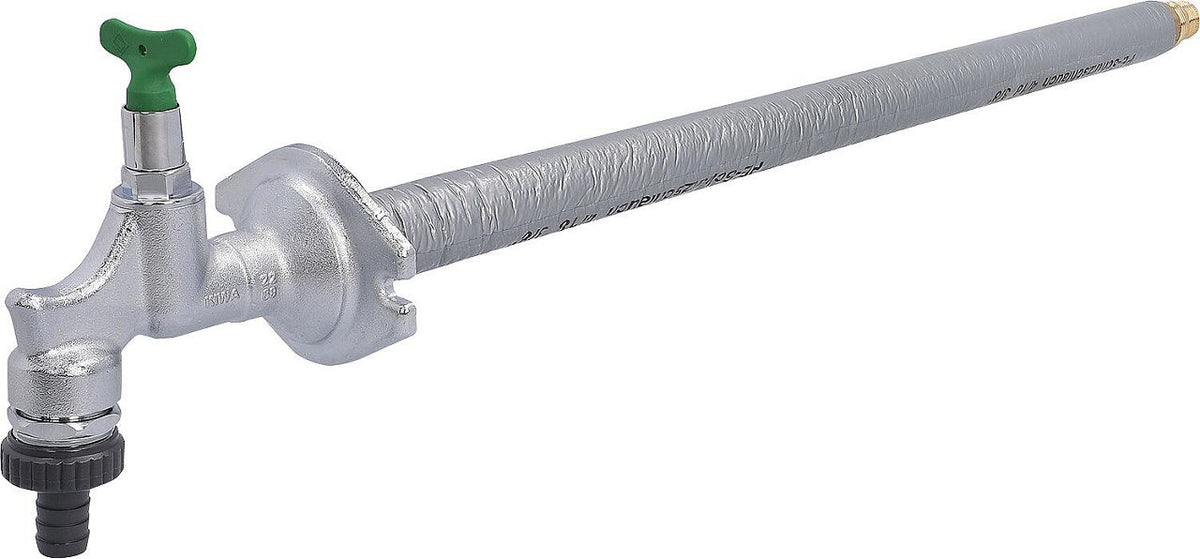

AIPS SEPP frost-proof outdoor wall valve with adjustable depth from 135 to 500 mm. Equipped with a volume compensator that eliminates the need to drain the pipe. With integrated vacuum breaker and non-return valve, pressure rating PN 10.
Features
- Adjustable installation depth from 135 to 500 mm
- Volume compensator: no pipe draining necessary
- Integrated vacuum breaker
- Integrated non-return valve
- Pressure rating PN 10
- Operated by a pipe key
- Chrome-plated head
- Brass body
- 1/2 inch inlet connection
- 3/4 inch external thread outlet connection
- Wall penetration diameter 34 mm
- With faceplate
- Automatic flow reduction
Technical Data
-
Manufacturer no.: 0201251
-
Brand: Aalberts
-
With vacuum breaker: Yes
-
With backflow preventer: Yes
-
With hose connection: Yes
-
Surface protection: chrome-plated
-
Operation: key
-
Material: brass
-
With mixing function for hot and cold water: No
-
Automatic flow reduction: Yes
-
Connection dimensions of the inlet: 1/2 inch
-
Wall thickness [mm]: 135 — 500
-
With anti-rotation lock: No
-
Diameter of the wall bushing [mm]: 34
-
With faceplate: Yes
-
Dimensions of the threaded connection spout (inch): 3/4 inch
-
Spout end: external thread
