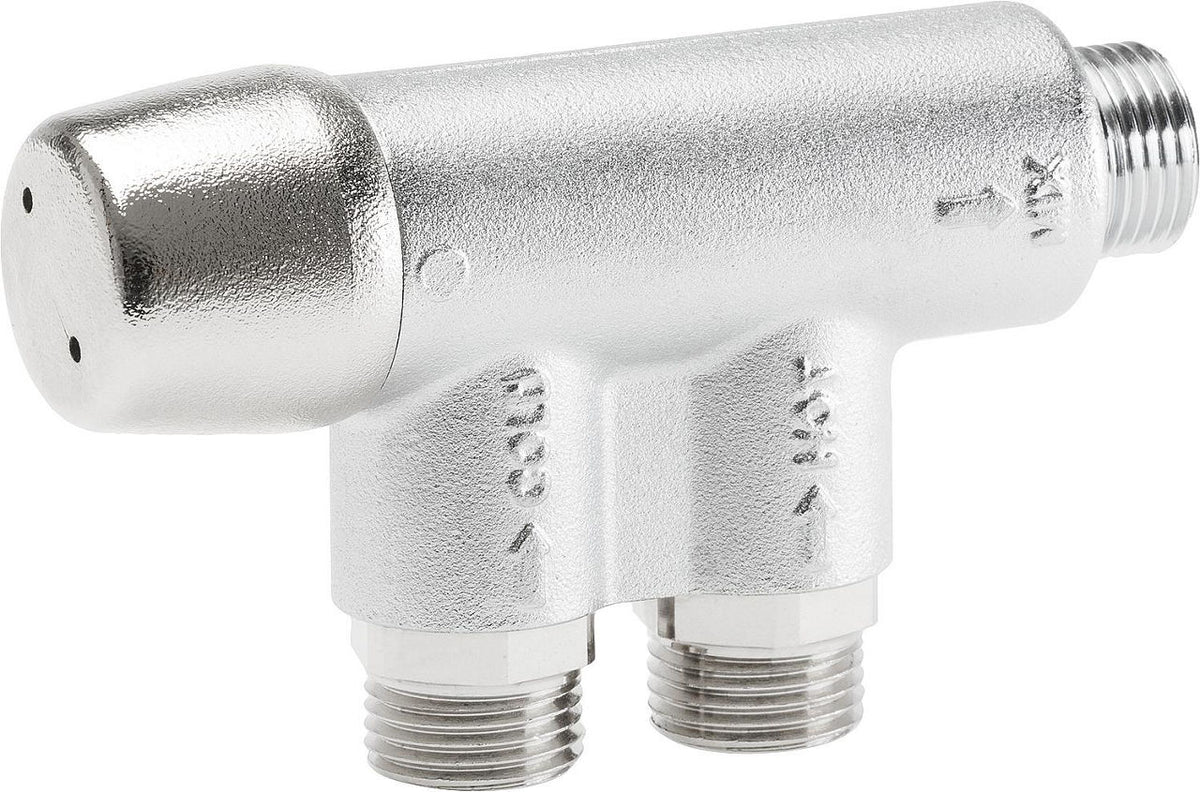

Taconova Novamix Compact 70 Thermostatic Mixing Valve, DN 15 (1/2"), Kvs 1.4

CHF 106.60
/
Tax included

Select an option to add this to your cart.

Description

  • Constant domestic hot water temperature at the tapping point
  • Non-stick coating of the valve housing to prevent limescale deposits
  • Anti-scald protection
  • Shut-off function in case of cold water shortage
  • Mounting position freely selectable
  • Non-return valve installed in cold and hot water connections

Technical features

  • Max. operating pressure: 10 bar
  • Min. operating pressure: 0.5 bar
  • Max. dynamic pressure: 5 bar
  • Max. operating temperature: 90 °C
  • Adjustment range: 30-70 °C
  • Flow rate: 25 l/min.
  • Kvs: 1.42
  • Size: DN 15 (1/2“) male
  • Material: Dezincification-resistant nickel-plated brass

Technical data

Manufacturer reference 252,6072.104
Brand taconova
Dynamic pressure [bar] 5
Max. inlet temperature [°C] 90
Max. pressure ratio 0.08402777777777777
Pressure level PN 10
Temperature adjustment range [°C] 30 to 70
Housing material brass
Medium water
Kvs value 1.42
Connection dimensions DN 15
Connections male thread
