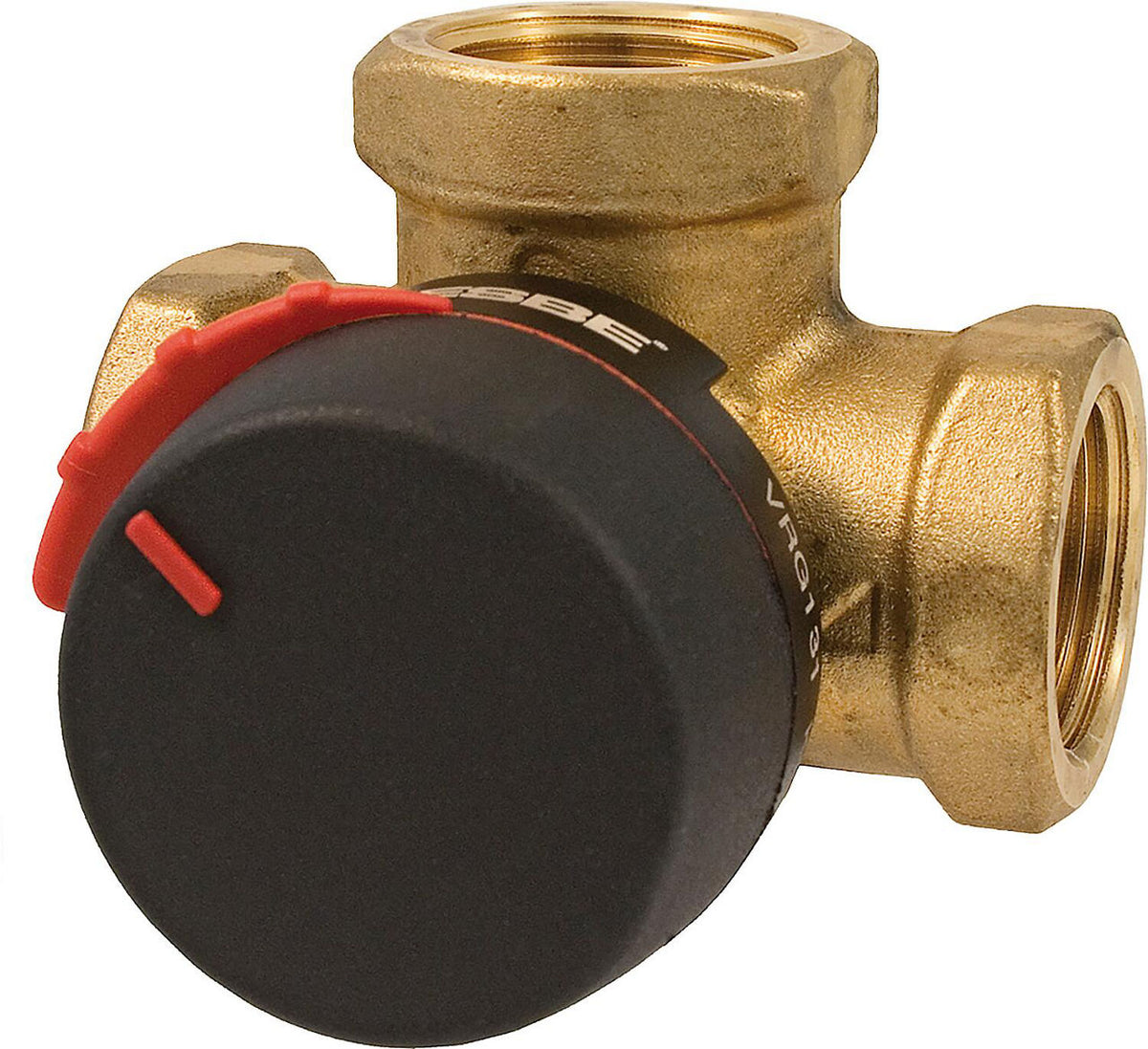

Vanne de mélange 3 voies ESBE VRG 131, filetage femelle
Vanne de mélange 3 voies ESBE VRG 131, filetage femelle
Vanne de mélange 3 voies ESBE VRG 131, filetage femelle

ESBE VRG 131 3-way mixing valve, female thread

CHF 70.45 - CHF 204.70
/
Tax included

Select an option to add this to your cart.

Description

  • For use as mixing or diverting valve.
  • Installation in conventional heating/cooling systems
  • Easy mounting of different mixer motors
  • Different mounting positions possible
  • Exceptional control accuracy due to very low leakage rate

Technical Data

  • Operating temperatures: -10°C to +130°C
  • Max. operating pressure: 10 bar
  • Leakage rate: 0.05 %
  • Torque:
  • DN 15-32: < 3 Nm
  • DN 40-50: < 5 Nm
  • Material: Body: dezincification-resistant DZR brass
  • Shaft and bushing: PPS composite
  • O-rings: EPDM
  • Rotation angle: 90
  • Fluids:
  • Water according to VDI2035
  • Glycol mixture max. 50
  • Ethanol mixture max. 28
  • Connections with female thread
Version three-way
Surface protection untreated
Pressure level PN 10
Max. fluid temperature (continuous operation) [°C] 130
Min. fluid temperature (continuous operation) [°C] -10
Torque [Nm] — according to reference
Housing material brass
Connections female thread
Rotation angle [°] 90
Leakage loss of Kvs value [%] 0.05
Available variants
Model Reference
DN 15 (1/2") · Kvs 1 90 121 08
DN 15 (1/2") · Kvs 1.6 90 121 09
DN 15 (1/2") · Kvs 2.5 90 121 10
DN 20 (3/4") · Kvs 2.5 90 121 12
DN 20 (3/4") · Kvs 4 90 121 13
DN 20 (3/4") · Kvs 6.3 90 121 14
DN 25 (1") · Kvs 6.3 90 121 15
DN 25 (1") · Kvs 10 90 121 16
DN 32 (1 1/4") · Kvs 16 90 121 17
DN 40 (1 1/2") · Kvs 25 90 121 18
DN 50 (2") · Kvs 40 90 121 19
Data sheets
Vanne de mélange 3 voies ESBE VRG 131, filetage femelle
ESBE VRG 131 3-way mixing valve, female thread
CHF 70.45 - CHF 204.70
DN 15 (1/2") · Kv 1 90 121 08
CHF 86.50 /each
DN 15 (1/2") · Cv 1.85 90 121 09
CHF 86.50 /each
DN 15 (1/2") · Kv 2.5 90 121 10
CHF 78.25 /each
DN 20 (3/4") · Kvs 2.5 90 121 12
CHF 70.45 /each
DN 20 (3/4") · Kvs 4 90 121 13
CHF 70.45 /each
DN 20 (3/4") · Kvs 6.3 90 121 14
CHF 70.45 /each
DN 25 (1") · Kv 6.3 90 121 15
CHF 73.35 /each
DN 25 (1") · Kvs 10 90 121 16
CHF 71.30 /each
DN 32 (1 1/4") · Kvs 16 90 121 17
CHF 83.90 /each
DN 40 (1 1/2") · Cv 28.9 90 121 18
CHF 130.50 /each
DN 50 (2") · Kvs 40 90 121 19
CHF 204.70 /each
Total:
