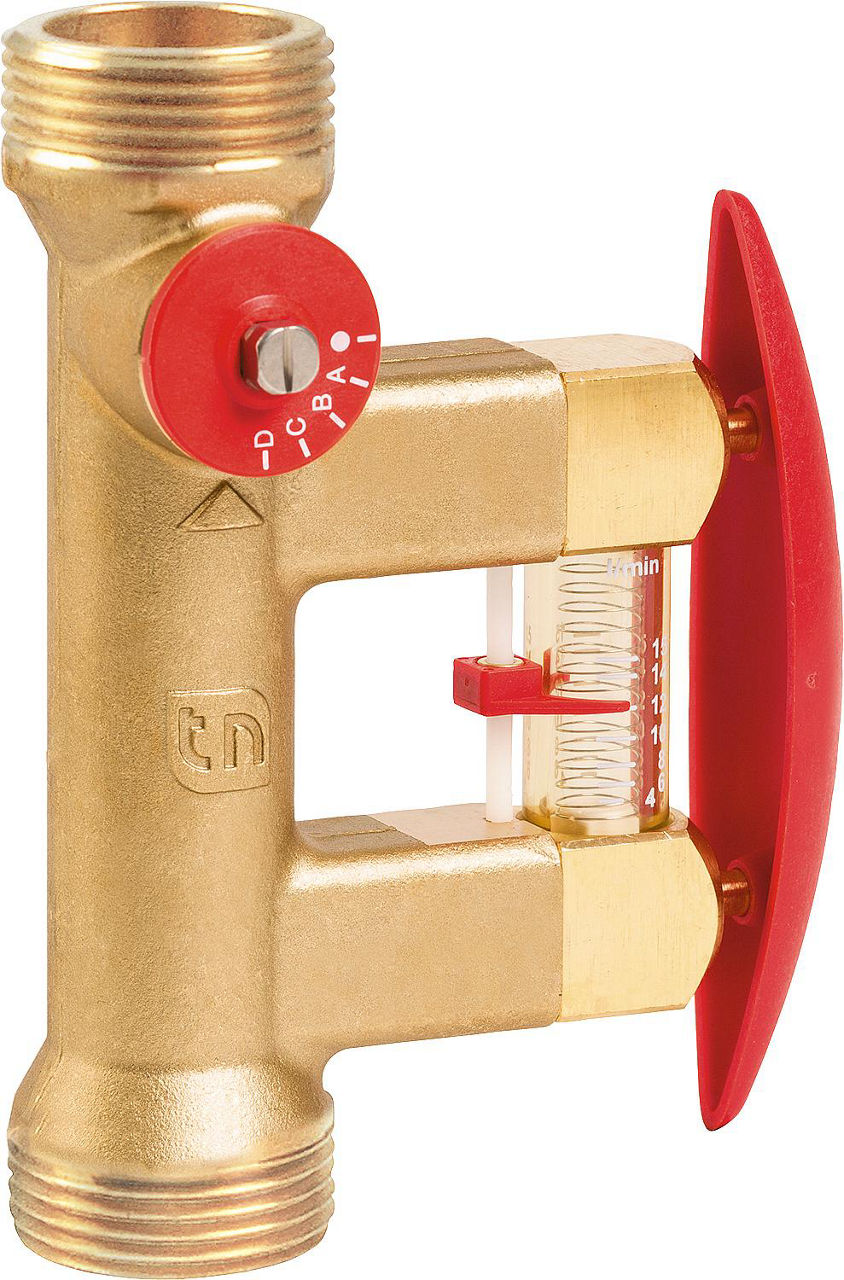

Taconova Tacosetter Bypass 100 balancing valve, male thread

CHF 166.95 - CHF 215.50
/
Tax included

Select an option to add this to your cart.

Description

  • Precise and fast regulation with scale, without the aid of diagrams, tables or measuring instruments
  • Direct reading of the set flow rate in l/min
  • Optional mounting position
  • Maintenance-free
  • Flow control via setpoint valve
  • Can be locked

Technical Data

  • Max. operating pressure: 10 bar
  • Max. operating temperature: 100°C
  • Material: brass
Nominal dimensions [mm] - according to reference
Thread - according to reference
Connection 1 male thread
Connection 2 male thread
Pressure level PN 10
Max. fluid temperature (continuous operation) [°C] 100
Housing material brass
Available variants
  • DN 25 (1") · Kvs 3.3 · 4-15 l/min — 90 033 10
  • DN 25 (1") · Kvs 5.0 · 8-30 l/min — 90 033 11
  • DN 32 (1 1/4") · Kvs 5.1 · 6-20 l/min — 90 033 12
  • DN 32 (1 1/4") · Kvs 8.1 · 10-40 l/min — 90 033 13
  • DN 40 (1 1/2") · Kvs 17.0 · 20-70 l/min — 90 033 14
Data sheets
Vanne d'équilibrage Taconova Tacosetter Bypass 100, filetage mâle
Taconova Tacosetter Bypass 100 balancing valve, male thread
CHF 166.95 - CHF 215.50
DN 25 (1") · Kvs 3.3 · 4-15 l/min 90 033 10
CHF 166.95 /each
DN 25 (1") · Kvs 5.0 · 8-30 l/min 90 033 11
CHF 166.95 /each
DN 32 (1 1/4") · Kvs 5.1 · 6-20 l/min 90 033 12
CHF 176.05 /each
DN 32 (1 1/4") · Kvs 8.1 · 10-40 l/min 90 033 13
CHF 176.05 /each
DN 40 (1 1/2") · Kvs 17.0 · 20-70 l/min 90 033 14
CHF 215.50 /each
