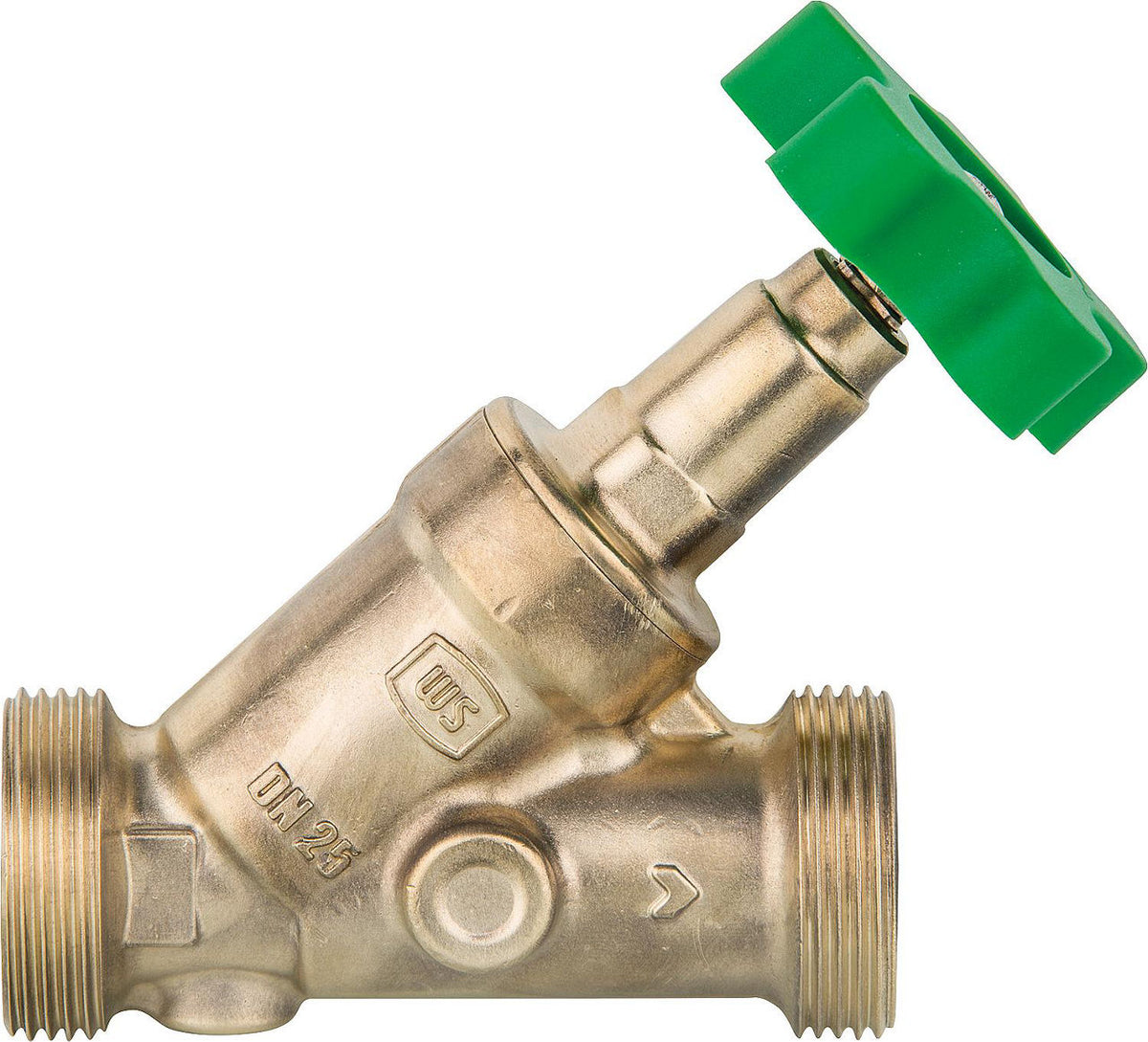

Vanne à passage direct WS en laiton à sertir, sans vidange
Vanne à passage direct WS en laiton à sertir, sans vidange
Vanne à passage direct WS en laiton à sertir, sans vidange

WS full bore brass press valve, non-drainable

CHF 14.85 - CHF 28.30
/
Tax included

Select an option to add this to your cart.

Features

  • Complies with UBA positive list for drinking water
  • Operating temperature: max. +90° C
  • Max. pressure: 10 bar
  • Seal: EPDM
  • Material: Press brass
  • With grease chamber spindle
  • With non-rising spindle
  • Without dead space
  • With flat sealing male thread

Technical data

  • Installation length [mm]: 78
  • Connection: DN 20 (3/4")
  • Direct passage: yes
  • Surface protection: untreated
  • FE connection: DN 20 (3/4")
  • Connection 1: Male thread
  • Connection 2: Male thread
  • Spring-closed (NC): no
  • Body material: Brass
  • Size: DN 15 (1/2")
  • Seal: Rubber
  • Max. fluid temperature (continuous operation) [°C]: 90
  • Actuation: Handwheel
  • Suitable for liquids: yes
  • Max. operating pressure [bar]: 10
  • Nominal diameter: 1/2 inch (15)
  • DVGW certified: yes
  • Spring-open (NO): no
Available variants
  • SKU 93 009 40 : 1/2"
  • SKU 93 009 41 : 3/4"
  • SKU 93 009 42 : 1"
Vanne à passage direct WS en laiton à sertir, sans vidange
WS full bore brass press valve, non-drainable
CHF 14.85 - CHF 28.30
Vanne à passage direct WS en laiton à sertir, sans vidange
1/2 in. 93 009 40
CHF 14.85 /each
Vanne à passage direct WS en laiton à sertir, sans vidange
3/4 in. 93 009 41
CHF 18.60 /each
Vanne à passage direct WS en laiton à sertir, sans vidange
1" 93 009 42
CHF 28.30 /each
Total:
