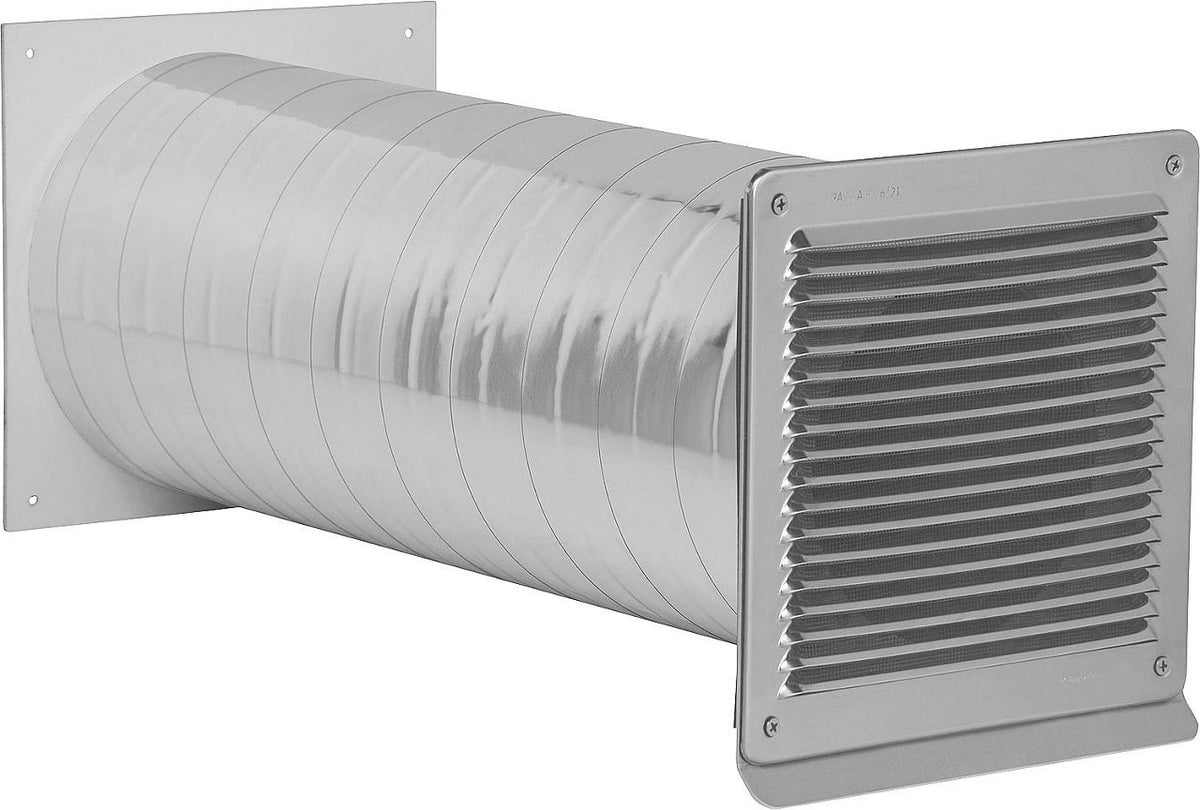

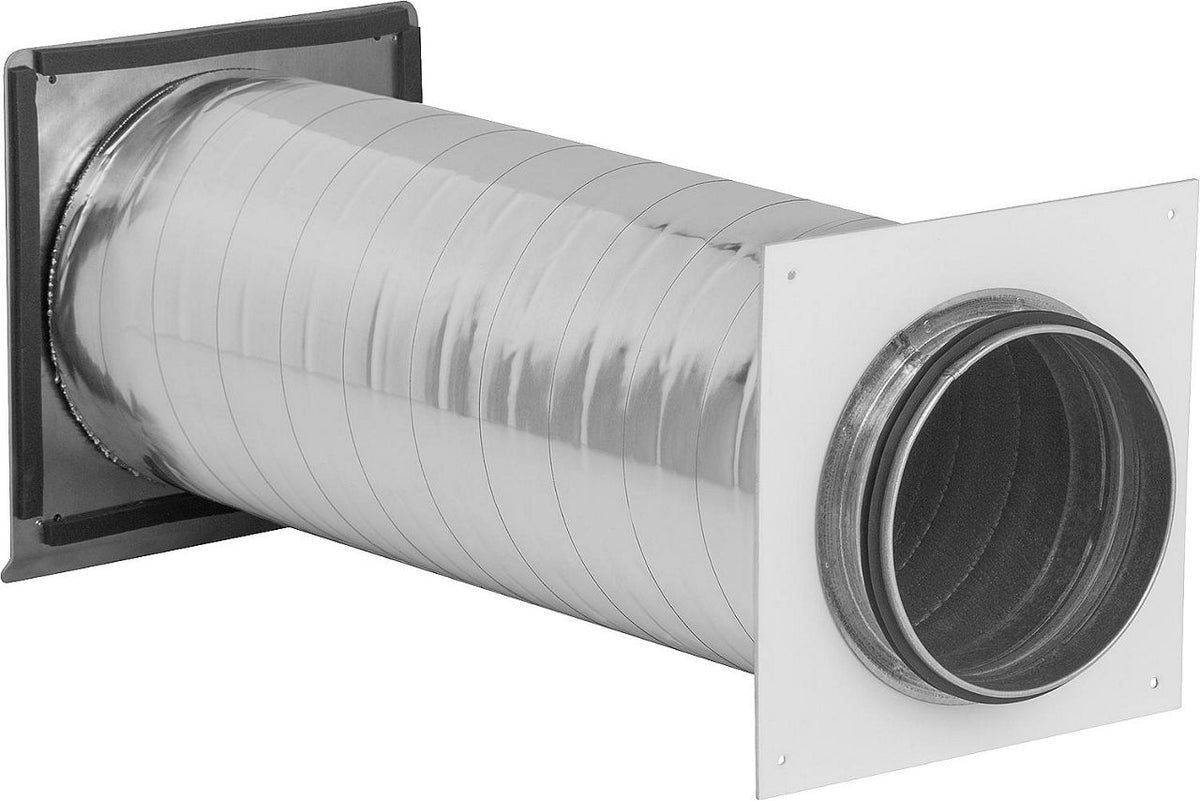

Insulated Isoflexa wall crossing with stainless steel exterior grille

CHF 144.15 - CHF 336.65
/
Tax included

Select an option to add this to your cart.

Description

  • Diffusion-tight, aluminium-coated, expanded polyethylene pipe for versatile use in ventilation technology, e.g., as an exhaust air and outdoor air system, or as an air supply and exhaust pipe for heating and ventilation systems, heat pumps, kitchen exhaust, etc.
  • Leak-proof and simple connection with connector with lip seal and aluminum adhesive tape
  • High thermal and sound insulation
  • High protection against condensation
  • Ozone and UV resistant
  • Meets the requirements of DIN 1946-6, VDI 6022
  • Insulation thickness: 20 mm
  • Foam tube material: Extruded PE, biobutane
  • Coating material: Aluminum/PET
  • Thermal conductivity: 0.038 W/mK
  • Operating temperature: -30 °C to +80 °C
  • Fire class: DIN 4102-1, flame-retardant
  • Can be used for incoming or outgoing air
  • Scope of delivery:
  • Insulation tube, length: 500 mm
  • Cover: Polished V2A
  • Inner cover: Plastic
  • Connector with flange

Technical data

Insulated Yes
Available variants
Model Reference
Nominal diameter 125 mm 98 012 27
Nominal diameter 150 mm 98 012 28
Nominal diameter 160 mm 98 012 29
Nominal diameter 200 mm 98 016 90
Data sheets
Traversée de mur isolée Isoflexa avec grille extérieure inox
Insulated Isoflexa wall crossing with stainless steel exterior grille
CHF 144.15 - CHF 336.65
Nominal diameter 125 mm 98 012 27
CHF 144.15 /each
Nominal diameter 150 mm 98 012 28
CHF 150.65 /each
Nominal diameter 160 mm 98 012 29
CHF 158.05 /each
Nominal diameter 200 mm 98 016 90
CHF 336.65 /each
