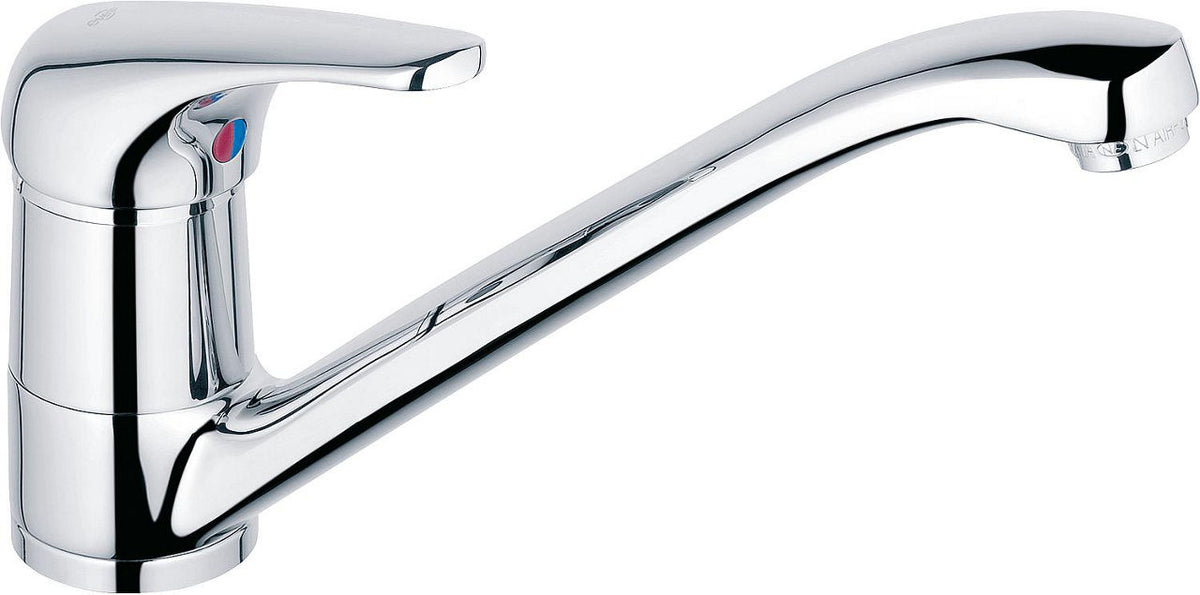

TOP II Sink Mixer with Swivel Cast Spout

CHF 71.20 - CHF 79.75
/
Tax included

Select an option to add this to your cart.

Single-lever mixer for sink from the TOP II series by evenes. Chromed brass body with a swivel cast spout with a projection of 250 mm. Available in high-pressure and low-pressure (water heater) versions.

Features

  • Single-lever sink mixer
  • Chromed brass body
  • Swivel cast spout
  • 250 mm projection
  • Quality chrome finish
  • Available in high-pressure and low-pressure versions

Technical data

Number of holes for taps 1 hole
Table bore [mm] 35
Trendy color none
Spout type Aerator
Brand Evenes
Surface protection chromed
Mounting type Plate/Tap hole
Surface treatment polished
Protected against backflow No
With shut-off valve for connecting external appliances No
Spout height [mm] 119
Closing mechanism Ceramic cartridge
Extendable spout with aerator No
Swivel range [°] 360
Touch function No
Adjustable temperature limitation Yes
Projection [mm] 250
Foldable No
With chain eyelet No
Suitable for instantaneous water heaters No
Cool body No
Separate outlet for filtered water No
With sensor No
Quantity limitation, variably adjustable Yes
Height [mm] 147
Material brass
Low pressure High pressure, swivel spout 250 mm, chrome: No · Low pressure, swivel spout 250 mm, chrome: Yes
Base color Chrome look (glossy)
Outlet version swivel
With displacement unit No
Control Lever
Insulated water pipe No
With escutcheons No
Control lever above
Connection dimensions 3/8 inch
Flow rate at 3 bar [l/min] High pressure, swivel spout 250 mm, chrome: 16.7 · Low pressure, swivel spout 250 mm, chrome: 10.9
Water saving position No
Extendable spout with hand shower No
Gooseneck Yes
Connection Hose (screw connection)
With hot water saving function No

Available variants

  • SKU 93 208 08 : Sink mixer Top II cast swivel spout 250 mm chrome
  • SKU 93 208 09 : Sink mixer Top II low pressure cast swivel spout 250 mm chrome
