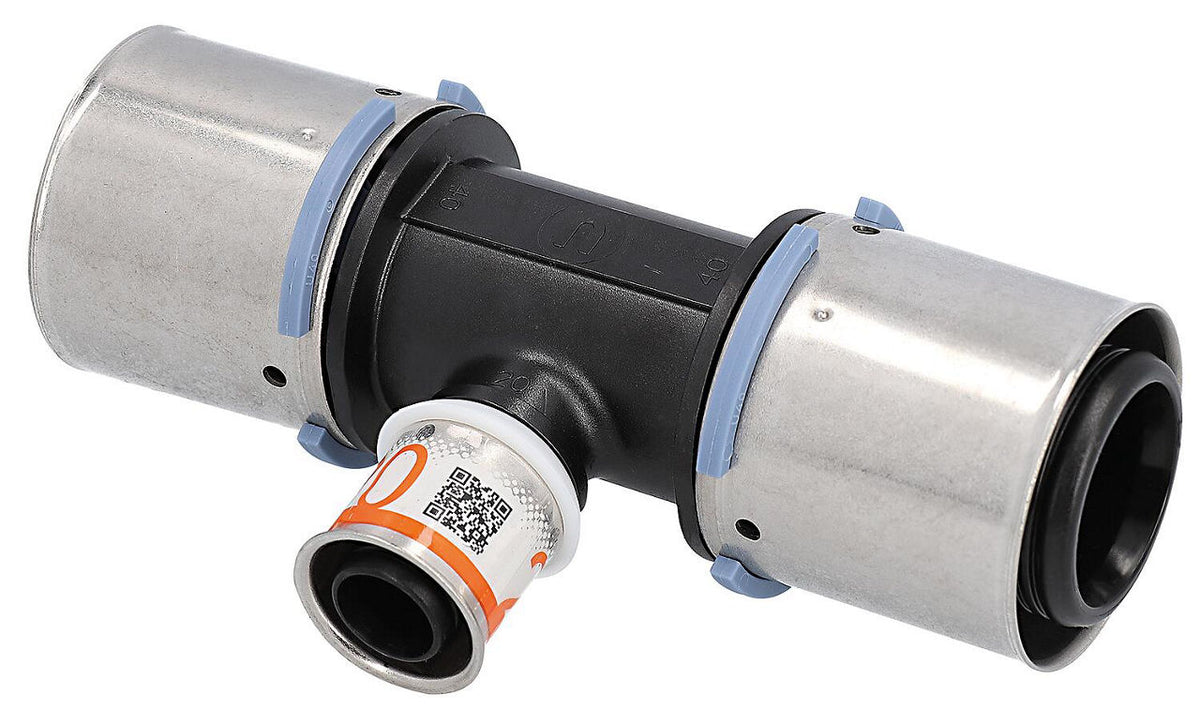

Té inégal à sertir Uponor S-Press avec réduction médiane PPSU
Té inégal à sertir Uponor S-Press avec réduction médiane PPSU
Té inégal à sertir Uponor S-Press avec réduction médiane PPSU

Uponor S-Press PPSU Equal Tee with Medium Reduction

CHF 51.20
/
Tax included

Select an option to add this to your cart.

Crimp tee fitting with reduction for Uponor S-Press PLUS system, suitable for plumbing and heating. Maximum drinking water temperature: 70°C / 10 bar. Maximum heating water temperature: 80°C / 10 bar.

Features

  • Uponor S-Press PLUS crimp connection system
  • Unequal tee with central reduction
  • Plumbing and heating use
  • Drinking water: max. temperature 70°C, max. pressure 10 bar
  • Heating water: max. temperature 80°C, max. pressure 10 bar
  • Available in several diameter combinations from Ø16mm to Ø32mm

Technical data

Number of connections 3
Brand Uponor
Connection 1 Pressed sleeve
DVGW Seal Yes
Suitable for drinking water according to the UBA positive list Yes
Connection 2 Pressed sleeve
Dimensions Ø40 mm - Ø20 mm - Ø40 mm : 40 x 4.0 – 20 x 2.25 – 40 x 4.0 mm · Ø40 mm - Ø25 mm - Ø40 mm : 40 x 4.0 – 25 x 2.5 – 40 x 4.0 mm · Ø40 mm - Ø32 mm - Ø32 mm : 40 x 4.0 – 32 x 3.0 – 32 x 3.0 mm · Ø40 mm - Ø32 mm - Ø40 mm : 40 x 4.0 – 32 x 3.0 – 40 x 4.0 mm
Length [mm] Ø40 mm - Ø20 mm - Ø40 mm : 136 · Ø40 mm - Ø25 mm - Ø40 mm : 136 · Ø40 mm - Ø32 mm - Ø32 mm : 126 · Ø40 mm - Ø32 mm - Ø40 mm : 136
Execution T-piece
Max. fluid temperature (continuous operation) [°C] 80
Connection 3 Pressed sleeve
With flat seal No
Conical No
Max. working pressure [bar] 10
Available variants
  • SKU 90 176 22 : Ø40 mm - Ø20 mm - Ø40 mm
  • SKU 90 176 24 : Ø40 mm - Ø25 mm - Ø40 mm
  • SKU 90 176 25 : Ø40 mm - Ø32 mm - Ø32 mm
  • SKU 90 176 26 : Ø40 mm - Ø32 mm - Ø40 mm
Technical data sheets
Té inégal à sertir Uponor S-Press avec réduction médiane PPSU
Uponor S-Press PPSU Equal Tee with Medium Reduction
CHF 51.20
Té inégal à sertir Uponor S-Press avec réduction médiane PPSU
Ø40 mm - Ø20 mm - Ø40 mm 90 176 22
CHF 51.20 /each
Té inégal à sertir Uponor S-Press avec réduction médiane PPSU
Ø40 mm - Ø25 mm - Ø40 mm 90 176 24
CHF 51.20 /each
Té inégal à sertir Uponor S-Press avec réduction médiane PPSU
Ø40 mm - Ø32 mm - Ø32 mm 90 176 25
CHF 51.20 /each
Té inégal à sertir Uponor S-Press avec réduction médiane PPSU
Ø40 mm - Ø32 mm - Ø40 mm 90 176 26
CHF 51.20 /each
