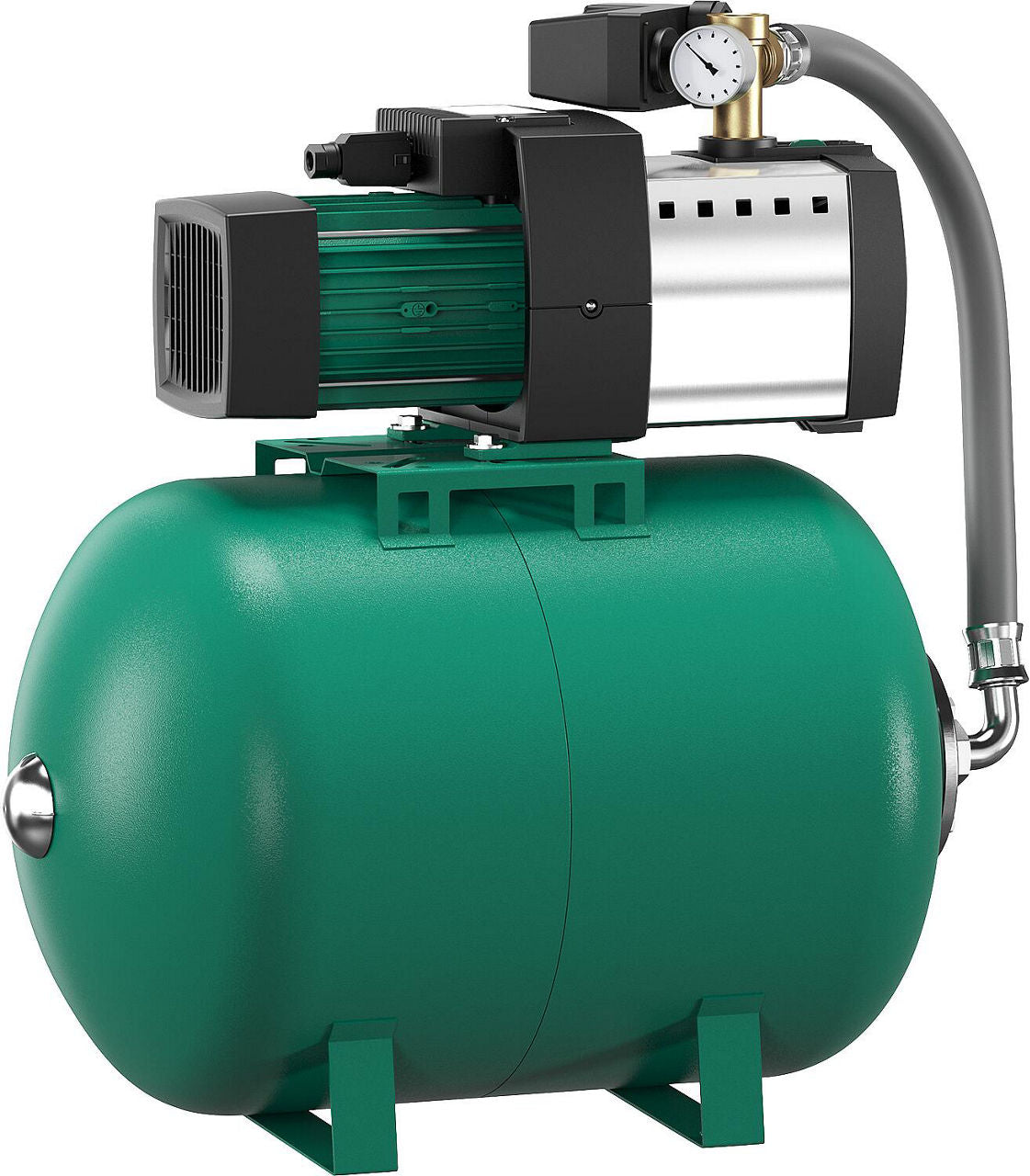

Wilo HiMulti 3H Domestic Booster Pump (with pressure switch)

Features

• Silent and energy-saving
• Suction and discharge connection: DN 25 (1") internal thread
• Voltage: 230 V, 50 Hz
• Max. fluid temperature: 40°C
• Suction height: 8.5 m
• Discharge connection: DN 25 (1")
• With connection cable
• <table style="width: 387px; height: 165px;" border="0">
• <tbody>
• <tr>
• <td rowspan="1" colspan="1"><b>Type</b></td>
• <td rowspan="1" colspan="1"></td>
• <td style="text-align: center;" rowspan="1" colspan="1"><b>3H50-24 P</b></td>
• <td style="text-align: center;" rowspan="1" colspan="1"><b>3H50-25 P</b></td>
• </tr>
• <tr>
• <td rowspan="1" colspan="1">Max. rated power:</td>
• <td rowspan="1" colspan="1">W</td>
• <td style="text-align: center;" rowspan="1" colspan="1">640</td>
• <td style="text-align: center;" rowspan="1" colspan="1">730</td>
• </tr>
• <tr>
• <td rowspan="1" colspan="1">Max. flow rate:</td>
• <td rowspan="1" colspan="1">l/h</td>
• <td style="text-align: center;" rowspan="1" colspan="1">4500</td>
• <td style="text-align: center;" rowspan="1" colspan="1">4500</td>
• </tr>
• <tr>
• <td rowspan="1" colspan="1">Max. discharge head:</td>
• <td rowspan="1" colspan="1">m</td>
• <td style="text-align: center;" rowspan="1" colspan="1">40</td>
• <td style="text-align: center;" rowspan="1" colspan="1">50</td>
• </tr>
• <tr>
• <td rowspan="1" colspan="1">Max. pressure:</td>
• <td rowspan="1" colspan="1">bar</td>
• <td style="text-align: center;" rowspan="1" colspan="1">4</td>
• <td style="text-align: center;" rowspan="1" colspan="1">5</td>
• </tr>
• <tr>
• <td rowspan="1" colspan="1">Weight:</td>
• <td rowspan="1" colspan="1">kg</td>
• <td style="text-align: center;" rowspan="1" colspan="1">25</td>
• <td style="text-align: center;" rowspan="1" colspan="1">27.1</td>
• </tr>
• <tr>
• <td rowspan="1" colspan="1">Diaphragm tank:</td>
• <td rowspan="1" colspan="1">l</td>
• <td style="text-align: center;" rowspan="1" colspan="1">50</td>
• <td style="text-align: center;" rowspan="1" colspan="1">50</td>
• </tr>
• </tbody>
• </table>

Technical data

• Rotational speed [rpm]: 2900
• Overall length [mm]: 645
• Protection class (IP): IPX4
• Diaphragm tank [l]: 50
• Pressure class: PN 8
• Body material: Plastic
• Frequency: 50 Hz
• Max. flow rate [l/h]: 4500
• Supply voltage: 1 x 230 V
• Nominal diameter: 1 inch (25)
