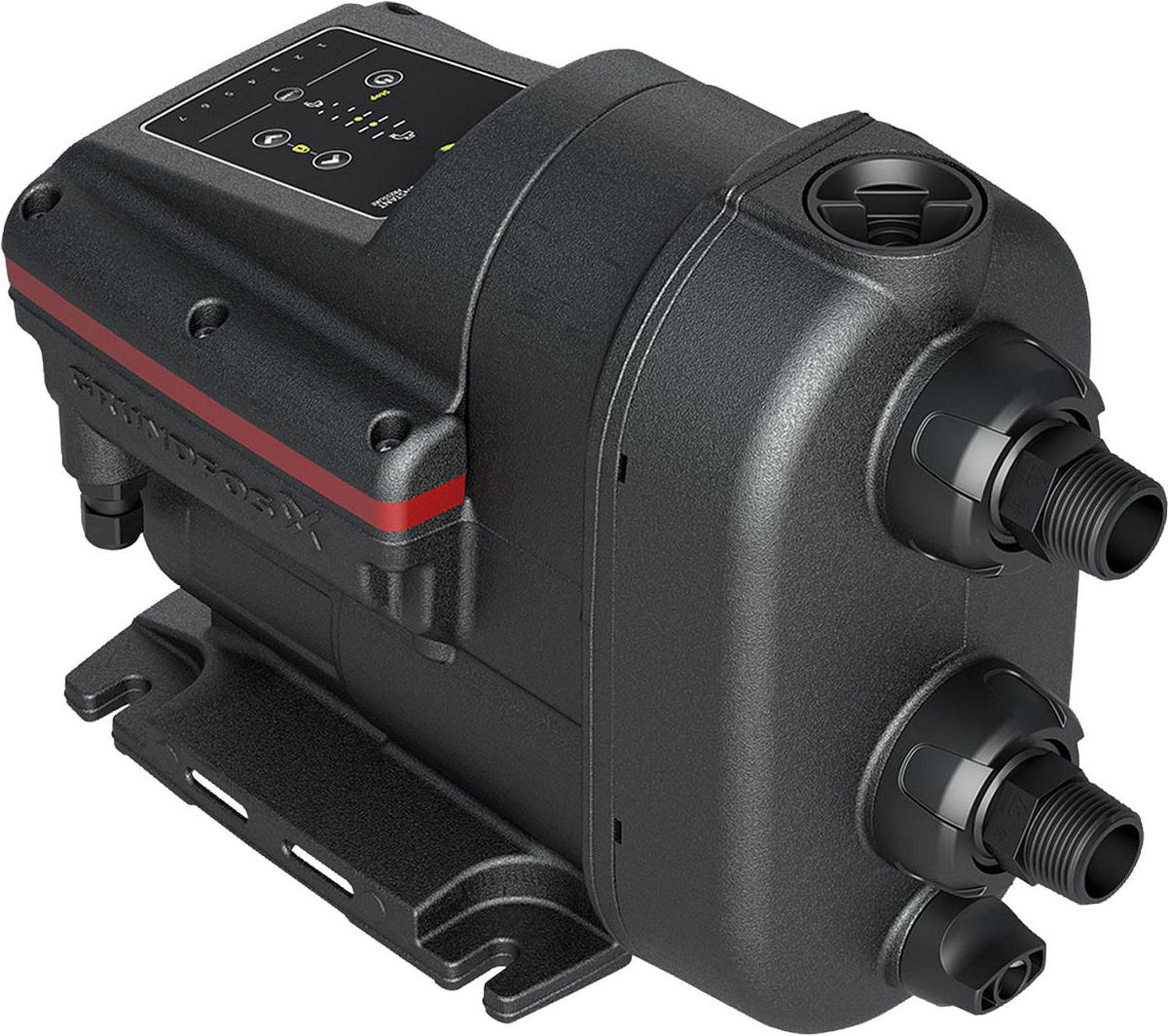

Grundfos SCALA2 3-45 230 V Domestic Booster Pump

CHF 698.40
/
Tax included

Select an option to add this to your cart.

Characteristics

  • Centrifugal pump
  • Suction and discharge connection: DN 25 (1")
  • Voltage: 230 V, 50 Hz
  • Max fluid temperature: 45° C
  • Suction lift: 8.0 m
  • With 1.5 m connection cable and Schuko plug
  • Self-priming booster set with adjustable constant pressure
  • Integrated frequency converter
  • Automatic start and stop via electronic pressure switch
  • Dry-running protection
  • Integrated diaphragm tank
  • Can be used for direct outdoor installation in frost-free areas
  • Thanks to its intelligent regulation, the SCALA 2 adapts its flow rate to actual needs

Technical data

  • Drive type: electric
  • Protection class (IP): IPX4
  • Casing material: Plastic
  • Max. fluid temperature (continuous operation) [°C]: 45
  • Frequency: 50 Hz
  • Max. flow rate [l/h]: 5000
  • Max. pressure [bar]: 4.5
  • Supply voltage: 1 x 230 V
  • Type: SCALA2 3-45
  • Max. nominal power [W]: 550
  • Max. operating pressure [bar]: 10
  • Motor input power (P1) [kW]: 0.55
  • Connection: Female thread
Technical data sheets
