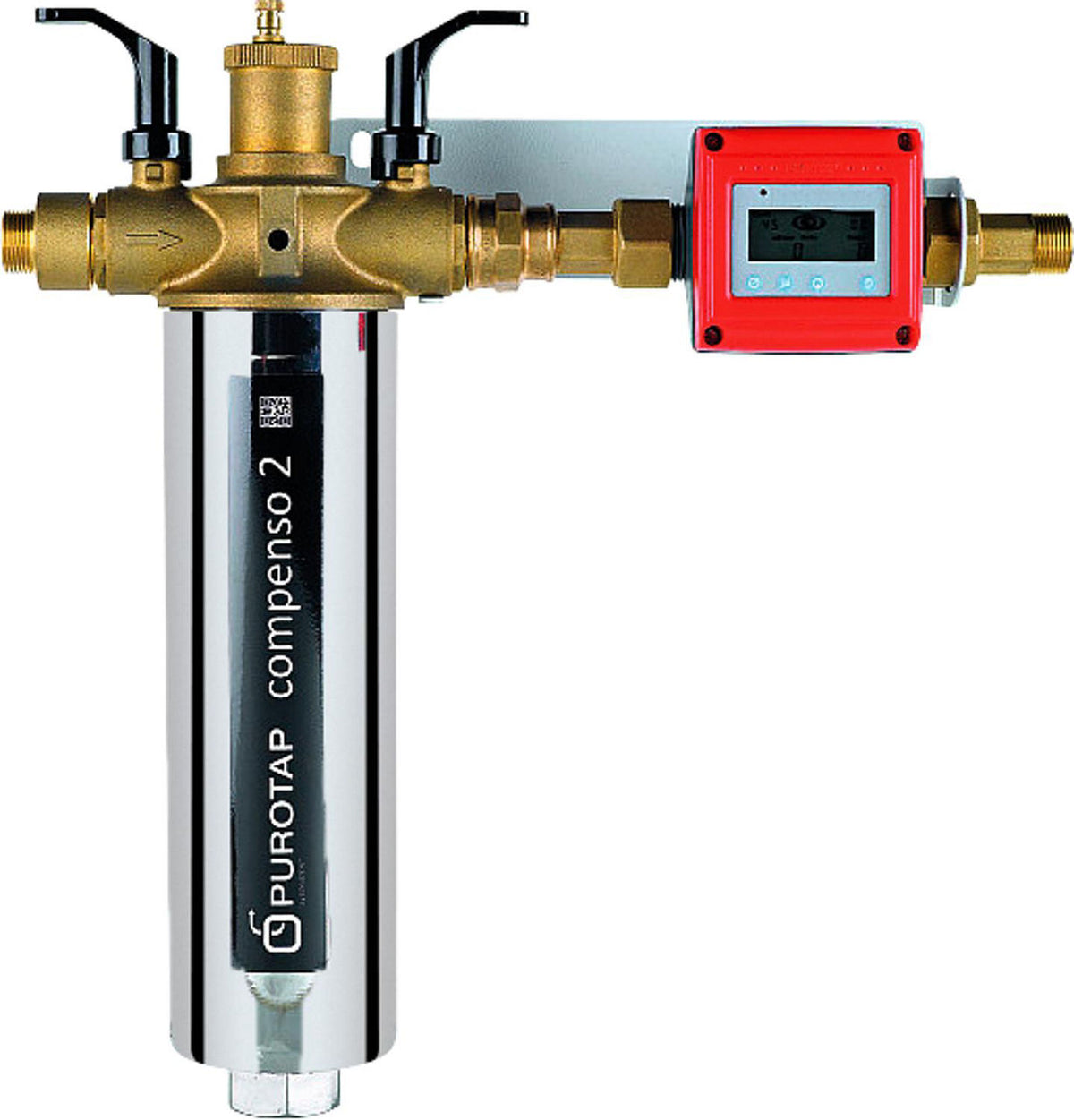

Purotap Compenso 2 Fixed Filling Station

CHF 1,029.85
/
Tax included

Select an option to add this to your cart.

Description

  • For the production of (demineralized) water in heating circuits
  • Simple replacement of used resin
  • Constant monitoring with the measuring meter (conductivity value/flow rate)
  • Compliant with standards: VDI 2035, DIN50930, SWKI BT102-01, Ö-Norm H5195
  • For mobile and stationary filling

Technical Data

  • Max. operating pressure: 6 bar
  • Max. water temperature: 60°C
  • Connection thread: DN 20 (3/4") male
  • Chromed steel housing
  • Multifunction brass head with ball valve
  • Capacity: 2.5 m³/1° dH per resin refill
  • Flow rate: 2.5 l/min
  • Resin filling 1.75 Kg
  • Measuring meter and ion exchange resin included
Manufacturer Part Number 100864
Brand Elysator
Connection size [DN] 20
Capacity at 10° dH [m³] 0.25
Capacity at 1° dH [m³] 2.5
Height [mm] 460
Weight [kg] 5
Max. operating temperature [°C] 60
Max. operating pressure [bar] 6
Material stainless steel
Max. flow rate [m³/h] 0.15
Resin content [l] 1.75
Technical data sheets
