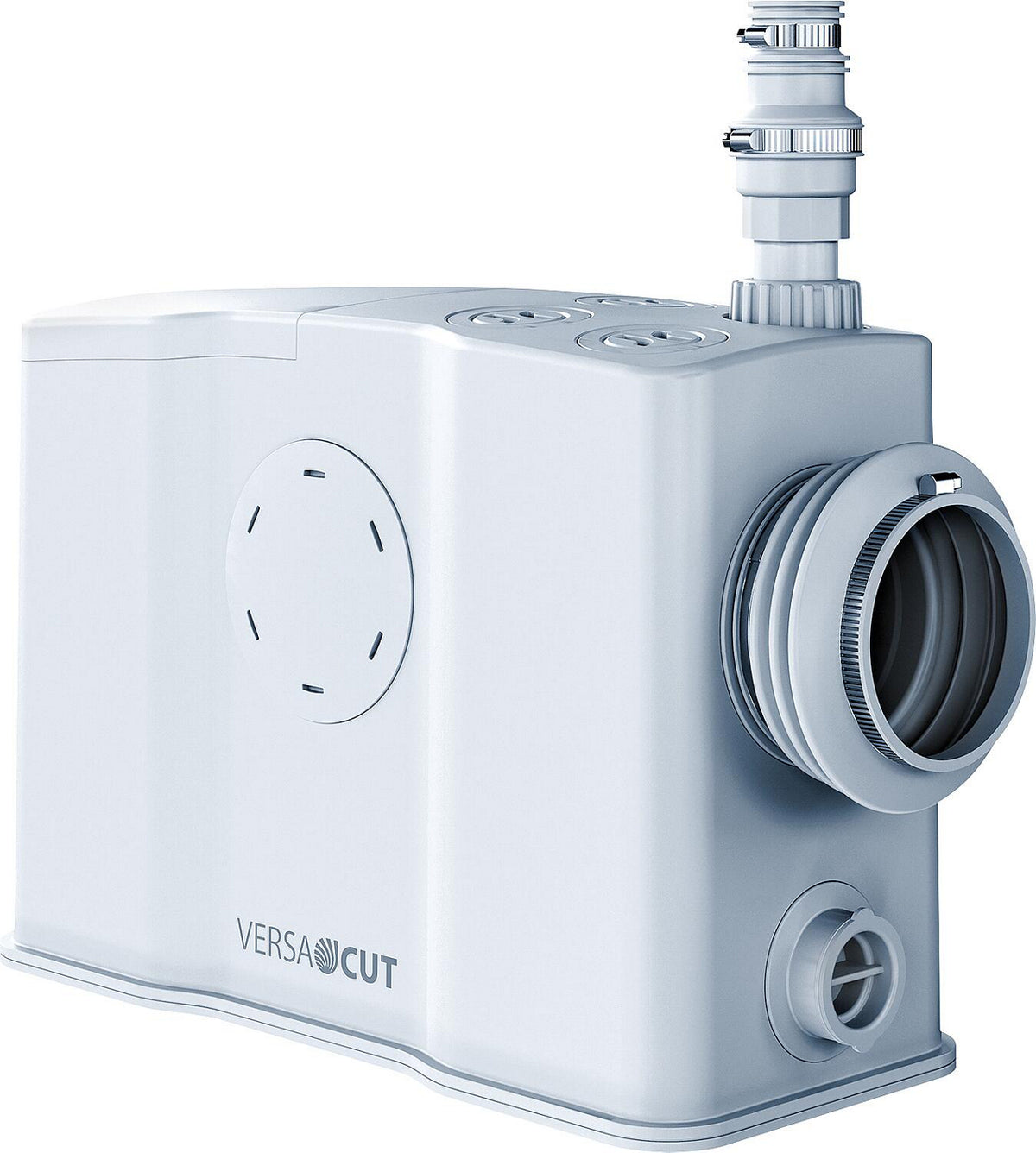

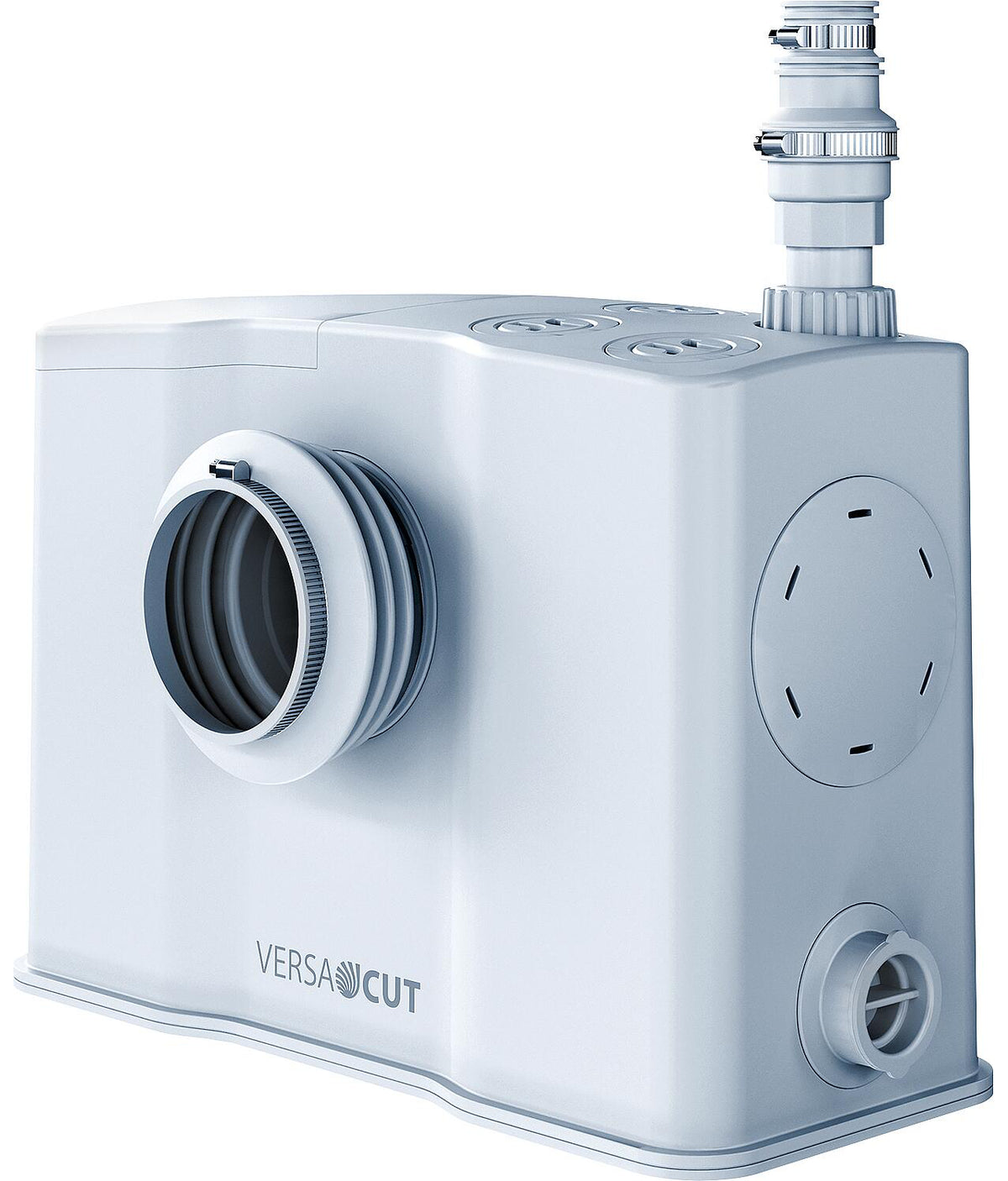

Station de relevage Zehnder Versacut 2 en 1 avec broyeur (raccordement direct ou montage sur bâti-support)
Station de relevage Zehnder Versacut 2 en 1 avec broyeur (raccordement direct ou montage sur bâti-support)
Zehnder Versacut 2-in-1 lifting station with macerator (direct connection or pre-wall mounting)
Zehnder Versacut 2-in-1 lifting station with macerator (direct connection or pre-wall mounting)
Station de relevage Zehnder Versacut 2 en 1 avec broyeur (raccordement direct ou montage sur bâti-support)
Zehnder Versacut 2-in-1 lifting station with macerator (direct connection or pre-wall mounting)
Zehnder Versacut 2-in-1 lifting station with macerator (direct connection or pre-wall mounting)

Zehnder Versacut 2-in-1 lifting station with macerator (direct connection or pre-wall mounting)

CHF 692.05
/
Tax included

Select an option to add this to your cart.

Features

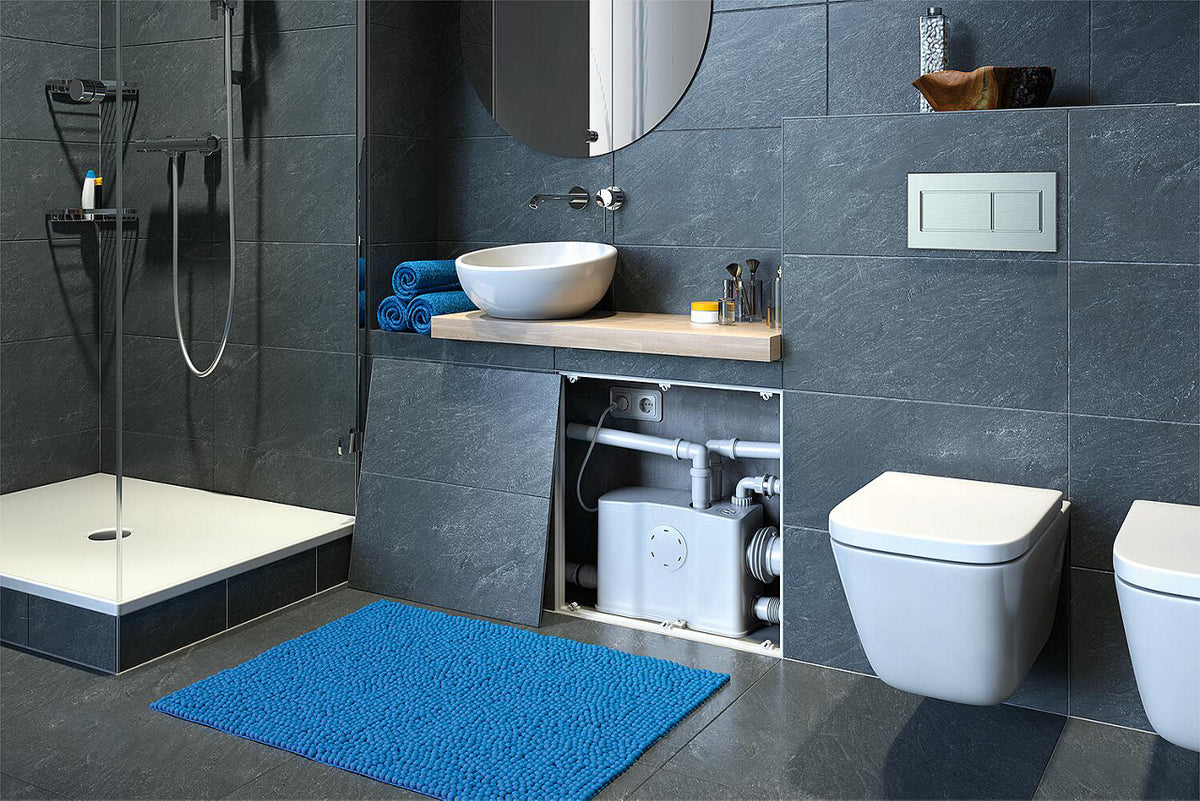

  • 2-in-1 compact lifting station: connection of a floor-standing or wall-hung WC with pre-wall installation
  • Suitable for a WC, washbasin, shower or bidet
  • Ready to plug in
  • With high-performance macerator
  • Integrated alarm signal in case of fault
  • Potential-free contact
  • Ventilation via activated carbon filter
  • Fluid temperature: max. 40 °C (60 °C temporarily)
  • 2 side inlets and 2 inlets on the tank lid
  • Nominal power: 500 W
  • Max. flow rate: 7,000 l/h
  • Max. discharge head: 7.0 m
  • Voltage: 230 V, 50 Hz
  • Discharge connection: DN 32 (1 1/4")

Technical data

  • Brand : Zehnder
  • Manufacturer number : 24005
  • EAN : 4014440240052
  • Motor power consumption (P1) [W] : 500
  • Rated current [A] : 2.3
  • Supply voltage : 1 x 230 V
  • Frequency : 50 Hz
  • Electrical connection : connection cable with plug
  • Protection class (IP) : IP68
  • Discharge connection : 1 1/4" (DN 32), female thread
  • Inlet connection : 1 1/2" (DN 40), socket
  • Installation behind the toilet bowl : yes
  • Alarm function : yes
  • Number of pumps : 1
  • Pump body material : plastic
  • Tank material : plastic
  • Height [mm] : 291
  • Width [mm] : 459
  • Depth [mm] : 192
Datasheets
Station de relevage Zehnder Versacut 2 en 1 avec broyeur (raccordement direct ou montage sur bâti-support)
Zehnder Versacut 2-in-1 lifting station with macerator (direct connection or pre-wall mounting)
CHF 692.05
Standard 93 275 61
CHF 692.05 /each
Total:
