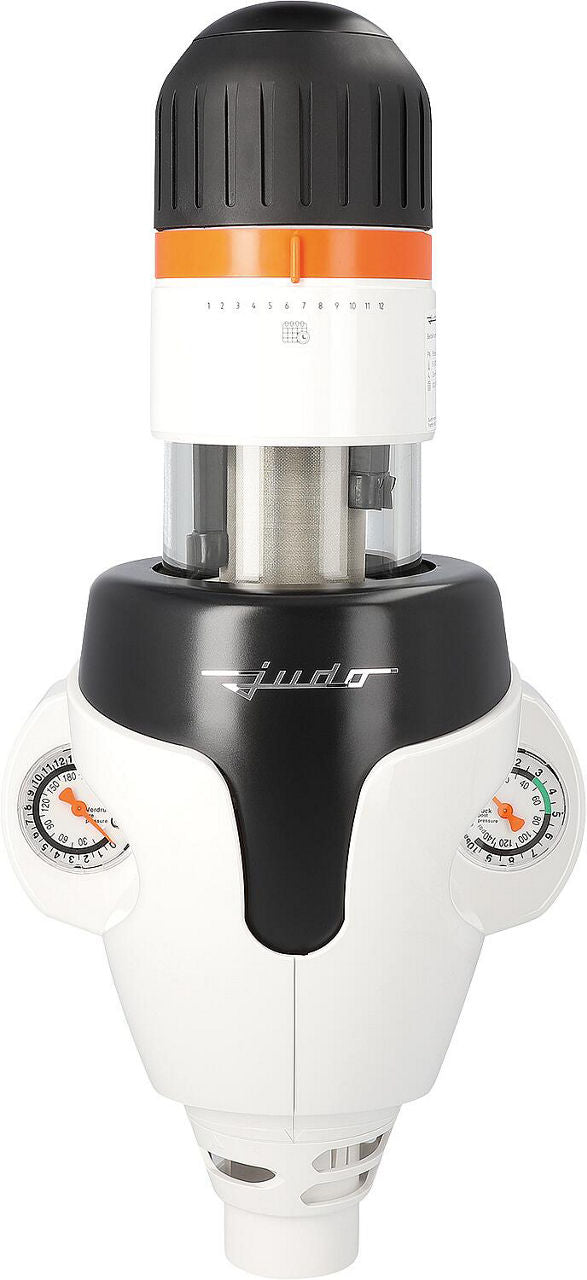

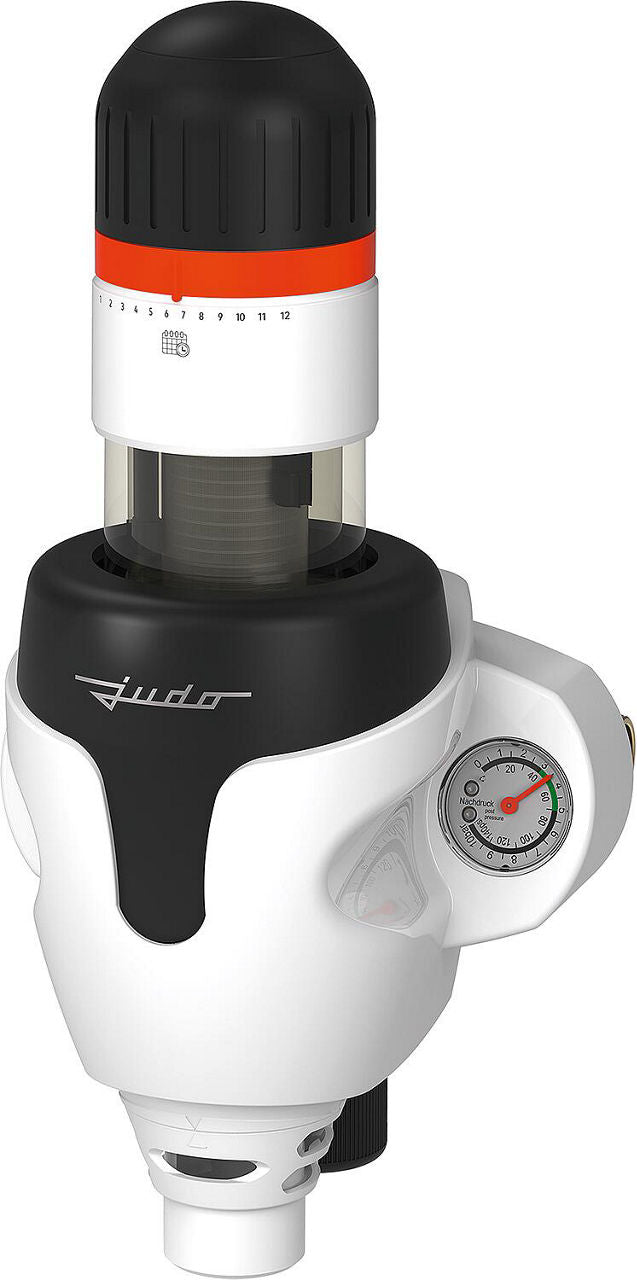

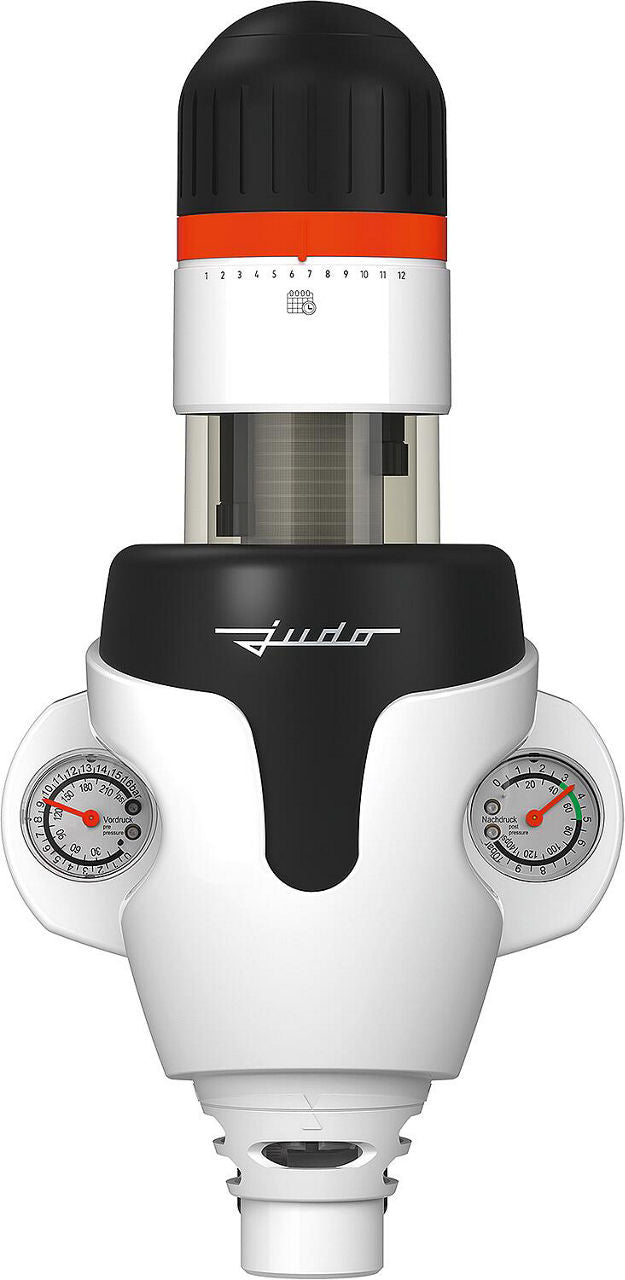

Judo PROMI-QUICK CONNECTION Domestic Water Filtration System

CHF 545.60 - CHF 659.05
/
Tax included

Select an option to add this to your cart.

Features

  • For use with potable water
  • With pressure reducer, upstream and downstream pressure gauge
  • Backwashable
  • Manual handwheel for backwashing the filter cartridge using the highly effective point-rotation system for optimal germ protection with simultaneous cleaning of the sight glass
  • Inlet pressure: Min. 1.5 bar / max. 16 bar
  • Outlet pressure: 1.5 - 6 bar
  • Operating temperature: Max. +30°C
  • Mounting position: Vertical or horizontal, with filter bowl facing downwards
  • Filter mesh size: 0.1 mm
  • Body: Brass / Plastic
  • With swivelling connection flange

Technical Data

  • Backwash filter: yes
  • Connections: External thread
  • Installation length with connections [mm]: 180
  • With drainage option (connection): yes
  • Installation length [mm]: 180
  • Body material: Plastic
  • DVGW certification: yes
  • Nominal flow rate [m³/h]: 2.3
  • Size: DN 20 (3/4")
  • Mounting position: horizontal/vertical
  • Overall height [mm]: 444
  • Max. operating pressure [bar]: 16
  • Overall length with connection [mm]: 180
  • Nominal diameter: 3/4 inch (20)
Available variants
  • SKU 93 253 86 : DN 20 (3/4")
  • SKU 93 249 95 : 1"
  • SKU 93 253 87 : 1 1/4"
Datasheets
Station de filtration d'eau domestique JUDO PROMI-QUICK CONNECTION
Judo PROMI-QUICK CONNECTION Domestic Water Filtration System
CHF 545.60 - CHF 659.05
Station de filtration d'eau domestique JUDO PROMI-QUICK CONNECTION
NPS 3/4" 93 253 86
CHF 545.60 /each
Station de filtration d'eau domestique JUDO PROMI-QUICK CONNECTION
1" 93 249 95
CHF 545.60 /each
Station de filtration d'eau domestique JUDO PROMI-QUICK CONNECTION
1 1/4 in 93 253 87
CHF 659.05 /each
