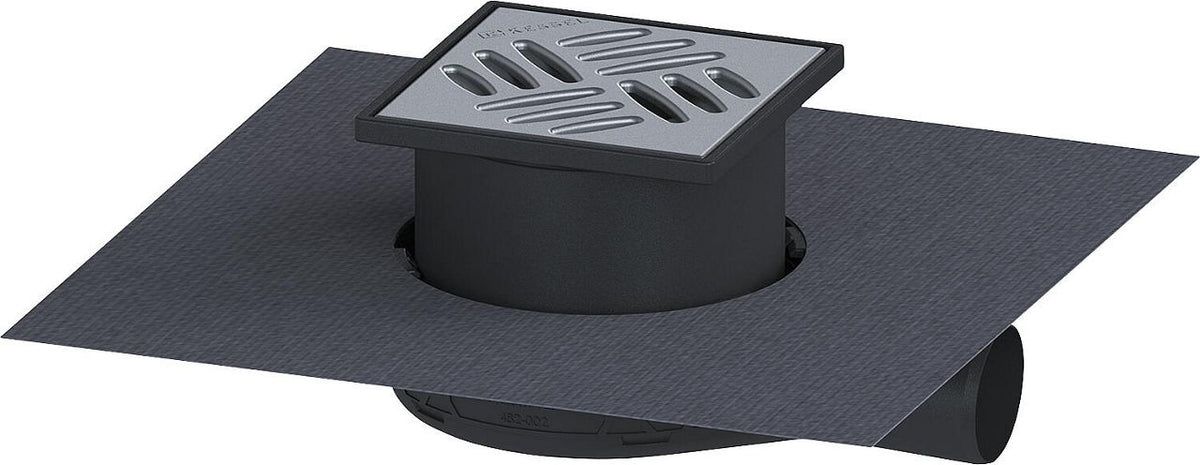

Siphon de sol KESSEL "Der Ultraflache 54" DN 50 horizontal, grille à fentes avec bride d'étanchéité
Siphon de sol KESSEL "Der Ultraflache 54" DN 50 horizontal, grille à fentes avec bride d'étanchéité
Siphon de sol KESSEL "Der Ultraflache 54" DN 50 horizontal, grille à fentes avec bride d'étanchéité

KESSEL "Der Ultraflache 54" floor drain, DN 50 horizontal, slotted grate with sealing flange

CHF 106.65
/
Tax included

KESSEL ultra-flat floor drain DN 50 with horizontal outlet and flow capacity of 0.8 l/s. Equipped with a 120 x 120 mm stainless steel slotted grate and a sealing cuff compliant with DIN EN 1253-1 and DIN 18534-1-W3-I standards. Adjustable height with 22 mm water seal.

Features

  • Ultra-flat floor drain with horizontal DN 50 outlet
  • 120 x 120 mm stainless steel slotted grate
  • Flow capacity 0.8 l/s
  • Height adjustable with plug-in sleeve
  • 22 mm water seal
  • Sealing flange compliant with DIN EN 1253-1 and DIN 18534-1-W3-I
  • Stainless steel look finish

Technical data

  • Brand : KESSEL
  • EAN : 4026092080832
  • Manufacturer no. : 44750.20M
  • Color : stainless steel look
  • Connection : Plug-in sleeve
  • Height adjustable : Yes
  • Flow rate [l/s] : 0.8
  • Water seal height [mm] : 22
  • With grate : Yes
  • With trap : Yes
  • Grate material : stainless steel
  • Outlet direction : horizontal
  • Grate width [mm] : 120
  • Grate length [mm] : 120
  • Connection size : DN 50
Datasheets
Siphon de sol KESSEL "Der Ultraflache 54" DN 50 horizontal, grille à fentes avec bride d'étanchéité
KESSEL "Der Ultraflache 54" floor drain, DN 50 horizontal, slotted grate with sealing flange
CHF 106.65
Siphon de sol KESSEL "Der Ultraflache 54" DN 50 horizontal, grille à fentes avec bride d'étanchéité
93 256 58
CHF 106.65 /each
