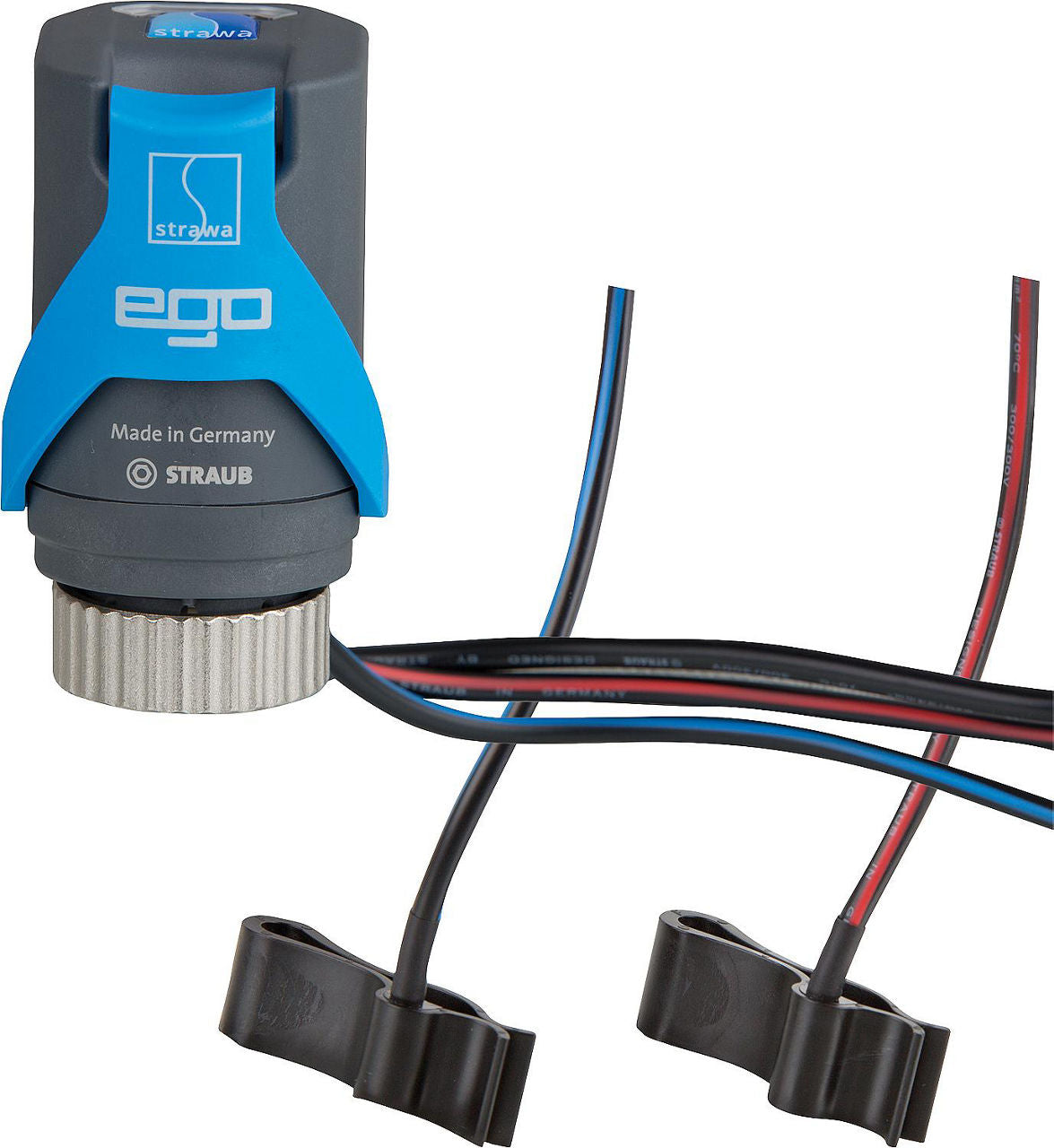

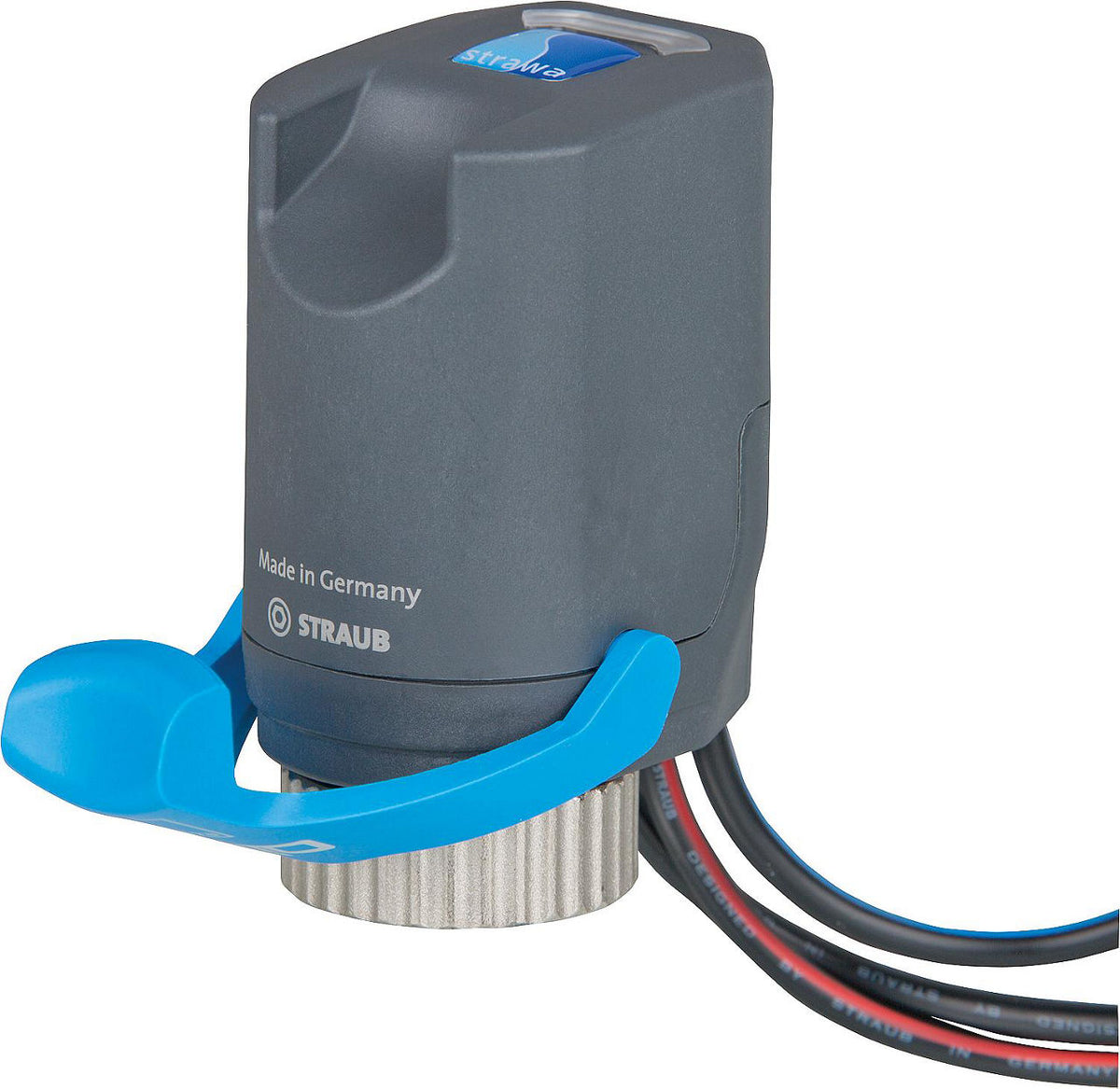

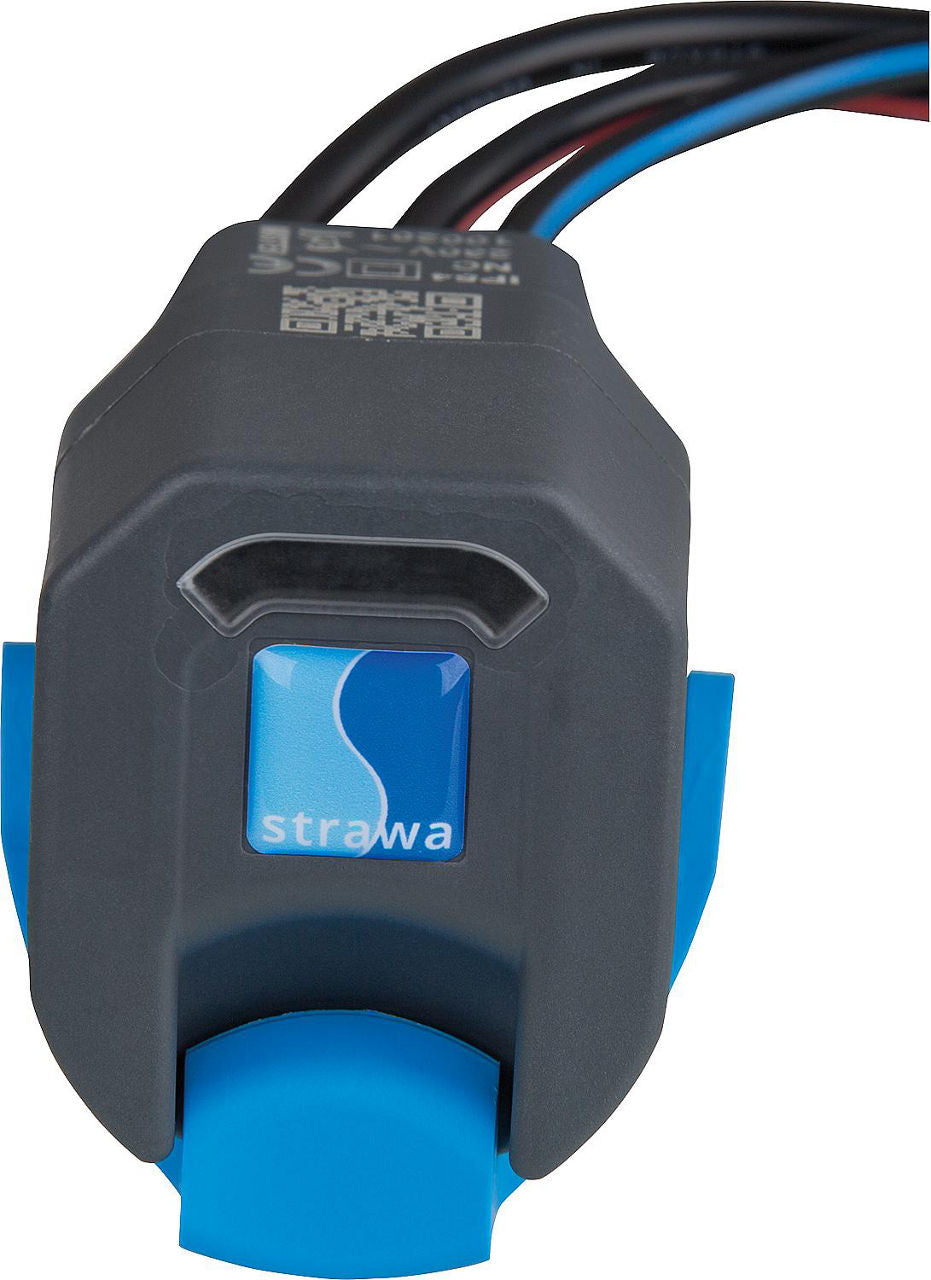

Electrothermal actuator strawa EGO-M30, 230 V, M30×1.5

Description

Actuator for precise hydraulic balancing • For heating and cooling

• For underfloor heating manifolds with M30 × 1.5 threaded connection
• Operates automatically and intelligently
• Continuous and demand-based regulation
• Requires no adjustments or maintenance
• No additional components required, such as a router, gateway, central processing unit or app control
• Sensor and EGO-AI already integrated into the actuator
• EGO-AI independently detects usage information and environmental system data
• Hydraulic balancing without installation calculation investment
• Regardless of the BRAND, EVERY manifold ALWAYS has hydraulic balancing
• Works with traditional room temperature controls
• No change of water-contacting parts

Functionality

The actuator is mounted on the thermostatic valve connection, and the probes are clipped onto the supply and return pipes of each hydraulic module. The signal reaches the actuator via traditional room temperature controls. The EGO-AI detects the setpoint temperature based on usage information and the environmental system and is able to adapt and maintain each valve position. After restarting, the actuator returns to the end position to continue regulating dynamically. Operation and malfunction are indicated by an integrated LED with changing colors and flashing. After a predetermined number of switching cycles, the valve briefly and fully opens to clear any dirt particles.

Technical Data

• M30 × 1.5 threaded connection
• Operating voltage 230 V
• Normally closed (NC)
• Probe cable for outer pipe diameter 12-20 mm
• EGO AI and sensor (already integrated in the actuator)
• Fold-down handle for manual opening • Can be mounted in any position
