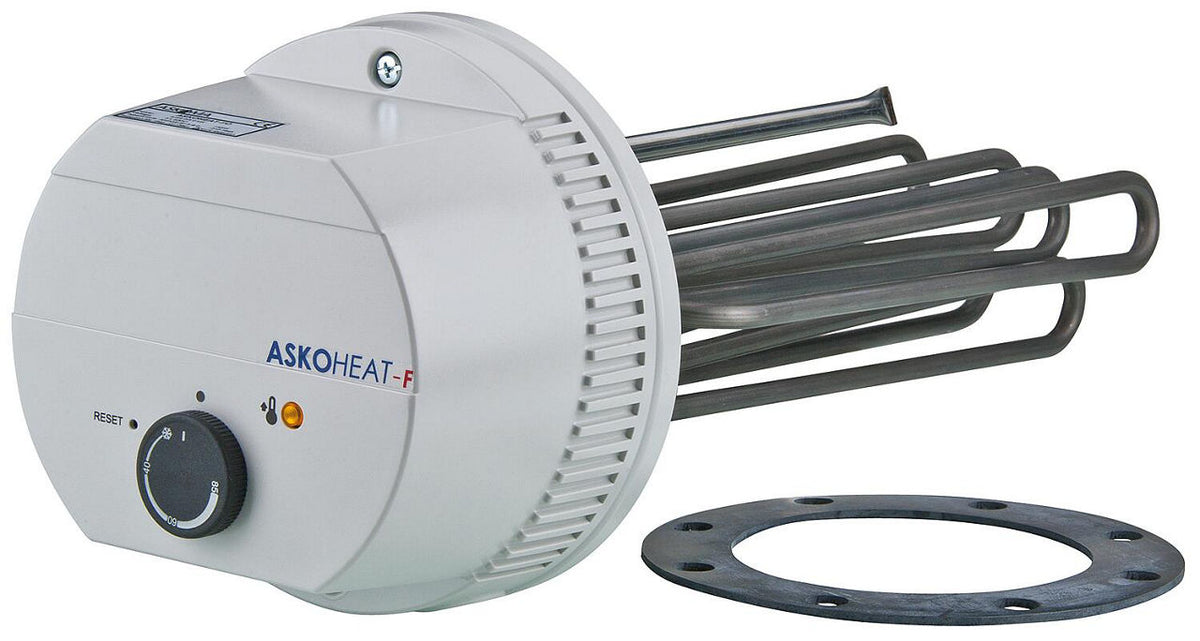

Flanged Electric Heaters Type AHFOR-BI-A, ø 180 mm

CHF 328.60 - CHF 395.15
/
Tax included

Select an option to add this to your cart.

Features

Askoheat electric heating elements are generally suitable for photovoltaic systems, but always only depending on the control system installed on the system side.

If used in hard water, limescale reduction measures or descaling of the heating element (first time after 3 months, then at regular intervals) must be carried out. Limescale can cause the safety limiter to trip, thermal destruction or pitting corrosion of the heating element, which voids the warranty!

  • For heating domestic and heating water
  • Unheated zone: 70 mm
  • For bolt circle ø 150 mm / 8xM12
  • Suitable for continuous operation
  • With temperature controller/limiter combination and operating light
  • Setting range: OFF/Anti-freeze/28°C-85°C

Technical data

  • Brand: ASKOMA
  • Operating pressure [bar]: 10
  • Installation length [mm]: 260
  • Power [kW]: 2.0
  • Manufacturer part number: 012-1641
  • Connection dimension: Flange 180mm
  • Connection type: Flange
  • Number of power levels: 1
  • Operating voltage [V]: 230 V (AC) or 3 x 400 V (AC)
  • Flange diameter [mm]: 180
  • Connection: Flange
Available variants
  • 2.0 kW · L 260 mm — SKU 97 021 87
  • 2.5 kW · L 310 mm — SKU 97 021 88
  • 5.0 / 2.5 kW · L 300 mm — SKU 97 028 54
  • 6.0 / 3.0 kW · L 360 mm — SKU 97 021 90
  • 7.5 kW · L 420 mm — SKU 97 021 91
  • 8.0 kW · L 450 mm — SKU 97 021 92
  • 9.0 kW · L 490 mm — SKU 97 021 93
  • 10.0 kW · L 540 mm — SKU 97 021 94
Data sheets
Résistances électriques à bride Type AHFOR-BI-A, ø 180 mm
Flanged Electric Heaters Type AHFOR-BI-A, ø 180 mm
CHF 328.60 - CHF 395.15
2.0 kW · L 260 mm 97 021 87
CHF 328.60 /each
2.5 kW · L 310 mm 97 021 88
CHF 336.95 /each
5.0 / 2.5 kW · L 300 mm 97 028 54
CHF 354.95 /each
6.0 / 3.0 kW · L 360 mm 97 021 90
CHF 368.15 /each
7.5 kW · L 420 mm 97 021 91
CHF 382.70 /each
8.0 kW · L 450 mm 97 021 92
CHF 386.85 /each
9.0 kW · L 490 mm 97 021 93
CHF 391 /each
10.0 kW · L 540 mm 97 021 94
CHF 395.15 /each
