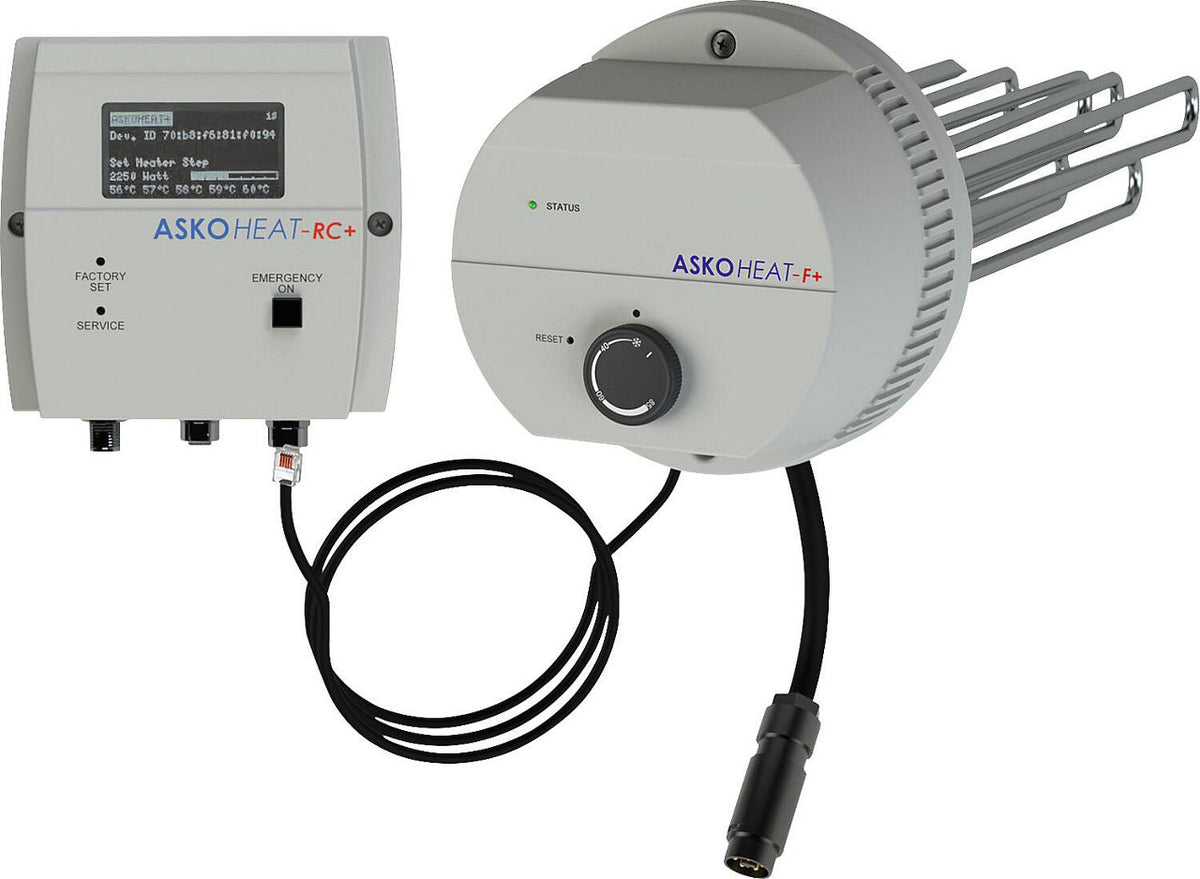

Résistance électrique à bride ASKOHEAT+ 2.0, type AHF-TI-plus, 3 niveaux, ø 180 mm
Résistance électrique à bride ASKOHEAT+ 2.0, type AHF-TI-plus, 3 niveaux, ø 180 mm
Résistance électrique à bride ASKOHEAT+ 2.0, type AHF-TI-plus, 3 niveaux, ø 180 mm

ASKOHEAT+ 2.0 flanged immersion heater, type AHF-TI-plus, 3-stage, ø 180 mm

CHF 976.65 - CHF 996.75
/
Tax included

Select an option to add this to your cart.

Features

  • Domestic hot water and heating in photovoltaic systems
  • For optimizing the self-consumption of the PV system
  • Control via energy manager or building management systems
  • Adjustable via: LAN, Modbus TCP/-RTU and 0-10 V analog signal
  • Can communicate via the existing RS485 interface with a meter to be provided on site. If PV energy is available, starts heating with the correct heating power level
  • Button for emergency heating on the electric heater, switches to 100% power
  • Heat pump request - control from the heat pump is via a digital input
  • Connections for up to 4x PT1000 temperature sensors (optional), e.g. for reading stratification temperature behavior
  • With controller/limiter combination
  • Setting range: OFF / Antifreeze / 0-85°C
  • Insulated construction for all tank materials (steel, stainless steel, enameled)
  • Suitable accessories: ASKOSENSOR, ASKOSET+
  • Incl. control unit with 2.9 m connection cable
  • Unheated zone: 70 mm
  • Protection class: IP21

Technical data

  • Brand: ASKOMA
  • Operating pressure [bar]: 10
  • Mounting length [mm]: 420
  • Power [kW]: 7.5
  • Manufacturer's reference: 012-6831
  • Connection dimension: Flange 180mm
  • Connection type: Flange
  • Number of power levels: 3
  • Operating voltage [V]: 400
  • Flange diameter [mm]: 180
  • Connection: Flange
  • Power (kW)/level: 2.50
Available variants
  • 7.5 kW · L 420 mm — SKU 97 036 90
  • 9.0 kW · L 490 mm — SKU 97 036 91
Résistance électrique à bride ASKOHEAT+ 2.0, type AHF-TI-plus, 3 niveaux, ø 180 mm
ASKOHEAT+ 2.0 flanged immersion heater, type AHF-TI-plus, 3-stage, ø 180 mm
CHF 976.65 - CHF 996.75
7.5 kW · L 420 mm 97 036 90
CHF 976.65 /each
9.0 kW · L 490 mm 97 036 91
CHF 996.75 /each
