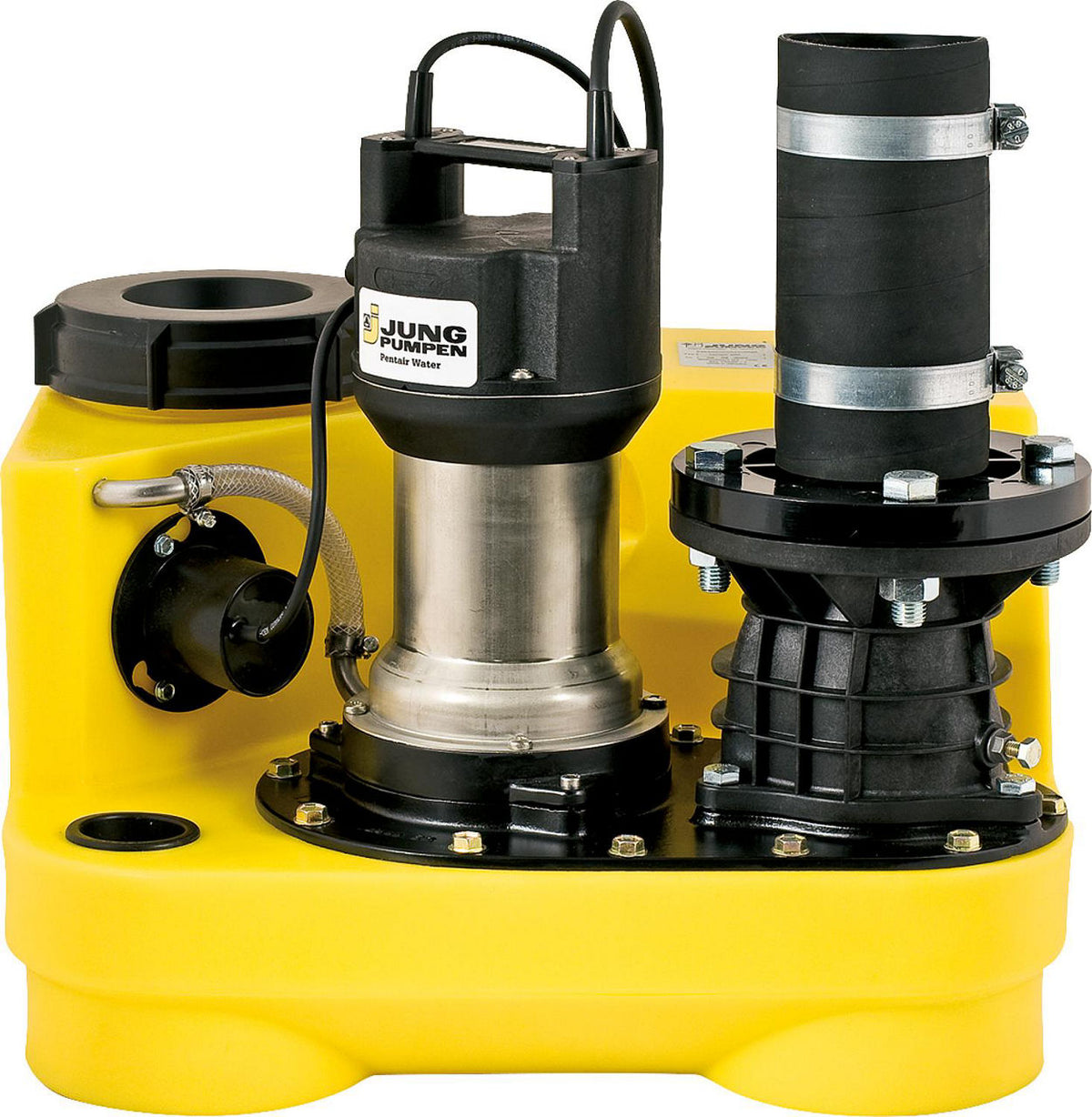

Station de relevage des matières fécales Compli 300 E 230 V
Station de relevage des matières fécales Compli 300 E 230 V
Station de relevage des matières fécales Compli 300 E 230 V

Faecal lifting station Compli 300 E 230 V

CHF 2,187.20
/
Tax included

Select an option to add this to your cart.

Features

  • **Description**
  • For wastewater disposal in single-family homes
  • Individual installation with backflow preventer
  • Ready to plug in with control unit
  • Discharge by free-flow impeller
  • Smart Home compatible
  • Inlet: DN 100
  • Discharge: DN 80
  • Ventilation: DN 70
  • Nominal power: 1370 W
  • Voltage: 230 V/50 Hz
  • Max flow rate: 29000 l/h
  • Max delivery head: 10.5 m
  • Tank volume: 50 l
  • Weight: 30 kg

Technical data

  • Tank volume [l]: 50
  • Discharge connection diameter: DN 80
  • Motor power consumption (P1) [W]: 1370
  • Electrical connection: Connection cable with plug
  • Rated current [A]: 6
  • Protection class (IP): IP68
  • Pump body material: Cast iron
  • Alarm output: Yes
  • Inlet connection diameter: DN 100
  • Height [mm]: 406
  • Frequency: 50 Hz
  • Connection voltage: 1 x 230 V
  • Width [mm]: 601
  • Number of inlet ports: 1
  • Tank material: Plastic
  • Number of pumps: 1
  • Alarm function: Yes
  • EAN: 4037066094960
  • Depth [mm]: 525
Available variants
  • Standard — SKU 93 178 21
Datasheets
Station de relevage des matières fécales Compli 300 E 230 V
Faecal lifting station Compli 300 E 230 V
CHF 2,187.20
Station de relevage des matières fécales Compli 300 E 230 V
Standard 93 178 21
CHF 2,187.20 /each
