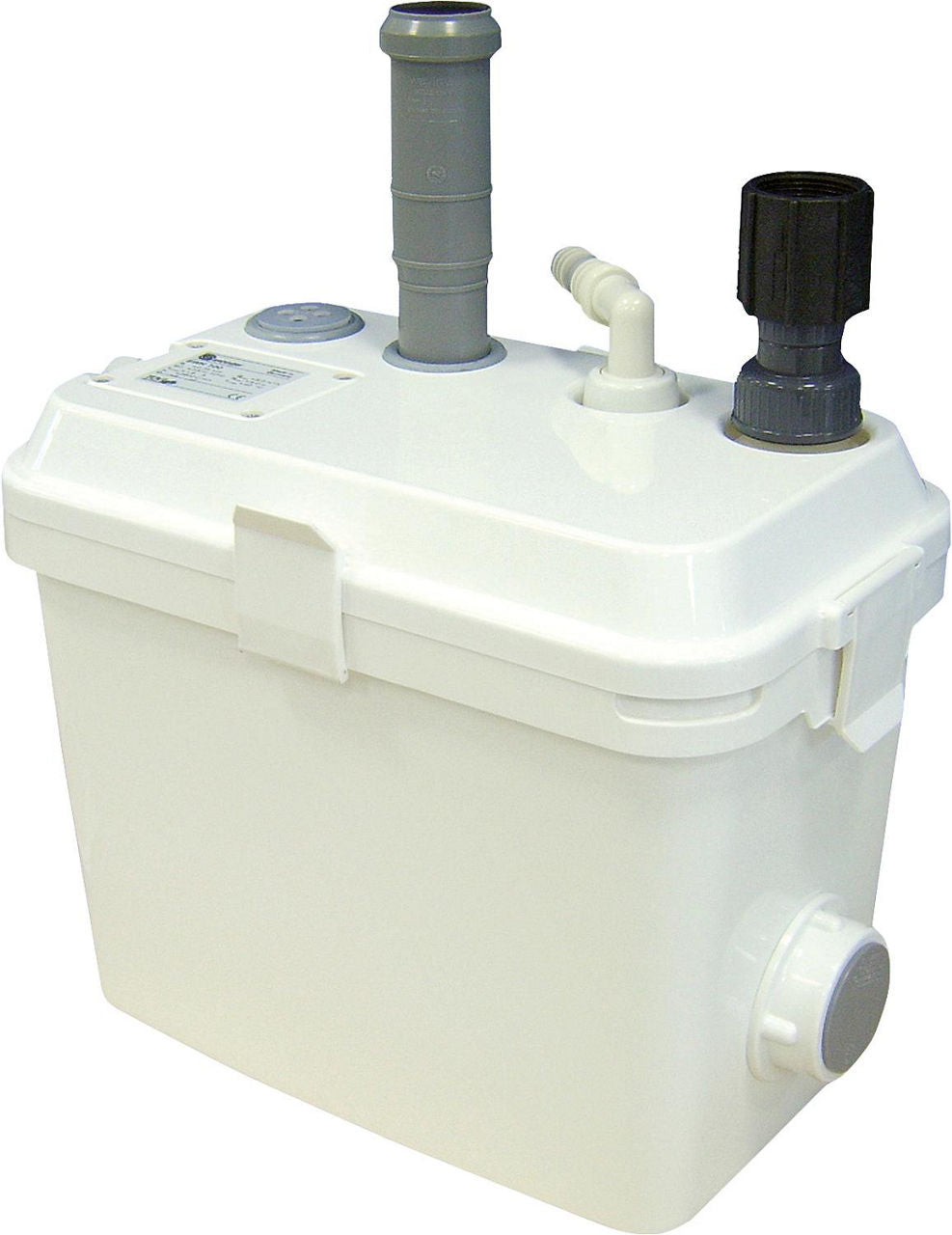

S-SWH 100 Viton Lifting Station

Features

• Suitable for water softening systems and condensing boilers,
• Additional connection for shower, sink, and washing machine possible
• Ready to plug in
• For pumping slightly acidic condensate, abrasive or saline fluids (max. 15% salt content)
• High-quality mechanical seal made of silicon carbide, motor housing made of stainless steel 1.4404,
• Stainless steel motor shaft
• Integrated control unit in the tank lid with audible alarm
• In case of unacceptably high water level
• Potential-free contact for external alarm or washing machine shutdown
• DN 50 (2") shower inlet prepared, usable from both sides (only 80 mm
• between tank bottom and shower inlet axis)
• Operating temperature: 40°C (up to 90°C intermittently)
• DN 32 (1 1/4") FI discharge outlet with integrated check valve
• Tank ventilation via activated carbon filter
• For above-ground installation in frost-free rooms below the sewage backflow level
• Rated power: 300 W
• Voltage: 230 V/50 Hz
• Rated current: 1.3 A
• Max. flow rate: 8000 l/h
• Max. discharge head: 6 m
• Dimensions (L x W x H): 388 x 250 x 300 mm
• Weight: 5 kg

Technical Data

• Tank volume [l]: 10
• Discharge side connection diameter: DN 32
• Motor power consumption (P1) [W]: 300
• Electrical connection: Connection cable with plug
• Rated current [A]: 1.3
• Discharge side connection: Internal thread
• Protection class (IP): IP57
• Pump housing material: Plastic
• Alarm output: Yes
• Inlet side connection diameter: DN 50
• Height [mm]: 299
• Frequency: 50 Hz
• Connection voltage: 1 x 230 V
• Width [mm]: 393
• Number of inlet openings: 2
• Tank material: Plastic
• Number of pumps: 1
• Depth [mm]: 244
