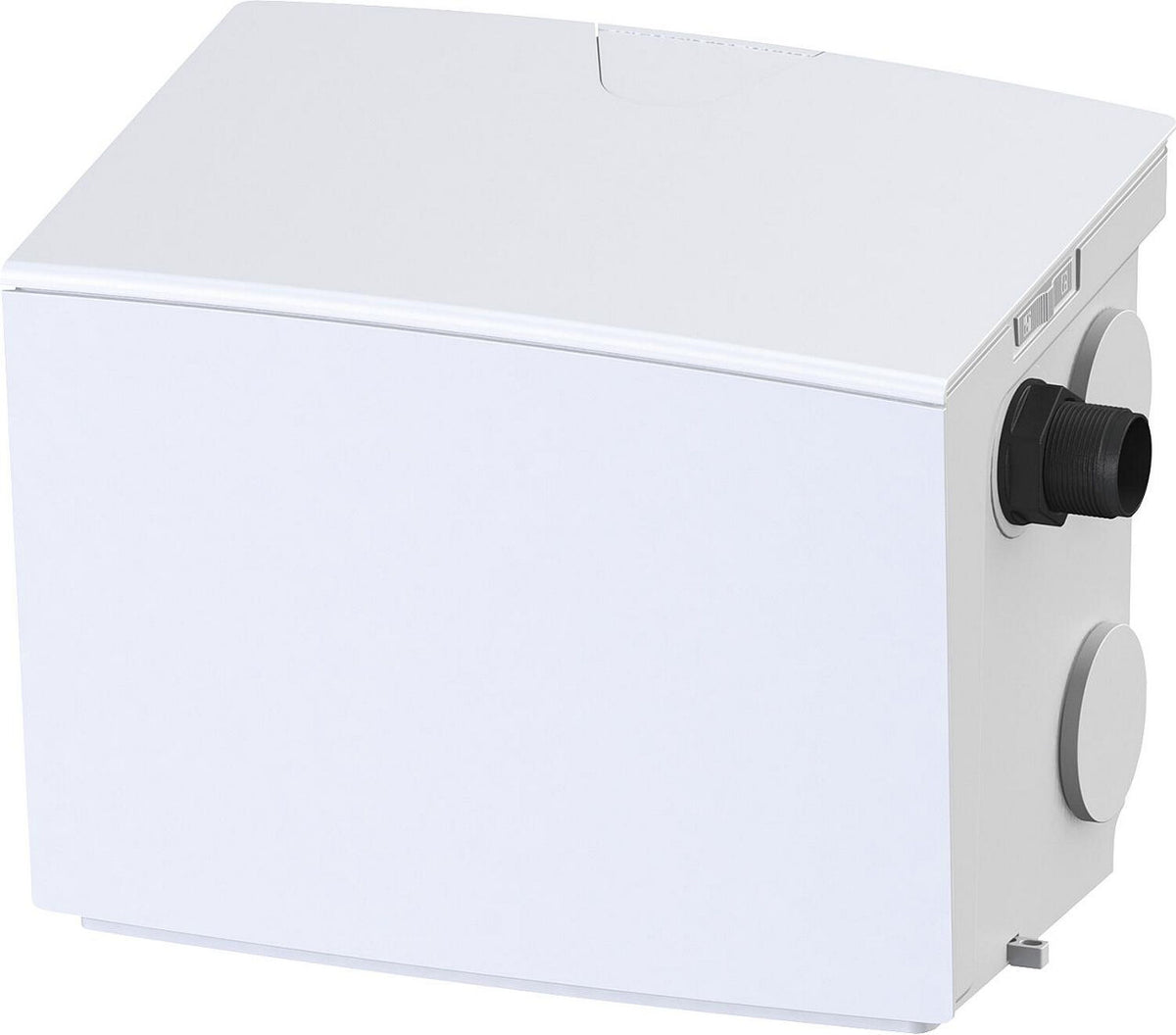

Station de relevage Kessel Minilift L KTP 300 (sans matières fécales)
Station de relevage Kessel Minilift L KTP 300 (sans matières fécales)
Station de relevage Kessel Minilift L KTP 300 (sans matières fécales)

Kessel Minilift L KTP 300 lifting station (for non-faecal wastewater)

CHF 556.65
/
Tax included

Select an option to add this to your cart.

Features

  • Ideal as a compact, ready-to-connect lifting station for the disposal of wastewater without faeces from showers, bathtubs, washbasins, sinks, dishwashers, or washing machines.
  • Rated power: 340 W
  • Voltage: 220 V, 50 Hz
  • Flow rate: max. 8000 l/h
  • Discharge head: max. 6 m
  • Discharge connection: 1 x DN 32
  • Inlet: 4 x DN 50; 1 x DN 40
  • Dimensions (L x W x H): 424 x 296 x 339 mm
  • Integrated non-return valve
  • Installation: freestanding floor mounting
  • Tool-free maintenance

Technical Data

  • Tank volume [l]: 30
  • Discharge side connection diameter: DN 32
  • Motor power consumption (P1) [W]: 340
  • Electrical connection: Connection cable with plug
  • Rated current [A]: 1.6
  • Protection class (IP): IP68
  • Pump casing material: Plastic
  • Inlet side connection diameter: DN 100
  • Height [mm]: 340
  • Frequency: 50 Hz
  • Ref. No.: 28561
  • Connection voltage: 1 x 230 V
  • Width [mm]: 425
  • Number of inlet ports: 5
  • Tank material: Plastic
  • Number of pumps: 1
  • EAN: 4026092096970
  • Depth [mm]: 300
