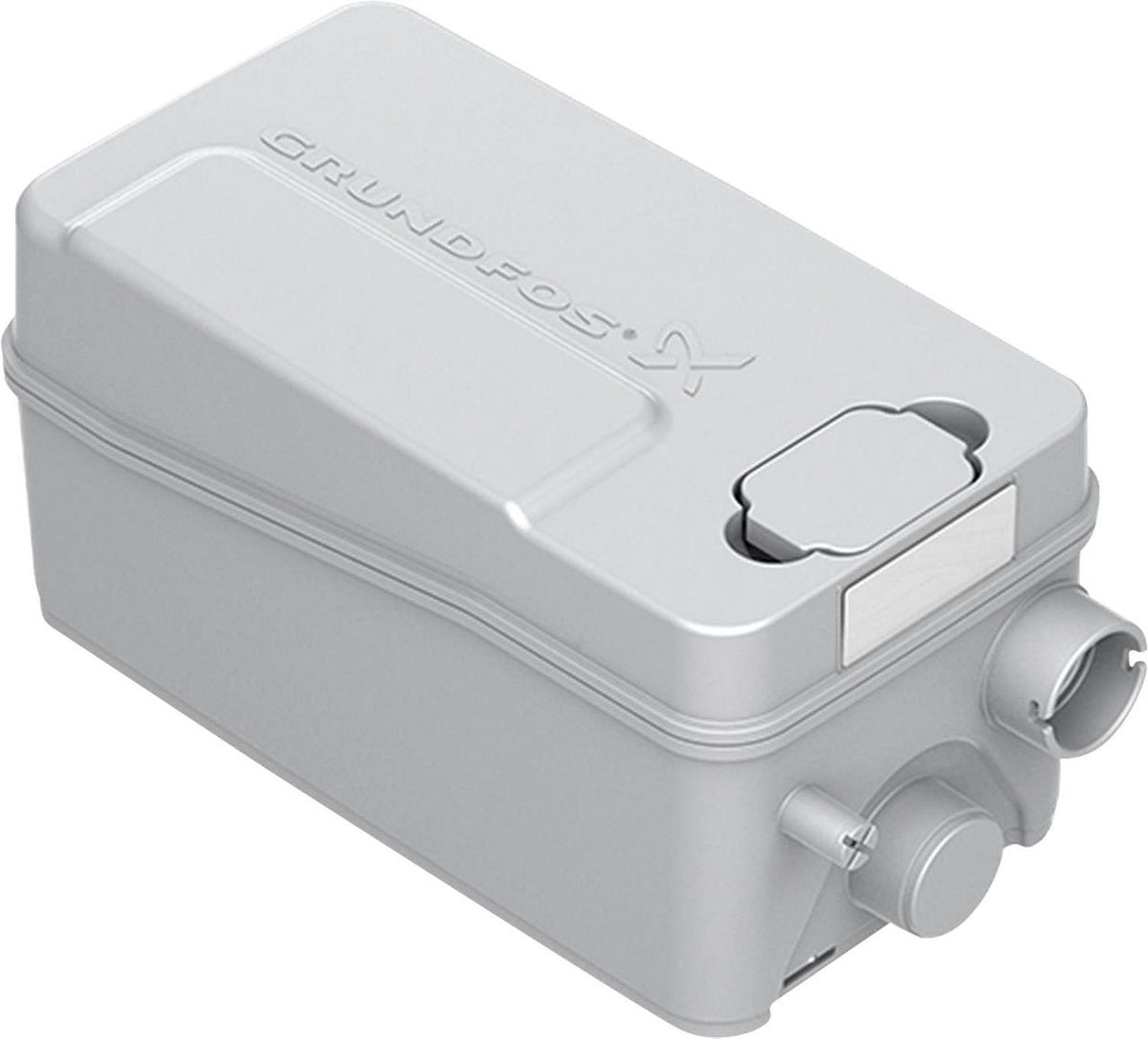

Grundfos Sololift2 D-2 Small Lifting Station 0.2 kW 230 V

CHF 423.75
/
Tax included

Select an option to add this to your cart.

Features

  • # Translation
  • **[Description]**
  • Suitable for fecal-free wastewater from shower and sink
  • For particularly confined installation conditions, including under shower trays
  • Ready to plug in
  • With activated carbon filter
  • Rated power: 280 W
  • Voltage: 230 V/50 Hz
  • Max. discharge head: 5.5 m
  • Max. flow rate: 7200 l/h
  • Max. permissible wastewater temperature: 50°C
  • Discharge: 22/32 mm
  • Inlet: 36/40/50 mm

Technical Data

  • Tank volume [l]: 2
  • Connection diameter on discharge side: DN 32
  • Motor power consumption (P1) [W]: 280
  • Electrical connection: Connection cable with plug
  • Rated current [A]: 1.3
  • Protection class (IP): IP44
  • Pump housing material: Plastic
  • Alarm output: Yes
  • Connection diameter on inlet side: DN 50
  • Height [mm]: 216.5
  • Frequency: 50 Hz
  • Ref. No.: 97775318
  • Connection voltage: 1 x 230 V
  • Width [mm]: 376
  • Number of inlet ports: 1
  • Tank material: Plastic
  • Number of pumps: 1
  • EAN: 5710624187272
  • Depth [mm]: 164.8
Available variants
  • Standard — SKU 93 185 21
