Vexve AM 40 heating control for 1 circuit, with actuator and sensors

CHF 572.20
/
Tax included

Select an option to add this to your cart.

Description

  • For the control of: 1 x mixed circuit (3-point PI controller)
  • Expandable
  • Weather-compensated, suitable for radiators, underfloor heating, and constant room temperature
  • It comes with standard connections and a program for two heating circuits
  • The heating control is suitable for radiators, underfloor heating, and for maintaining a selected room temperature
  • The instructions included in the software allow for easy installation and problem-free operation
  • Thanks to the quick connections, accessories can be installed without difficulty (servo motor for two heating circuits, wireless room thermostat 1-2 signals)
  • Suitable for mixers: Thermomix, Easyflow heating circuits

Technical specifications

  • External power supply, 230 V AC, 50 Hz
  • Dot-Matrix display 52 x 27 mm
  • Backlit LED screen
  • Operating voltage 18 V AC
  • Housing with wall mounting points IP21
  • Motor output 24 V AC
  • 1 potential-free 10-A relay for controlling a circulation pump, screw connection
  • Weekly program

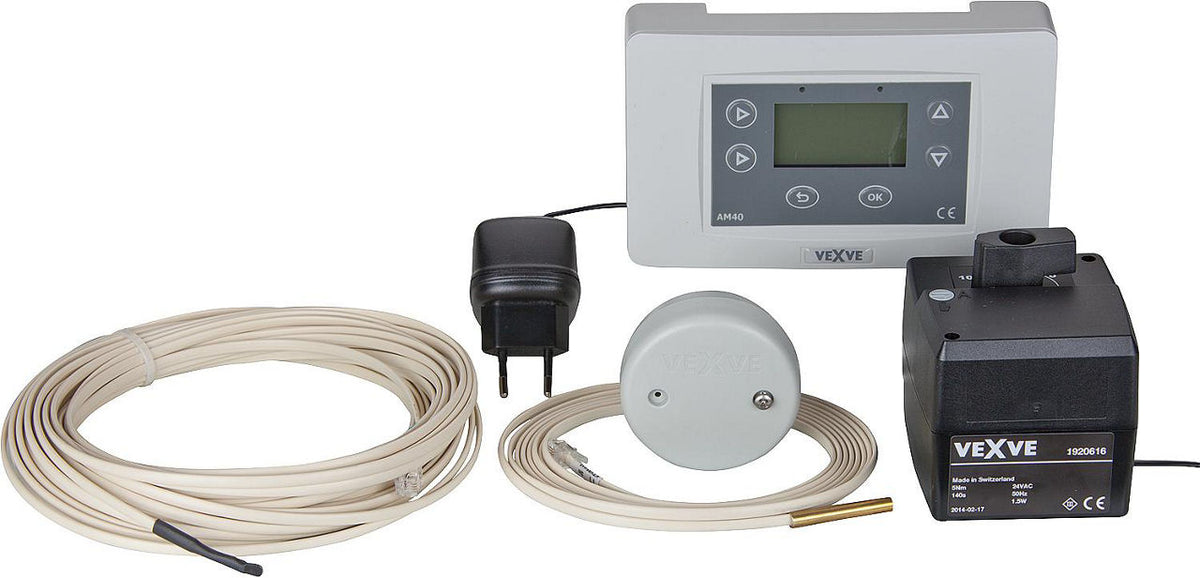

  • Scope of delivery:
  • 1 x AM40 control unit
  • 1 x Servo motor with mounting kit
  • 1 x Power supply
  • 1 x Outdoor temperature sensor (NTL)
  • 1 x Contact sensor

Technical Data

Mains voltage 230 V AC
Control type Weather-compensated
