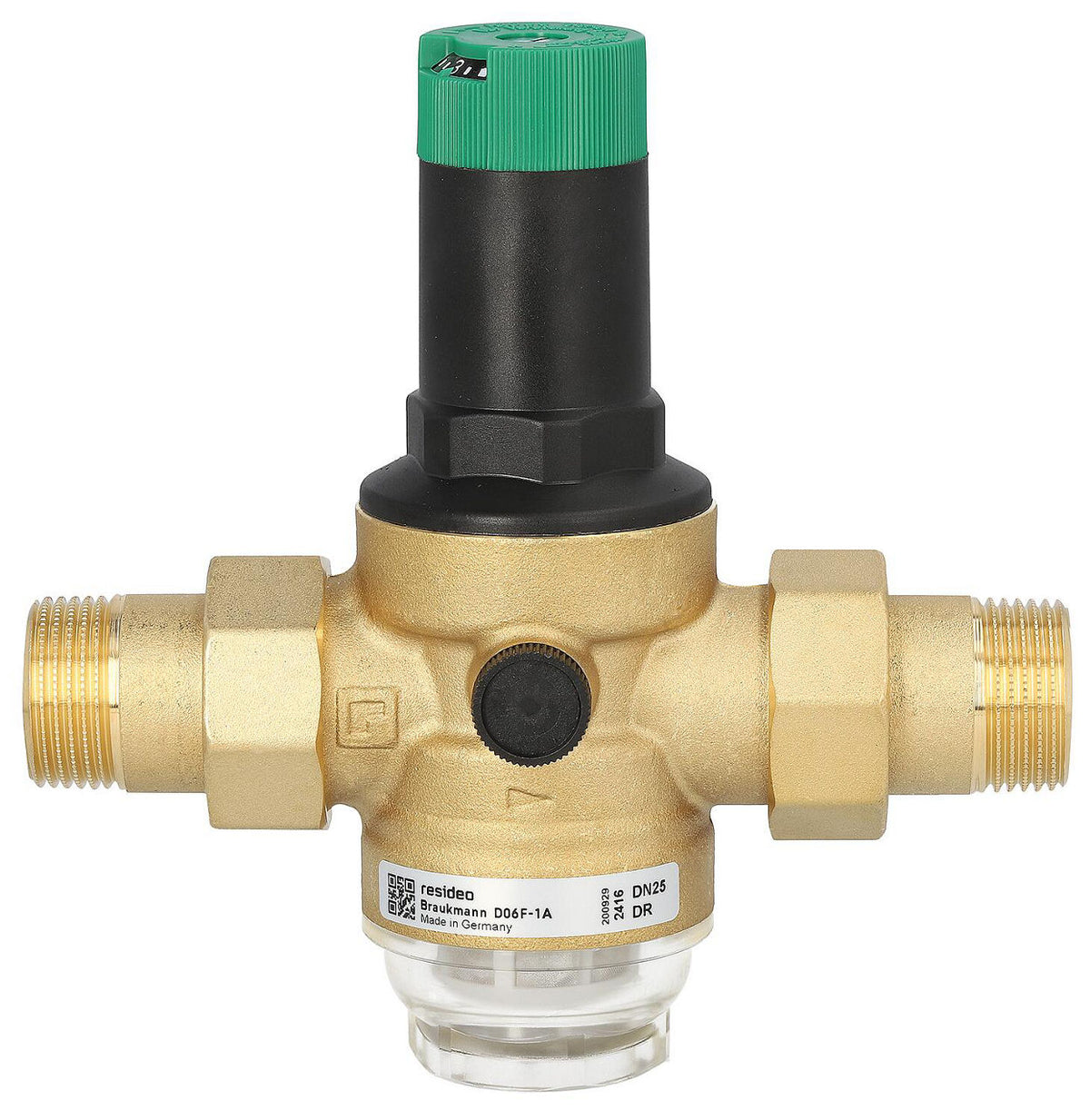

Brass pressure reducing valve with threaded connections (D06F LFA)

CHF 110.20 - CHF 369.05

Tax included

Select an option to add this to your cart.

Dimension : DN 15 (1/2") : DN 20 (3/4") : DN 25 (1") : DN 32 (1 1/4") : DN 40 (1 1/2") : DN 50 (2")

For use with water, oil-free compressed air, and nitrogen within the scope of plant authorization according to PED
Outlet pressure: 1.5 - 6 bar
Mounting position: horizontal
Pressure gauge connection on both sides DN 8 (1/4")
Seals and diaphragm: NBR
Delivery without pressure gauge
DIN/DVGW – checked
Lead-free brass body
Lead-free brass connections
Inlet pressure: max. 16 bar
Operating temperature: max. +40°C
Suitable pressure gauge (Order no.: 90 013 02)

Available variants

Brass pressure reducing valve with threaded connections (D06F LFA)

CHF 110.20 - CHF 369.05

DN 15 (1/2") 93 076 46

CHF 110.20 /each

Total:

Total: CHF 0

DN 20 (3/4") 93 076 47

CHF 124.95 /each

Total:

Total: CHF 0

DN 25 (1") 93 076 48

CHF 137.70 /each

Total:

Total: CHF 0

DN 32 (1 1/4") 93 076 49

CHF 178.85 /each

Total:

Total: CHF 0

DN 40 (1 1/2") 93 076 50

CHF 305.65 /each

Total:

Total: CHF 0

DN 50 (2") 93 076 99

CHF 369.05 /each

Total:

Total: CHF 0
