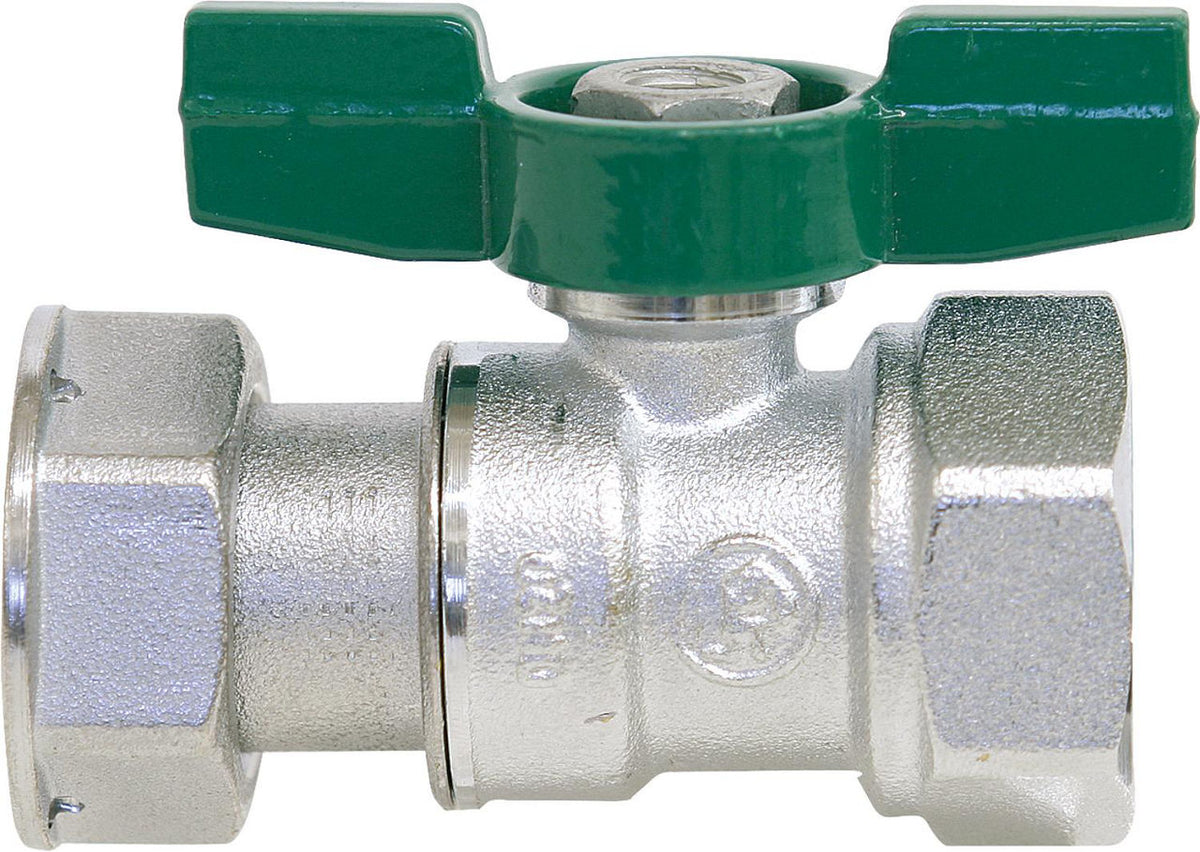

Robinet à boisseau sphérique eau potable Giacomini femelle × écrou tournant, poignée papillon

Giacomini drinking water ball valve female x swivel nut, butterfly handle

CHF 16.35 - CHF 37.05

Tax included

Select an option to add this to your cart.

Configuration : 1/2" × 3/4" : 3/4 in. : 3/4" x 1" : 1"

Suitable for installations in heating, potable water, and industrial applications
Operating pressure: DN 10 (3/8") - DN 20 (3/4") max. 42 bar
DN 25 (1") - DN 50 (2") max. 35 bar
Temperature range: -5 to +120°C
Body: chrome-plated brass
Ball: chrome-plated brass
Seal: Teflon (PTFE)
Passage: reduced
For DVGW approval, ball valves are tested with an operating pressure of 10 bar.
This is a requirement of DVGW worksheet W570-1 and DIN EN 13828.
Our ball valves comply with the current ISO 7 standard. Naturally, the maximum pressure specifications we provide in the technical data are valid.
With winged handle
Free union nut
Can be sealed

Available variants

Data sheets

Giacomini drinking water ball valve female x swivel nut, butterfly handle

CHF 16.35 - CHF 37.05

1/2" × 3/4" 93 091 15

CHF 16.35 /each

Total:

Total: CHF 0

3/4 in. 93 091 16

CHF 17.10 /each

Total:

Total: CHF 0

3/4" x 1" 93 091 17

CHF 26.05 /each

Total:

Total: CHF 0

1" 93 091 18

CHF 37.05 /each

Total:

Total: CHF 0

in cart Total:
