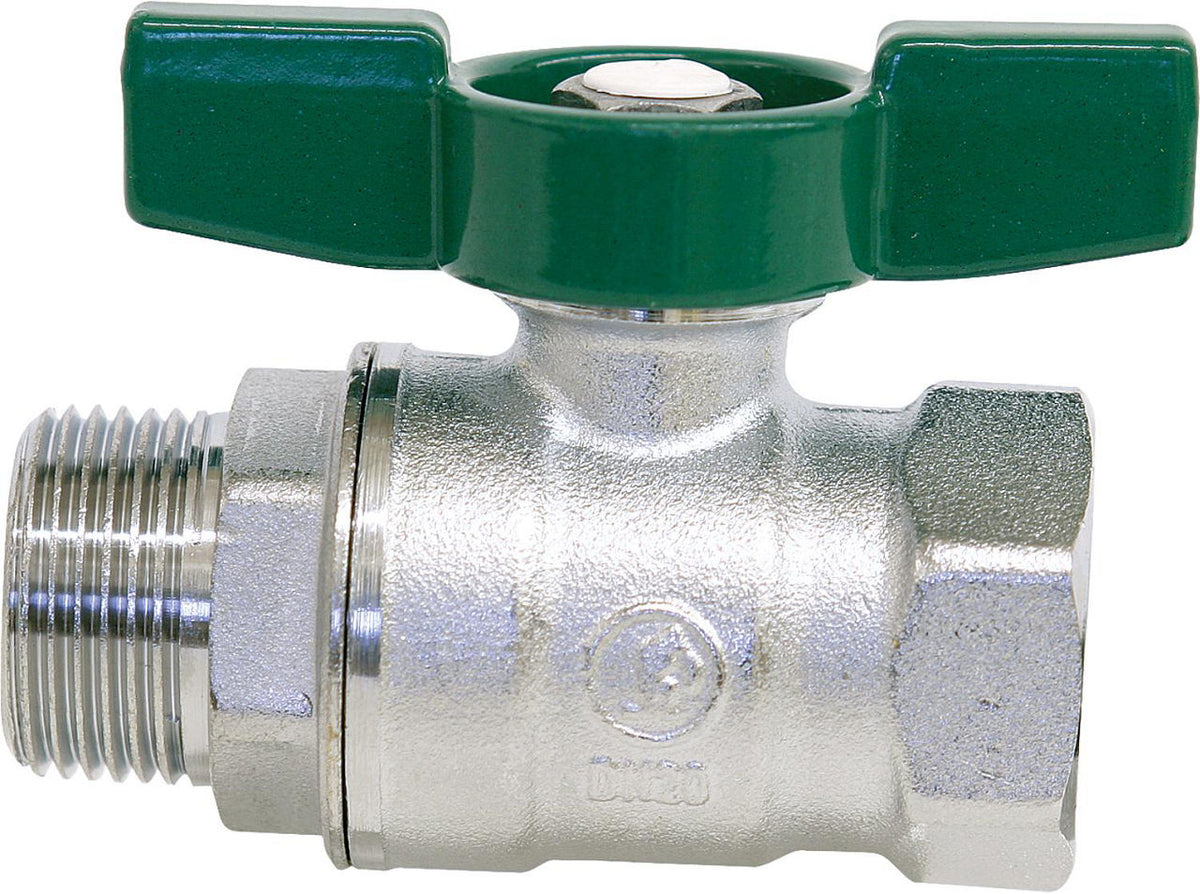

Robinet à boisseau sphérique eau potable Giacomini femelle × mâle, poignée papillon

Giacomini Potable Water Ball Valve, Female x Male, Butterfly Handle

CHF 12.20 - CHF 44.70

Tax included

Select an option to add this to your cart.

Configuration : DN10 (3/8") : DN15 (1/2") : DN20 (3/4") : DN25 (1") : DN32 (1 1/4")

Suitable for installations in heating, potable water and industrial applications
Operating pressure: DN 10 (3/8") - DN 20 (3/4") max. 42 bar
DN 25 (1") - DN 50 (2") max. 35 bar
Temperature range: -5 to +120°C
Body: Chrome-plated brass
Ball: Chrome-plated brass
Seal: Teflon (PTFE)
Passage: Reduced bore
For DVGW approval, ball valves are tested with an operating pressure of 10 bar.
This is a DVGW requirement, worksheet W570-1 and DIN EN 13828.
Our ball valves comply with the current ISO 7 standard. Naturally, the maximum pressure specifications we indicate in the Technical Data are valid
With winged handle

Available variants

SKU 93 090 98: DN10 (3/8") — length 59 mm
SKU 93 090 99: DN15 (1/2") — length 68 mm
SKU 93 091 00: DN20 (3/4") — length 79 mm
SKU 93 091 01: DN25 (1") — length 92 mm
SKU 93 091 02: DN32 (1 1/4") — length 107 mm
