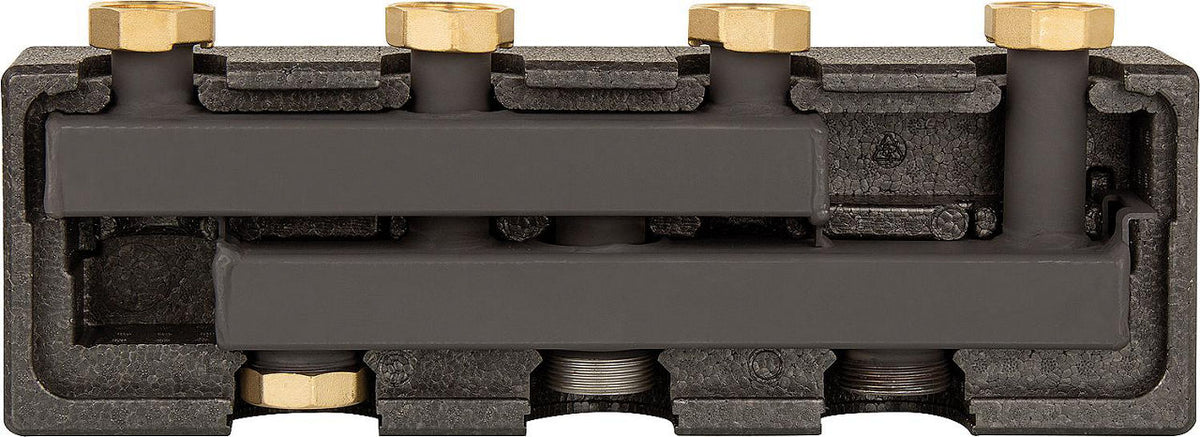

Rampe de distribution Wolf 2 circuits pour kit circuit DN 25 (1")
Rampe de distribution Wolf 2 circuits pour kit circuit DN 25 (1")
Rampe de distribution Wolf 2 circuits pour kit circuit DN 25 (1")

Wolf distribution manifold, 2 circuits for DN 25 (1") manifold kit

CHF 275.40
/
Tax included

Select an option to add this to your cart.

Description

  • With thermally separated flow and return.
  • Three boiler-side connections, rotatable and movable.
  • EPP thermal insulation shells
  • Wall mounts included.
  • Distance between manifolds: 125mm
  • Maximum flow rate (at ∆p 130 mbar): 4500 l/h
  • Kvs value: 12.5
  • Heating circuit connections:
  • DN 40 (1 1/2") union nut, flat gasket.
  • Boiler-side connections:
  • DN 40 (1 1/2") ME, flat gasket

Technical Data

Model 2 heating circuits
Dimensions H x W x D [mm] 168 x 500 x 140
Manufacturer Part Number 2072197
With magnetite separator No
max. Flow [m³/h] 4.5
With hydraulic separators No
Thermal separation of flow and return Yes
Center distance of the groups [mm] 125
With thermal insulation Yes
With deaerators No
Number of groups 2
Material steel
With drain valve No
Nominal inner diameter of central heating DN 40 (1 1/2")
Connection of the groups Union nut
Nominal inner diameter Groups DN 40 (1 1/2")
With wall mounting bracket Yes
Connection to central heating external thread
Rampe de distribution Wolf 2 circuits pour kit circuit DN 25 (1")
Wolf distribution manifold, 2 circuits for DN 25 (1") manifold kit
CHF 275.40
Standard 14 004 95
CHF 275.40 /each
