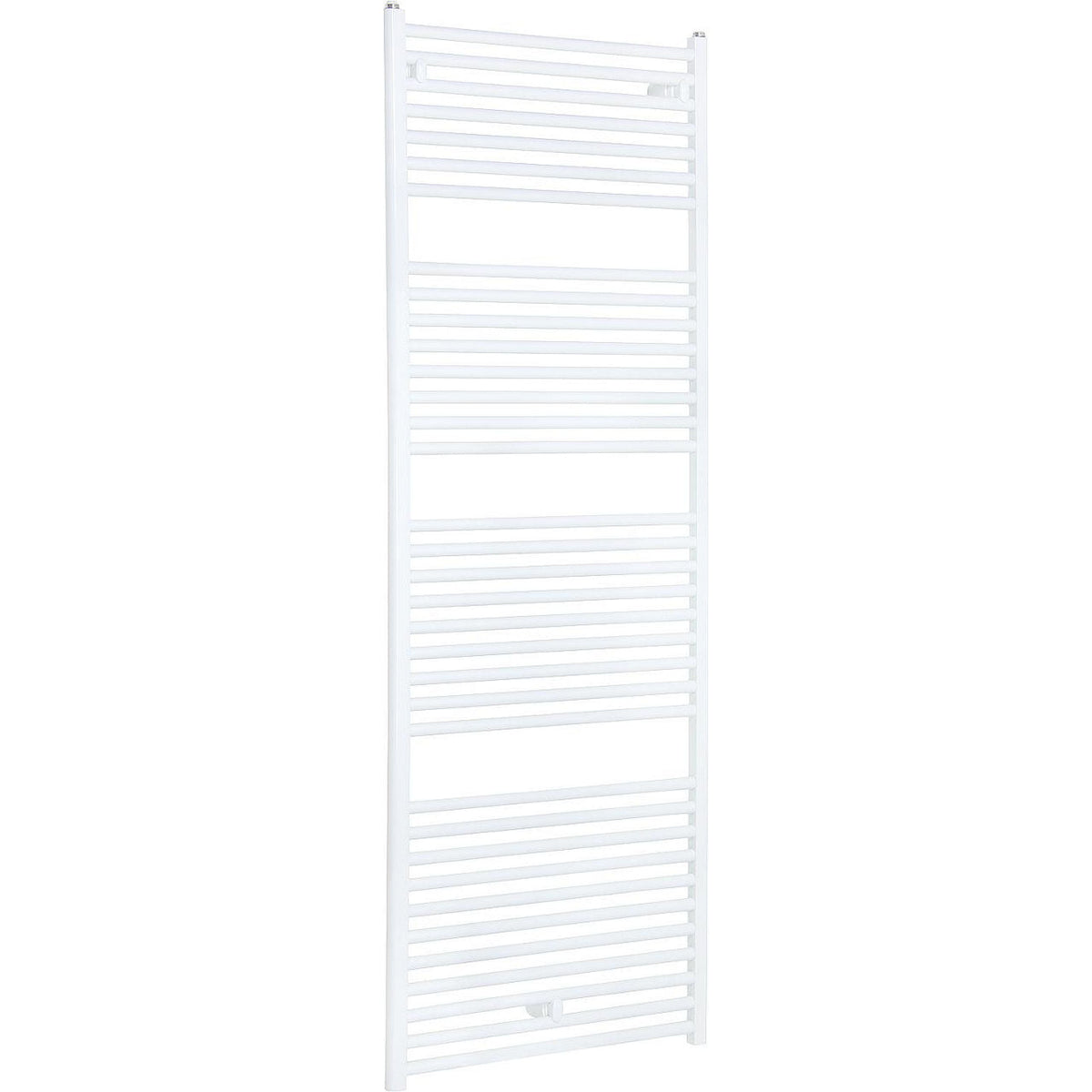

Fondital Cool aluminum towel warmer radiator, white RAL 9010

CHF 177.65 - CHF 290.70
/
Tax included

Select an option to add this to your cart.

Description

  • Material: Aluminum
  • Suitable for electric resistance: Yes
  • Operating temperatures: max. 90°C
  • Operating pressure: max. 16 bar
  • 4 connections DN 15 (1/2")
  • With internal Aleternum anti-corrosion treatment
  • Scope of delivery:
  • Radiator
  • Wall mountings
  • Air vent

Technical data

Color White
Depth [mm] 25.8
RAL number 9010
Surface protection Lacquered
Connection type Left and right
Max. operating pressure [bar] 16
Thread size (inch) 1/2 inch
Steel tube shape Round
Depth from wall to front face [mm] 81 to 102
Collector shape D-profile
Radiator shape Straight
Max. temperature [°C] 90
Available variants (15)
Model Power [W] 75/65°C / 70/55°C / 55/45°C / 50/40°C Water content [l] Weight [kg] Type Center distance [mm] Heater body exponent n Reference
858 × 478 mm 369 / 305 / 195 / 156 2.7 3.2 860/450 450 1.24 90 863 81
858 × 528 mm 398 / 325 / 211 / 168 2.9 3.4 860/500 500 1.25 90 863 82
858 × 628 mm 457 / 372 / 241 / 192 3.4 3.7 860/600 600 1.25 90 863 84
1152 × 478 mm 501 / 409 / 265 / 211 3.8 4.5 1160/450 450 1.25 90 863 85
1152 × 528 mm 544 / 444 / 287 / 229 4.1 4.7 1160/500 500 1.25 90 863 86
1152 × 578 mm 587 / 479 / 310 / 247 4.5 4.9 1160/550 550 1.25 90 863 87
1152 × 628 mm 630 / 514 / 332 / 264 4.9 5.1 1160/600 600 1.25 90 863 88
1488 × 478 mm 657 / 536 / 346 / 276 4.8 5.7 1490/450 450 1.25 90 863 89
1488 × 528 mm 716 / 584 / 378 / 301 5.2 5.9 1490/500 500 1.25 90 863 90
1488 × 578 mm 779 / 636 / 411 / 327 5.7 6.3 1490/550 550 1.25 90 863 91
1488 × 628 mm 835 / 681 / 441 / 351 6.1 6.5 1490/600 600 1.25 90 863 92
1740 × 478 mm 778 / 636 / 413 / 329 5.7 6.7 1740/450 450 1.24 90 863 93
1740 × 528 mm 850 / 695 / 451 / 369 6.3 7 1740/500 500 1.24 90 863 94
1740 × 578 mm 922 / 753 / 489 / 390 6.8 7.3 1740/550 550 1.24 90 863 95
1740 × 628 mm 994 / 812 / 527 / 420 7.5 7.6 1740/600 600 1.24 90 863 96
Data sheets
Radiateur sèche-serviettes Fondital Cool en aluminium, blanc RAL 9010
Fondital Cool aluminum towel warmer radiator, white RAL 9010
CHF 177.65 - CHF 290.70
858 x 478 mm 90 863 81
CHF 177.65 /each
858 x 528 mm 90 863 82
CHF 177.65 /each
858 x 628 mm 90 863 84
CHF 177.65 /each
1152 x 478 mm 90 863 85
CHF 200.85 /each
1152 x 528 mm 90 863 86
CHF 200.85 /each
1152 x 578 mm 90 863 87
CHF 200.85 /each
1152 x 628 mm 90 863 88
CHF 200.85 /each
1488 x 478 mm 90 863 89
CHF 243 /each
1488 x 528 mm 90 863 90
CHF 243 /each
1488 × 578 mm 90 863 91
CHF 243 /each
1488 x 628 mm 90 863 92
CHF 243 /each
1740 × 478 mm 90 863 93
CHF 268.20 /each
1740 x 528 mm 90 863 94
CHF 268.20 /each
1740 × 578 mm 90 863 95
CHF 290.70 /each
1740 x 628 mm 90 863 96
CHF 290.70 /each
