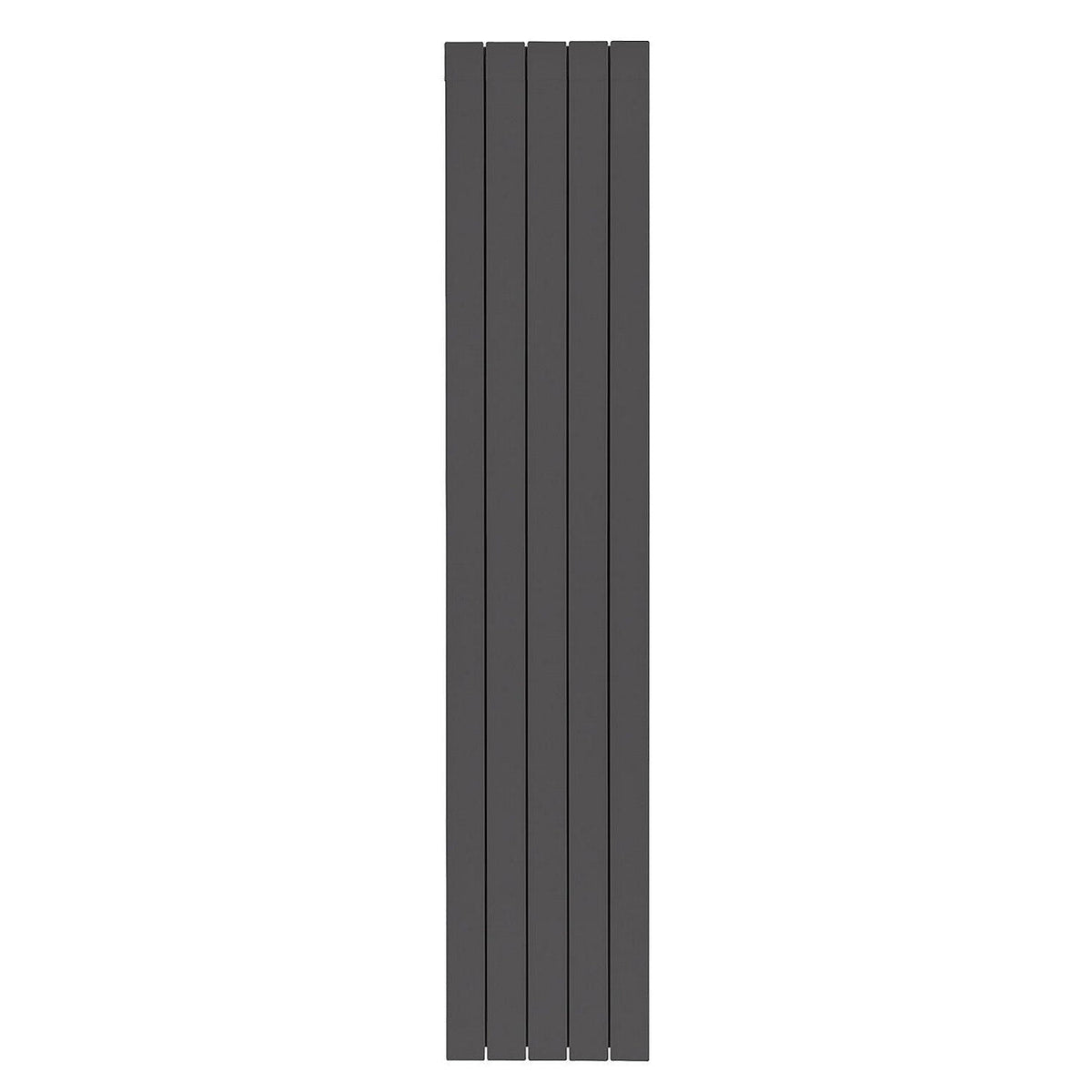

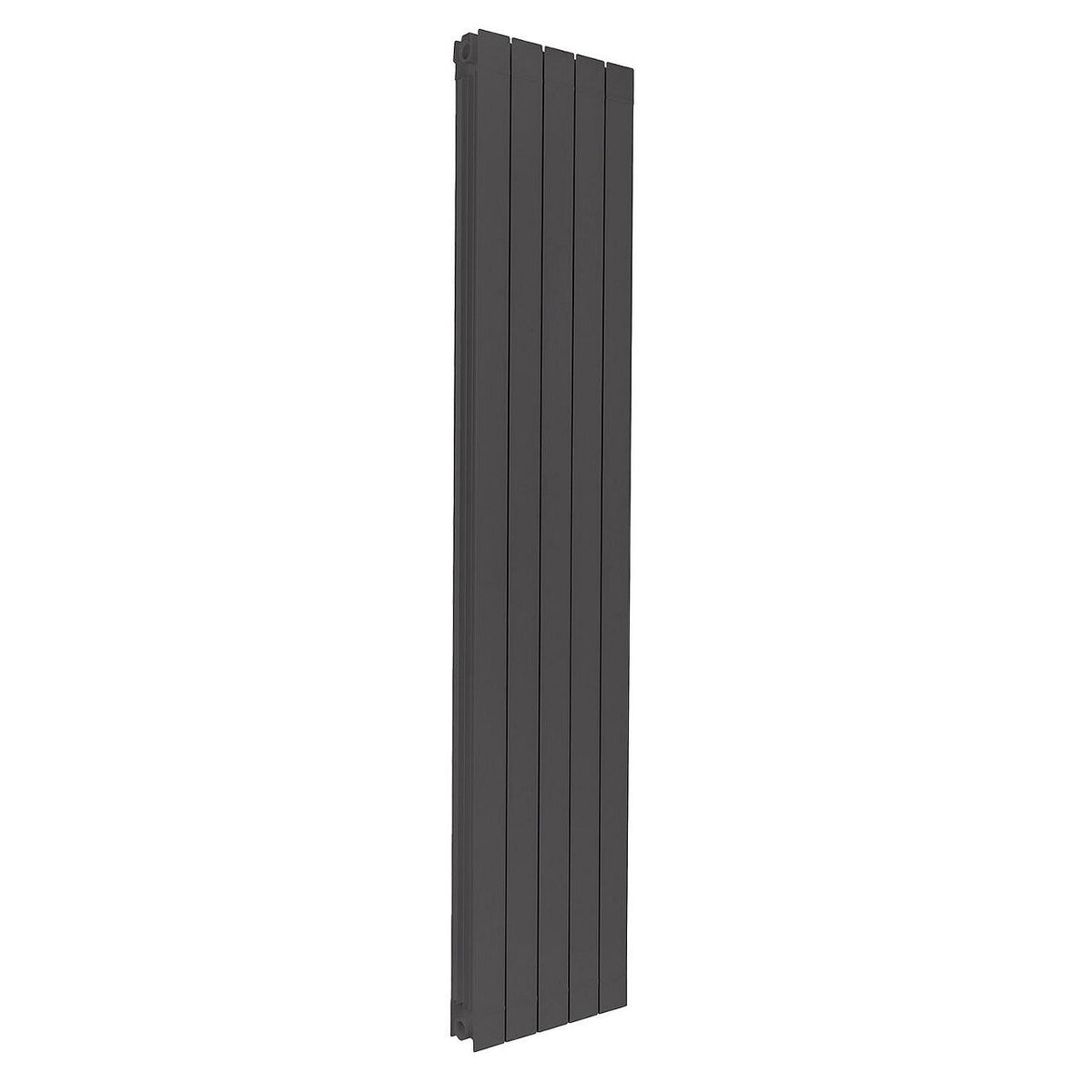

Radiateur en aluminium Garda S/90, gris ardoise RAL 7015

Radiateur en aluminium Garda S/90, gris ardoise RAL 7015

Aluminium radiator Garda S/90, slate grey RAL 7015

CHF 628.50

Tax included

Select an option to add this to your cart.

Template : 5 items

Description

This aluminum radiator is characterized by its performance, warmth, and sophistication. It adapts to all styles and space requirements, adding a touch of elegance and an exclusive note to any ambiance.

Material: aluminum
Color: anthracite/slate grey
Suitable for electric resistance: yes
Operating temperatures: max. 90°C
Operating pressure: max. 16 bar
Connections: 4 x DN 25 (1") on the side
Connection options: side, right and left
Installation depth: 90 mm
Distance from wall to center of connection: 70 mm
Scope of delivery:
Radiator
10-year warranty in compliance with VDI 2035 (pH value 7-8)

Technical Data

Axial distance [mm]	1800
Depth from wall to center [mm]	70
Thread size (inch)	1 inch right-hand thread/left-hand thread
Material	Die-cast aluminum
Height [mm]	1887
Length [mm]	420
Depth from wall to front face [mm]	0 to 115
Characteristic curve exponent n	1.357
Water content [l]	3.9
Color	Slate grey RAL 7015
Number of standard connections	4
Brackets included	No
End plug included	No
Manufacturer reference	81FGS3B405
Type	1800/5
Power [W] 75/65 / 70/55 / 55/45 / 50/40 °C	1500 / 1203 / 750 / 586
