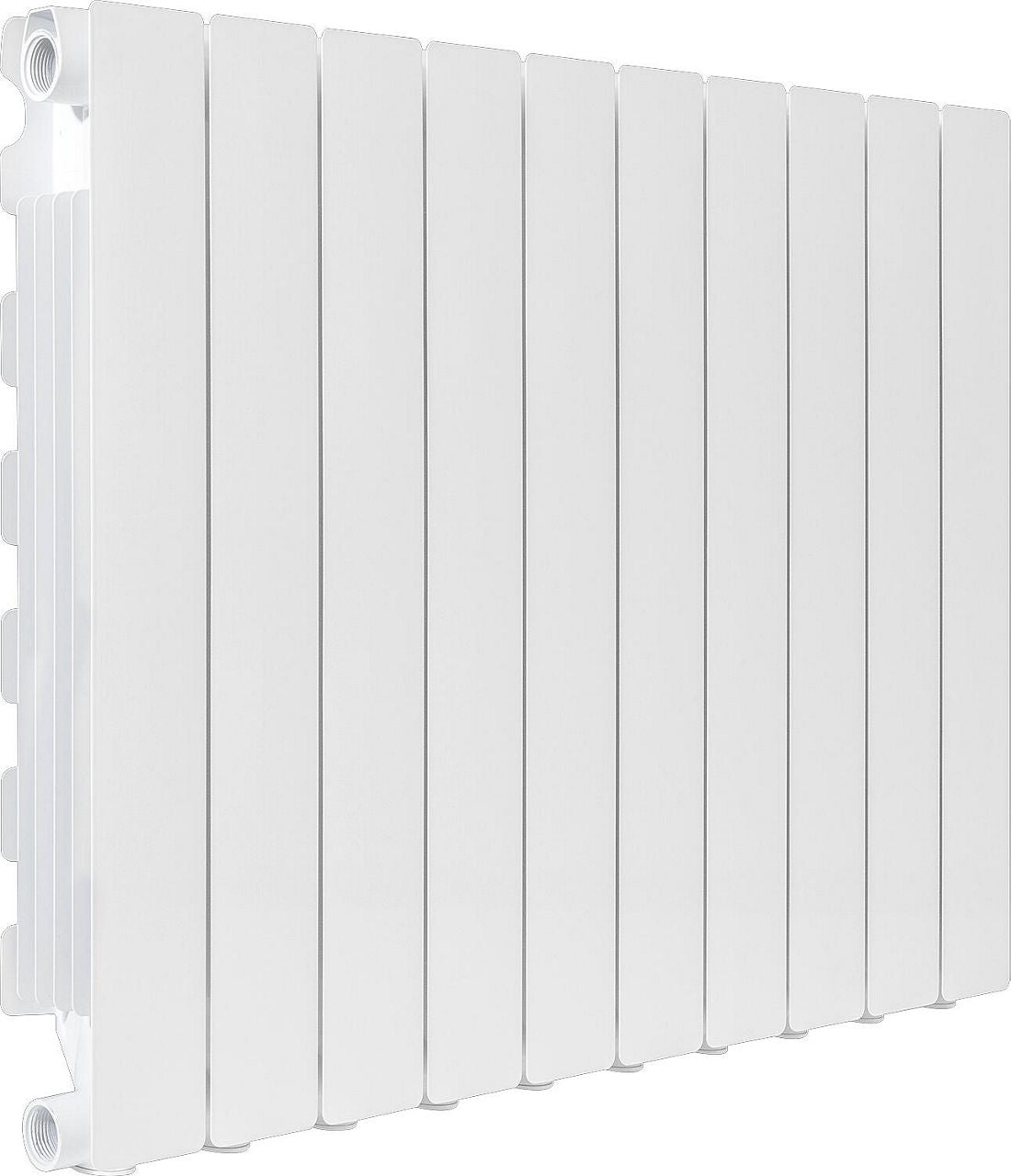

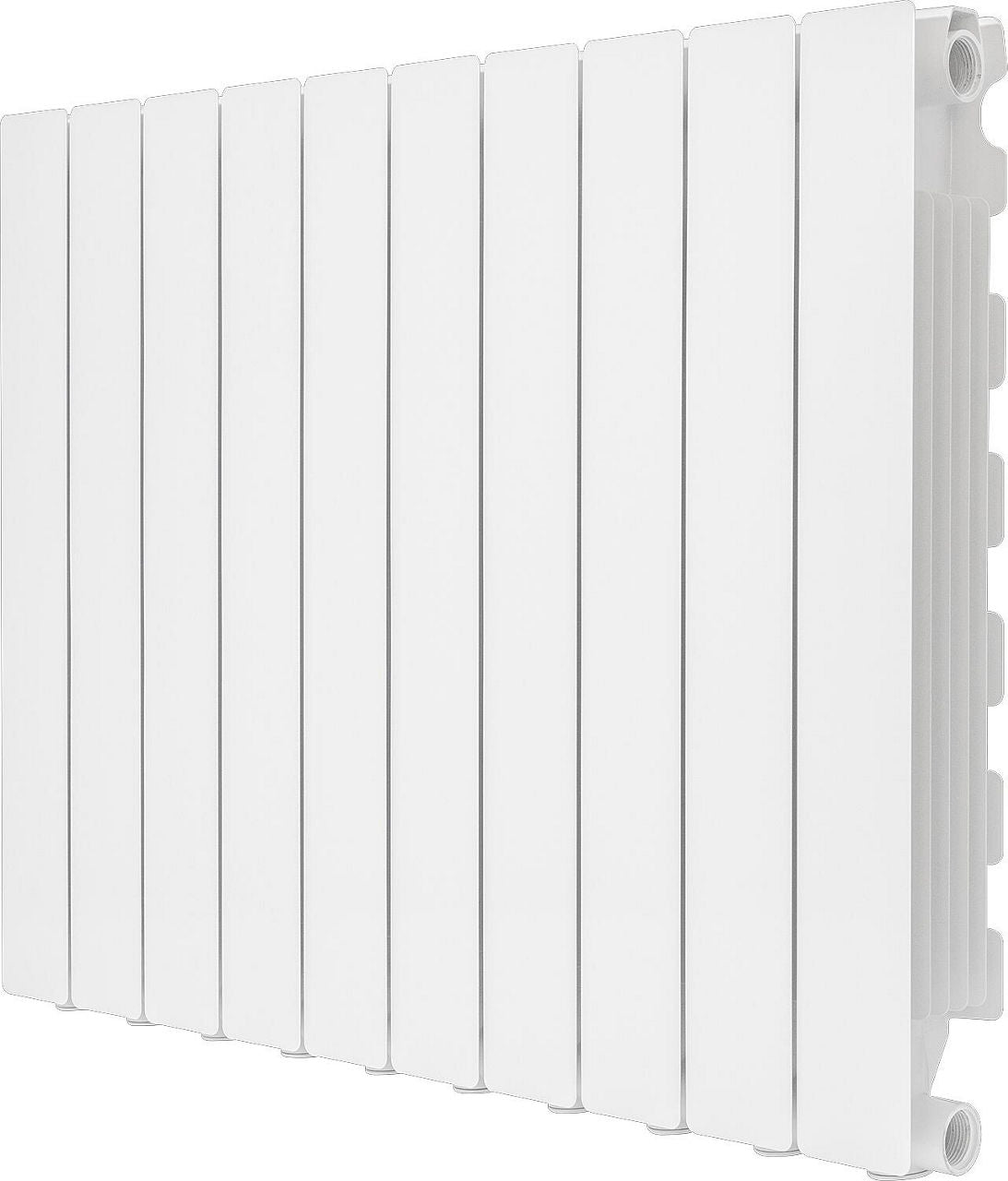

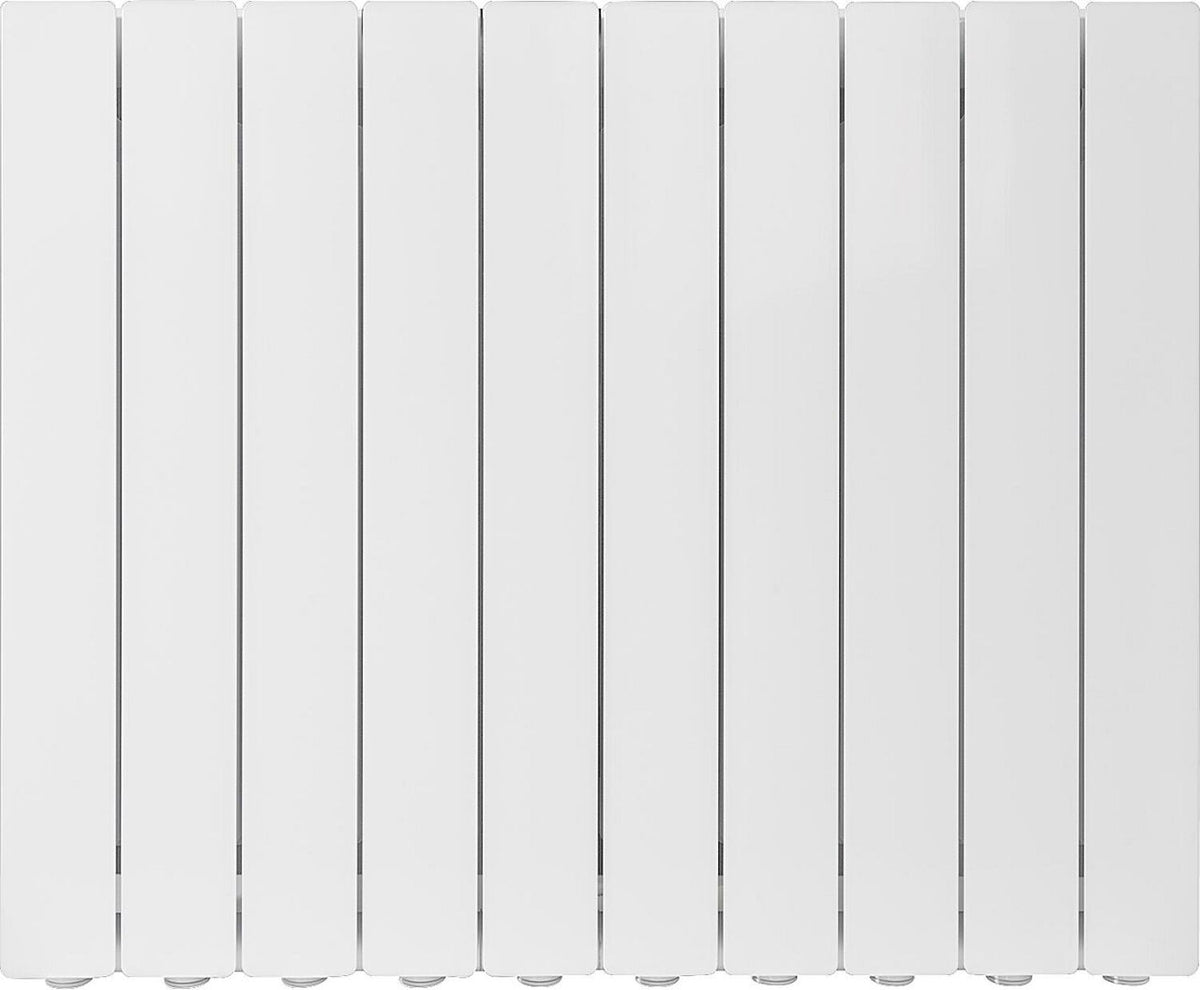

Fondital Blitz Super B4 800/100 aluminum radiator, RAL 9010 white

CHF 145.75 - CHF 417.30
/
Tax included

Select an option to add this to your cart.

Description

  • Material: aluminium
  • Suitable for electric heating element: yes
  • Operating temperature: max. 90°C
  • Operating pressure: max. 16 bar
  • 4 connections: DN25 (1")
  • Connection options: lateral right and left, and optionally on valve block
  • Mounting depth: 97 mm
  • Centre distance: 800 mm
  • Distance to wall from central connection: 80 mm

Scope of delivery

  • Radiator
  • Without wall bracket, side panels or connection accessories
  • Ideal for combustion systems with low preheating temperature
  • Can be used as a radiator with integrated valve (optional accessories)
  • Can also be used as a replacement body for DIN radiators, while respecting wall distances!

Technical data

Wall to centre depth [mm] 80
Thread size (inch) 1 inch right-hand thread/left-hand thread
Material Die-cast aluminium
Height [mm] 857
Wall to front face depth [mm] 0 to 128.5
Characteristic curve exponent n 1.33
Colour White RAL 9010
Number of standard connections 4
Brackets included No
End cap included No
Available variants
Model Length [mm] Water content [l] Weight [kg] Power [W] 75/65 / 70/55 / 55/45 / 50/40 °C Reference
4 elements 320 1.52 8.2 706 / 571 / 362 / 285 90 044 38
6 elements 480 2.28 12.2 1059 / 857 / 543 / 428 90 044 39
8 elements 640 3.04 16.3 1412 / 1142 / 724 / 571 90 044 40
10 elements 800 3.8 20.4 1766 / 1428 / 906 / 714 90 044 41
Datasheets
Radiateur en aluminium Fondital Blitz Super B4 800/100, blanc RAL 9010
Fondital Blitz Super B4 800/100 aluminum radiator, RAL 9010 white
CHF 145.75 - CHF 417.30
4 items 90 044 38
CHF 145.75 /each
6 items 90 044 39
CHF 281.35 /each
8 items 90 044 40
CHF 344 /each
10 items 90 044 41
CHF 417.30 /each
