Raccords Geberit FlowFit

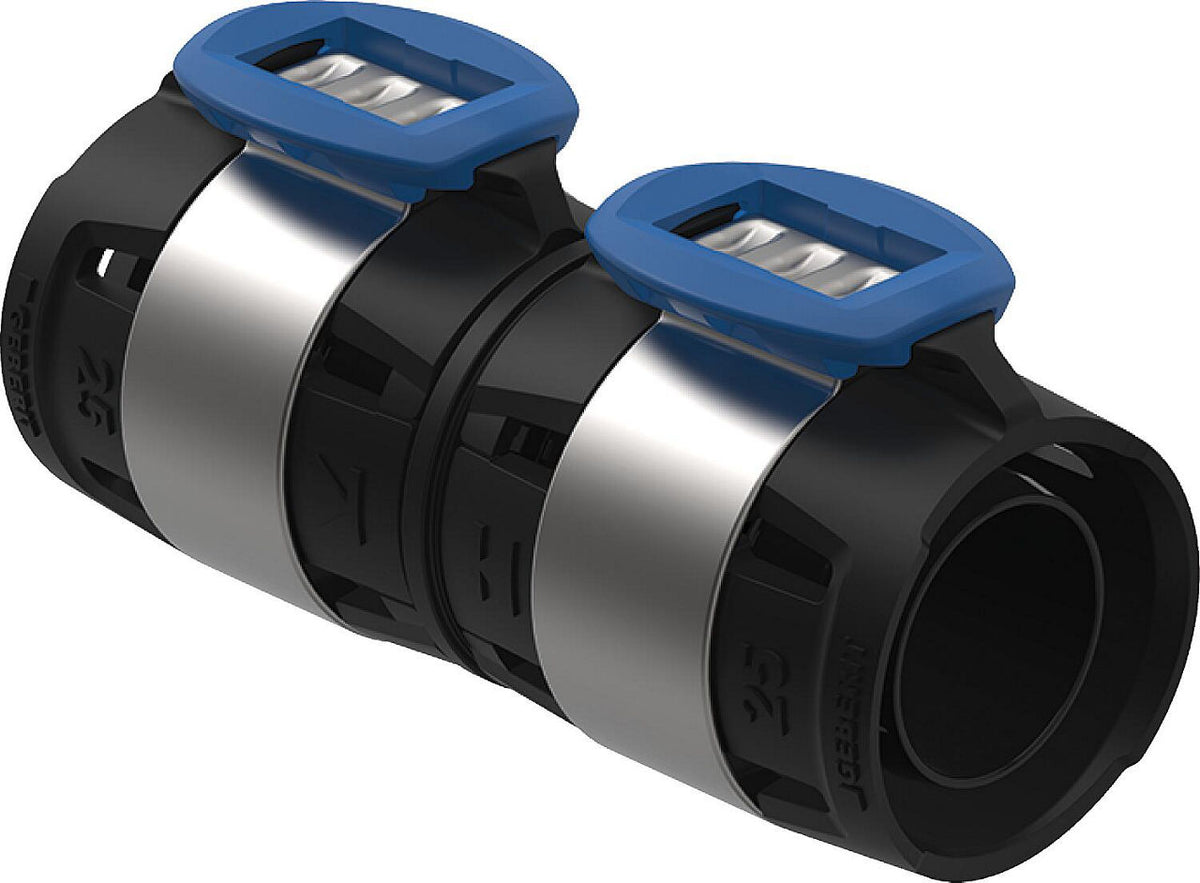

Geberit FlowFit Fittings

CHF 4.35 - CHF 10.65

Tax included

Select an option to add this to your cart.

Configuration : Ø 16 mm : 20 mm : Ø25 mm : Ø32 mm

Compression fitting system for sanitary, heating, compressed air, and industrial applications. Lead-free PPSU (polysulfone) fittings, silicon bronze threaded fittings. Maximum temperature for drinking water 70°C, maximum pressure 10 bar.

Features

High-performance PPSU (polysulfone) fittings
Lead-free silicon bronze threaded fittings
Maximum drinking water temperature: 70°C
Maximum operating pressure: 10 bar
Universal system for sanitary, heating, compressed air, and industrial applications
Quick compression assembly
Available in several diameters (16 to 32 mm)

Technical Data

Number of connections	2
Brand	Geberit
Connection 1	Pressed sleeve
Shape	straight
DVGW Seal	Yes
Suitable for drinking water according to UBA positive list	Yes
Connection 2	Pressed sleeve
Dimensions	Ø16 mm: 16 mm · Ø20 mm: 20 mm · Ø25 mm: 25 mm · Ø32 mm: 32 mm
Length [mm]	Ø16 mm: 77 · Ø20 mm: 77 · Ø25 mm: 77 · Ø32 mm: 87
Execution	1 piece
Max. fluid temperature (continuous operation) [°C]	80
With flat seal	No
Conical	No
Max. working pressure [bar]	10
