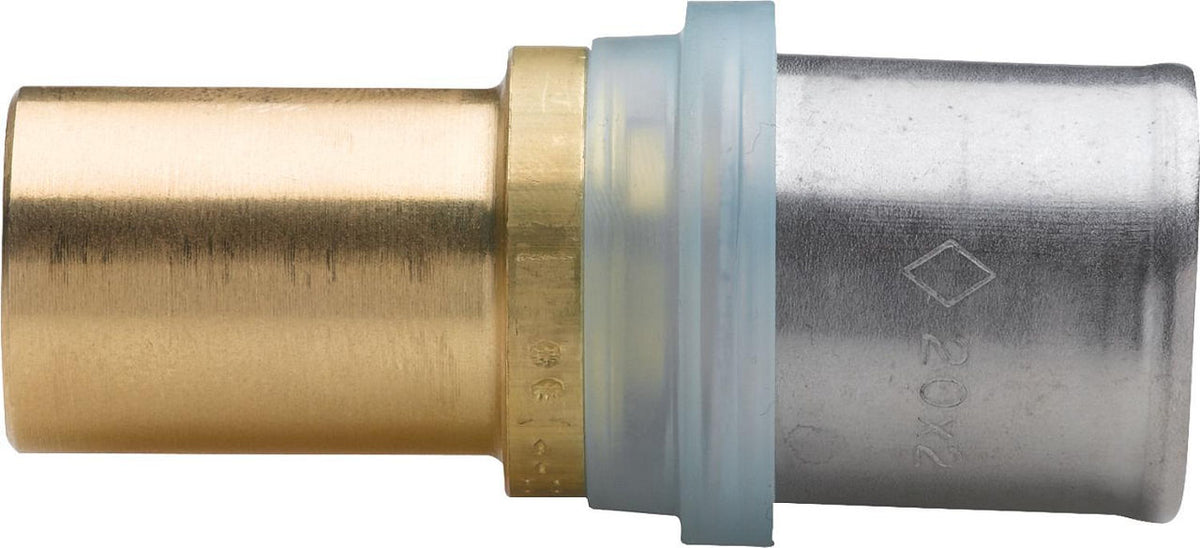

Evenes multilayer/steel-copper transition fitting

CHF 7.30 - CHF 19.90
/
Tax included

Select an option to add this to your cart.

Connection system for sanitary, heating, and oil-free compressed air installations. Drinking water compliant according to UBA positive list. High-quality brass fitting body for transition between multi-layer pipe and copper.

Features

  • Multi-layer to copper transition fitting
  • Quality brass body
  • Drinking water compliant according to UBA positive list
  • Suitable for sanitary and heating installations
  • Compatible with oil-free compressed air
  • Reliable Evenes system

Technical Data

Number of connections 2
Brand Evenes
Connection 1 Compression sleeve
Shape Straight
DVGW Seal Yes
Suitable for drinking water according to UBA positive list Yes
Connection 2 Pipe sleeve
Dimensions 16x2 mm - Ø15 mm : 16 x 2 - 15 mm · 20x2 mm - Ø18 mm : 20 x 2 - 18 mm · 20x2 mm - Ø22 mm : 20 x 2 - 22 mm · 26x3 mm - Ø22 mm : 26 x 3 - 22 mm · 32x3 mm - Ø28 mm : 32 x 3 - 28 mm
Design 1 piece
Max. fluid temperature (continuous operation) [°C] 95
Flat seal No
Conical No
Max. working pressure [bar] 10
Available variants
  • SKU 90 063 86 : 16x2 mm - Ø15 mm
  • SKU 90 063 87 : 20x2 mm - Ø18 mm
  • SKU 90 063 88 : 20x2 mm - Ø22 mm
  • SKU 90 063 89 : 26x3 mm - Ø22 mm
  • SKU 90 063 90 : 32x3 mm - Ø28 mm
Datasheets
Raccord de transition evenes multicouche/acier-cuivre
Evenes multilayer/steel-copper transition fitting
CHF 7.30 - CHF 19.90
Raccord de transition evenes multicouche/acier-cuivre
16x2 mm - Ø15 mm 90 063 86
CHF 7.30 /each
Raccord de transition evenes multicouche/acier-cuivre
20x2 mm - Ø18 mm 90 063 87
CHF 9.90 /each
Raccord de transition evenes multicouche/acier-cuivre
20x2 mm - Ø22 mm 90 063 88
CHF 9.75 /each
Raccord de transition evenes multicouche/acier-cuivre
26x3 mm - Ø22 mm 90 063 89
CHF 17.55 /each
Raccord de transition evenes multicouche/acier-cuivre
32x3 mm - Ø28 mm 90 063 90
CHF 19.90 /each
