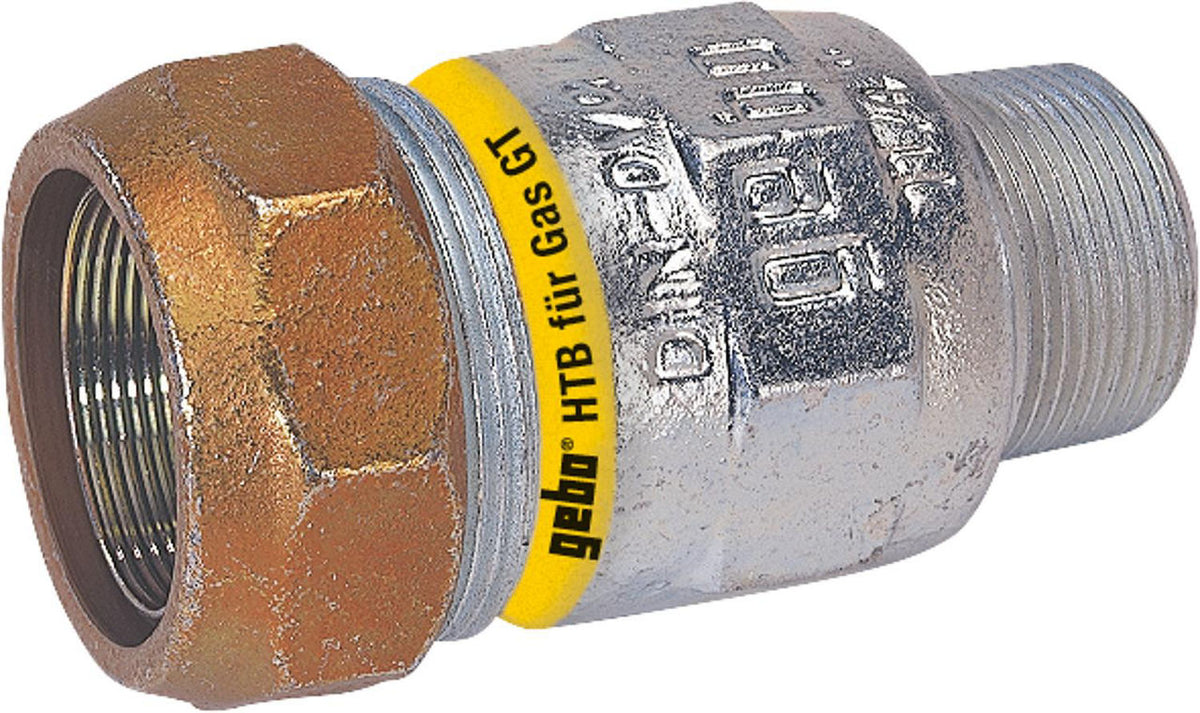

Raccord à compression en fonte malléable, embout mâle Type AT pour gaz Gebo
Raccord à compression en fonte malléable, embout mâle Type AT pour gaz Gebo
Raccord à compression en fonte malléable, embout mâle Type AT pour gaz Gebo

Malleable cast iron compression fitting, male Type AT end for Gebo gas

CHF 38.30 - CHF 56.45
/
Tax included

Select an option to add this to your cart.

Connecting system for indoor gas installations with high brazing temperature (HTB) up to 650 °C for 30 minutes. NBR seal for reliable sealing. Malleable cast iron compression fitting with male thread.

Features

  • System for indoor gas installations
  • High brazing temperature (HTB) resistance up to 650 °C (30 min.)
  • NBR seal
  • Malleable cast iron compression fitting
  • Connection piece with male thread
  • Nominal pressure PN 4

Technical data

Number of connections 2
Brand gebo
Surface protection galvanised
Connection 1 external thread
Shape straight
DVGW seal No
Suitable for drinking water according to UBA positive list No
Connection 2 external thread
Nominal diameter 3/4" - Ø26.9 mm : DN 20 (3/4") · 1 1/4" - Ø42.4 mm : DN 32 (1 1/4")
Version 2 pieces
Max. fluid temperature (continuous operation) [°C] 60
With flat gasket No
Tapered No
Max. operating pressure [bar] 5
Available variants
  • SKU 93 094 69: Malleable cast iron compression fitting, male end Type AT for gas 3/4" - Ø26.9 mm
  • SKU 93 094 71: Malleable cast iron compression fitting, male end Type AT for gas 1 1/4" - Ø42.4 mm
Technical data sheets
Raccord à compression en fonte malléable, embout mâle Type AT pour gaz Gebo
Malleable cast iron compression fitting, male Type AT end for Gebo gas
CHF 38.30 - CHF 56.45
Raccord à compression en fonte malléable, embout mâle Type AT pour gaz Gebo
3/4" - 1.05 in. OD 93 094 69
CHF 38.30 /each
Raccord à compression en fonte malléable, embout mâle Type AT pour gaz Gebo
1 1/4" - Ø42.4 mm 93 094 71
CHF 56.45 /each
