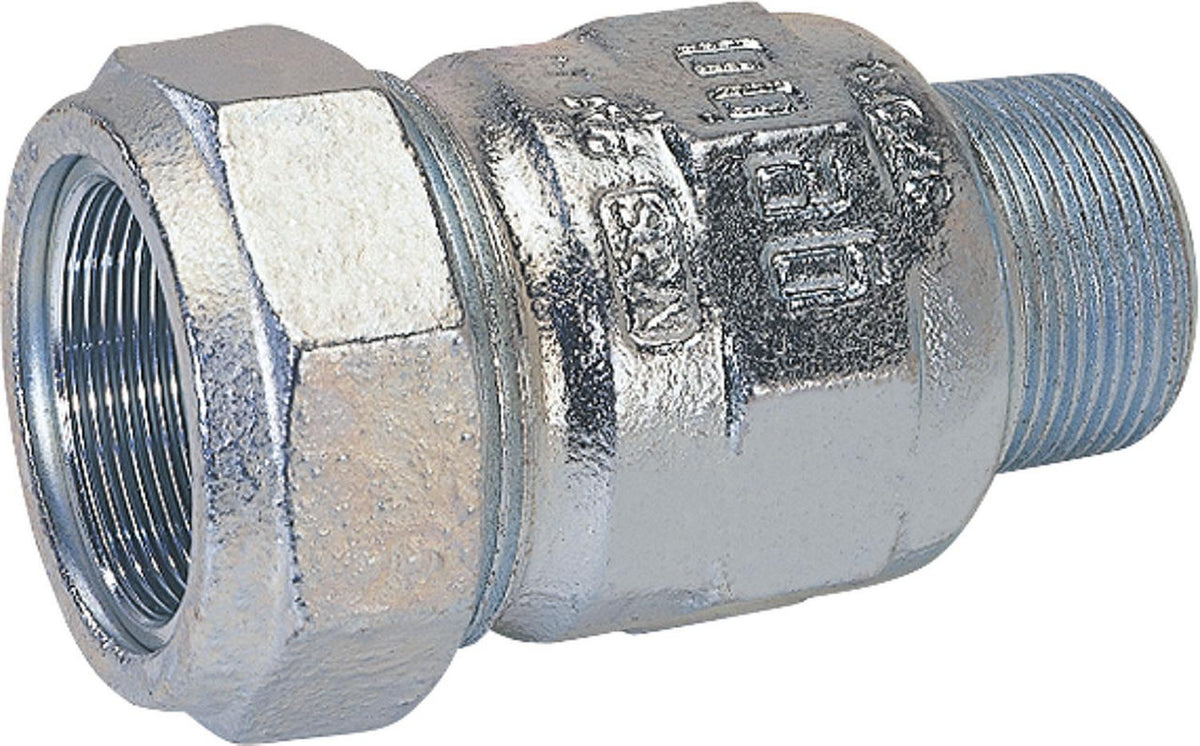

Malleable cast iron compression fitting, male end Type A for water and gas Gebo

CHF 15.80 - CHF 58.50
/
Tax included

Select an option to add this to your cart.

Connection system for indoor gas installations with high brazing temperature (HTB) up to 650 °C for 30 minutes. NBR gasket for reliable sealing. Malleable cast iron compression fitting with male thread.

Features

  • System for indoor gas installations
  • High brazing temperature (HTB) resistance up to 650 °C (30 min.)
  • NBR gasket
  • Malleable cast iron compression fitting
  • Connection piece with male thread
  • Nominal pressure PN 4

Technical Data

Number of connections 2
Brand gebo
Surface protection galvanized
Connection 1 Union nut
Shape straight
DVGW seal No
Suitable for drinking water according to UBA positive list Yes
Connection 2 external thread
Nominal diameter 3/8" - Ø17.2 mm : DN 10 (3/8") · 1/2" - Ø21.3 mm : DN 15 (1/2") · 3/4" - Ø26.9 mm : DN 20 (3/4") · 1" - Ø33.7 mm : DN 25 (1") · 1 1/4" - Ø42.4 mm : DN 32 (1 1/4") · 1 1/2" - Ø48.3 mm : DN 40 (1 1/2") · 2" - Ø60.3 mm : DN 50 (2")
Design 2-piece
Max. fluid temperature (continuous operation) [°C] 80
With flat gasket No
Conical No
Max. working pressure [bar] 3/8" - Ø17.2 mm : 10 · 1/2" - Ø21.3 mm : 10 · 3/4" - Ø26.9 mm : 10 · 1" - Ø33.7 mm : 16 · 1 1/4" - Ø42.4 mm : 16 · 1 1/2" - Ø48.3 mm : 16 · 2" - Ø60.3 mm : 16
Type 3/4" - Ø26.9 mm : A DN 20 (3/4“) · 1" - Ø33.7 mm : A DN 25 (1")
Available variants
  • SKU 93 094 00 : Malleable cast iron compression fitting, male end Type A for water and gas 3/8" - Ø17.2 mm
  • SKU 93 094 01 : Malleable cast iron compression fitting, male end Type A for water and gas 1/2" - Ø21.3 mm
  • SKU 93 094 02 : Malleable cast iron compression fitting, male end Type A for water and gas 3/4" - Ø26.9 mm
  • SKU 93 094 03 : Malleable cast iron compression fitting, male end Type A for water and gas 1" - Ø33.7 mm
  • SKU 93 094 04 : Malleable cast iron compression fitting, male end Type A for water and gas 1 1/4" - Ø42.4 mm
  • SKU 93 094 05 : Malleable cast iron compression fitting, male end Type A for water and gas 1 1/2" - Ø48.3 mm
  • SKU 93 094 06 : Malleable cast iron compression fitting, male end Type A for water and gas 2" - Ø60.3 mm
Technical data sheets
Raccord à compression en fonte malléable, embout mâle Type A pour eau et gaz Gebo
Malleable cast iron compression fitting, male end Type A for water and gas Gebo
CHF 15.80 - CHF 58.50
Raccord à compression en fonte malléable, embout mâle Type A pour eau et gaz Gebo
3/8" - 17.2 mm diameter 93 094 00
CHF 15.80 /each
Raccord à compression en fonte malléable, embout mâle Type A pour eau et gaz Gebo
1/2" - Ø21.3 mm 93 094 01
CHF 16.90 /each
Raccord à compression en fonte malléable, embout mâle Type A pour eau et gaz Gebo
3/4" - Ø1.06 in. 93 094 02
CHF 20 /each
Raccord à compression en fonte malléable, embout mâle Type A pour eau et gaz Gebo
1" - Ø33.7 mm 93 094 03
CHF 22.45 /each
Raccord à compression en fonte malléable, embout mâle Type A pour eau et gaz Gebo
1 1/4" - Ø42.4 mm 93 094 04
CHF 32.35 /each
Raccord à compression en fonte malléable, embout mâle Type A pour eau et gaz Gebo
1 1/2" - Ø48.3 mm 93 094 05
CHF 36.30 /each
Raccord à compression en fonte malléable, embout mâle Type A pour eau et gaz Gebo
2" - Ø60.3 mm 93 094 06
CHF 58.50 /each
