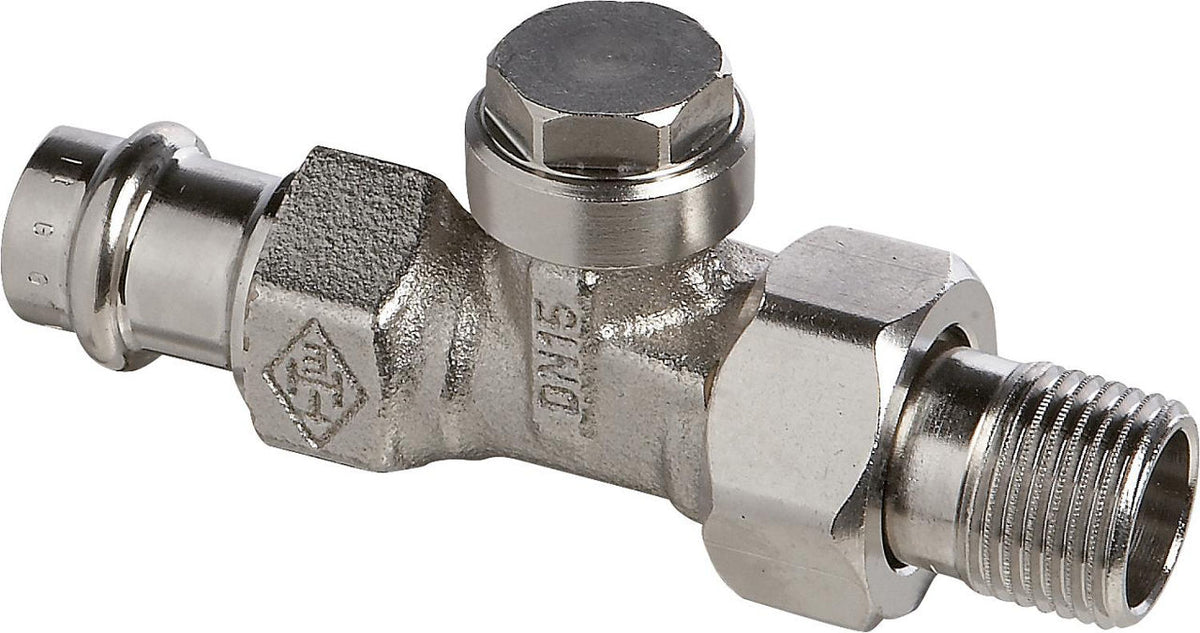

IMI Heimeier Regulux return connection DN 15 (1/2") × 15 mm SC profile

CHF 34.05 - CHF 40.65
/
Tax included

Select an option to add this to your cart.

Description

  • With locking and fine adjustment thanks to the double flap
  • Unlimited travel
  • No change in presetting when opening or closing
  • Actuation with SW 5 hexagon socket key
  • Body made of galvanized, corrosion-resistant, nickel-plated bronze
  • Installation dimension according to DIN 3842
  • With draining options
  • Connection for screwing and filling device (Order No. 90 513 27)
  • Spindle sealed by EPDM O-ring
  • Sealed metal cover
  • Permitted operating temperature with cover: 90°C
  • Permitted operating overpressure: 10 bar
  • DN 15 (1/2") male
  • Viega press fitting 15 mm
  • With SC contour
  • Permitted operating temperature: 110°C

Technical data

Surface protection nickel-plated
Material bronze
Version Male × male
Radiator connection DN 15 (1/2")
Pipe connection size 15 mm
Kvs value 1.31
Max. operating temperature [°C] 120
Self-sealing No
With drainage option (connection) Yes
Control Hexagonal socket
Available variants
Model Connection length 1 [mm] Connection length 2 [mm] Reference
Angle 58 80 90 604 22
Straight 106 33.5 90 604 24
Datasheets
Raccord de retour IMI Heimeier Regulux DN 15 (1/2") × 15 mm profil SC
IMI Heimeier Regulux return connection DN 15 (1/2") × 15 mm SC profile
CHF 34.05 - CHF 40.65
Set square 90 604 22
CHF 34.05 /each
Law 90 604 24
CHF 40.65 /each
