Raccord de retour IMI Heimeier DN 15 (1/2") R 1/2" mâle avec vanne d'arrêt et réglage de précision
Raccord de retour IMI Heimeier DN 15 (1/2") R 1/2" mâle avec vanne d'arrêt et réglage de précision
Raccord de retour IMI Heimeier DN 15 (1/2") R 1/2" mâle avec vanne d'arrêt et réglage de précision

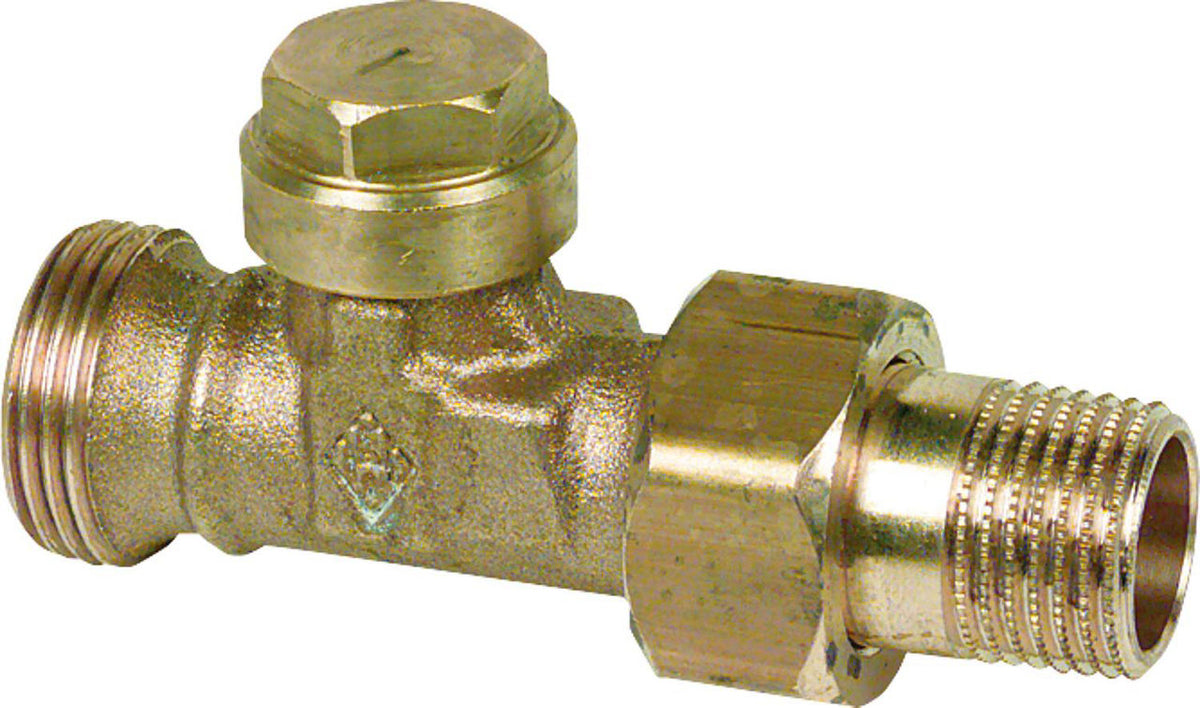

IMI Heimeier DN 15 (1/2") R 1/2" male return connection with shut-off valve and fine adjustment

CHF 22.25
/
Tax included

Select an option to add this to your cart.

Description

(for underfloor heating manifold)

  • Body made of dezincification-resistant bronze
  • Screw plug with flat seal
  • No change to presetting when opening or closing
  • Max. operating temperature: 120°C
  • Permissible operating pressure: 10 bar
  • Connection: DN 15 (1/2") connection x DN 20 (3/4") Eurocone
  • Manufacturer ref.: 0404-02.000

Technical data

kv value [m³/h] for presetting 3 1.01
kv value [m³/h] for presetting 0 0.09
kv value [m³/h] for presetting 1 0.30
kvs value 5 1.31
kv value [m³/h] for presetting 2 0.65
Type DN 15 1/2"
kv value [m³/h] for presetting 4 1.14
Self-sealing No
Version External thread / External thread
Height [mm] 30
Shape Straight
Surface protection Untreated
Control Hexagon socket
Max. fluid temperature (continuous operation) [°C] 120
Connection length 1 [mm] 98
Operating length connection 1 [mm] 88
Max. operating pressure [bar] 10
Pipe connection size DN 20 (3/4") AG Eurocone
Radiator connection size DN 15 (1/2")
Kvs value 1.31
With drain option (connection) No
Material Red copper
Color Material color
Data sheets
Raccord de retour IMI Heimeier DN 15 (1/2") R 1/2" mâle avec vanne d'arrêt et réglage de précision
IMI Heimeier DN 15 (1/2") R 1/2" male return connection with shut-off valve and fine adjustment
CHF 22.25
Standard 90 104 00
CHF 22.25 /each
