Danfoss RLV 15 Return Fitting DN 15 (1/2") × Eurocone DN 20 (3/4")

CHF 15 - CHF 18.55
/
Tax included

Select an option to add this to your cart.

Description

  • Lockable and adjustable
  • Connection for filling and draining valves possible
  • Max. operating pressure: 10 bar
  • Max. operating temperature: 120°C
  • Material: brass, nickel-plated
  • kv value: 2.5
  • Radiator connection: 1/2"
  • Device connection: 3/4" male thread

Technical data

Surface protection Nickel-plated
Version Male x male
Radiator connection DN 15 (1/2")
Pipe connection size DN 20 (3/4")
Kvs value 2.5
Self-sealing No
With drainage option (connection) Yes
Control Hexagon socket
Available variants
Model Connection length 1 [mm] Working length connection 1 [mm] Connection length 2 [mm] Working length connection 2 [mm] Height [mm] Item no.

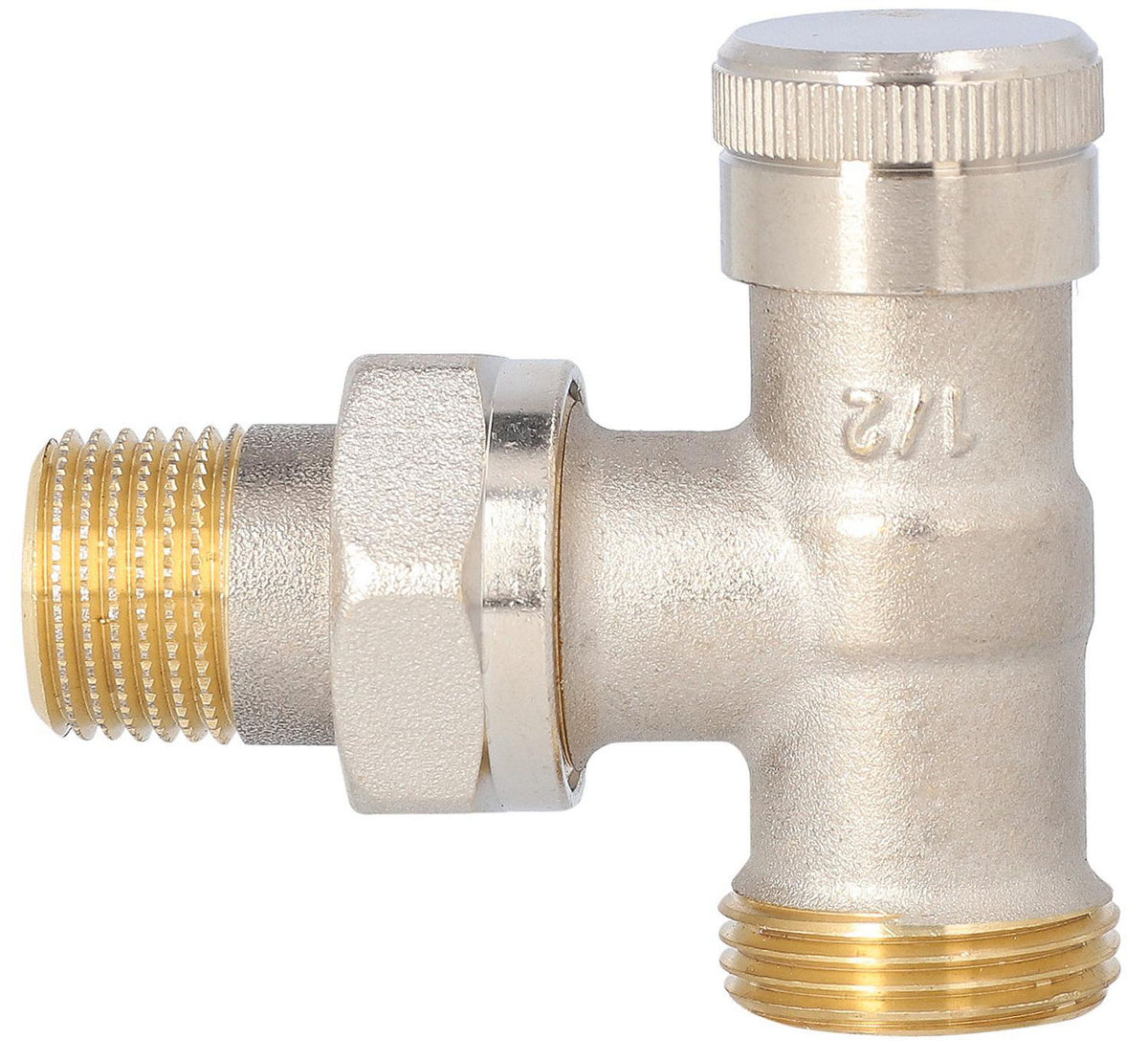

Angled 62 27 57 30 — 90 171 90

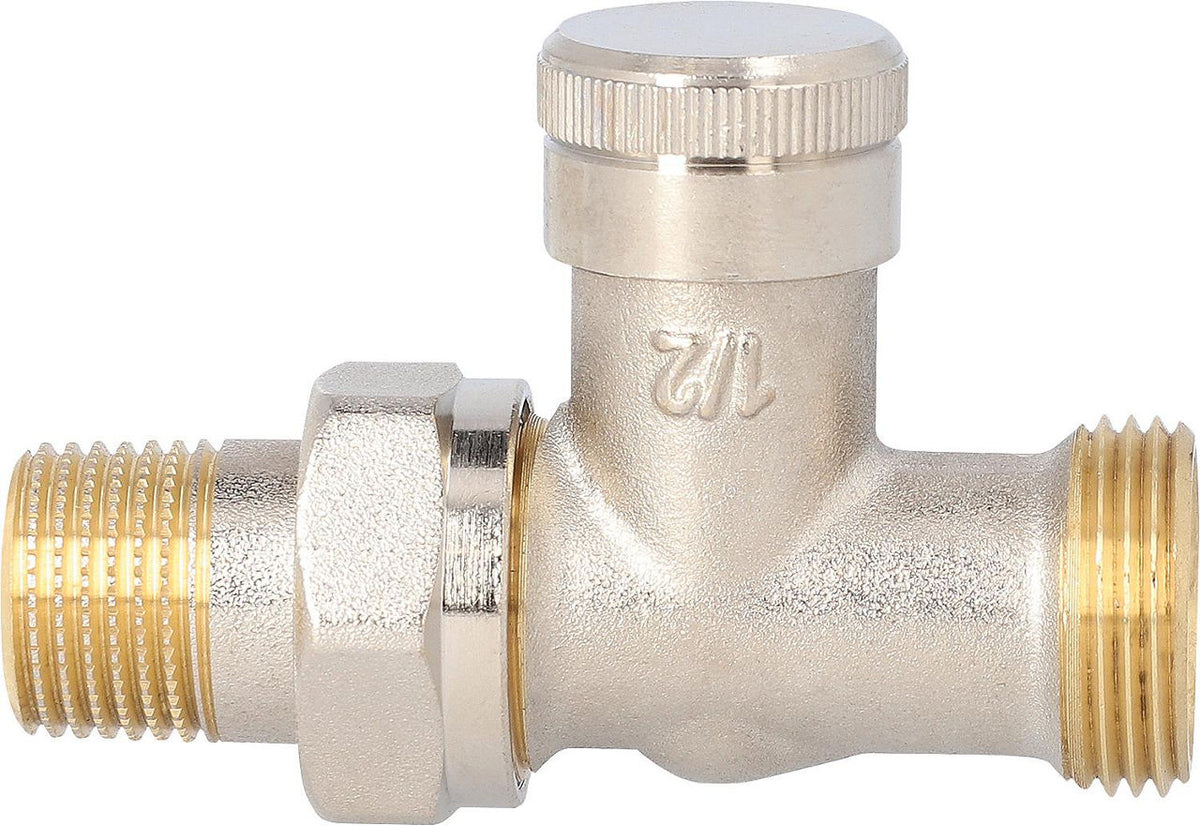

Straight 81 53 28 28 41 90 171 91
Data sheets
Raccord de retour Danfoss RLV 15 DN 15 (1/2") × eurocône DN 20 (3/4")
Danfoss RLV 15 Return Fitting DN 15 (1/2") × Eurocone DN 20 (3/4")
CHF 15 - CHF 18.55
Set square 90 171 90
CHF 15 /each
Law 90 171 91
CHF 18.55 /each
