Raccord à emboîter Isoflexa avec collerette
Raccord à emboîter Isoflexa avec collerette
Raccord à emboîter Isoflexa avec collerette

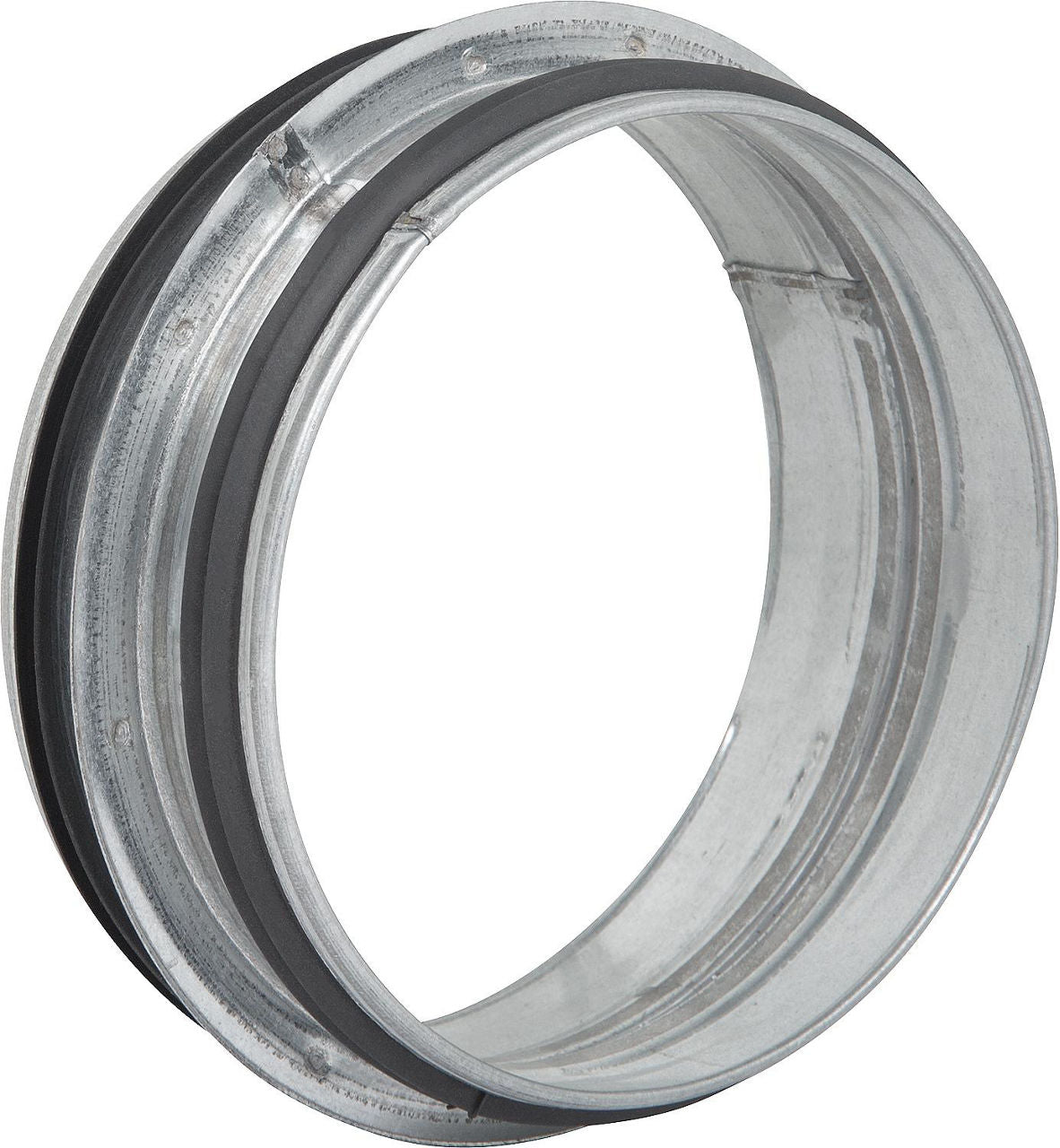

Isoflexa push-fit fitting with collar

CHF 6.40 - CHF 12.65
/
Tax included

Select an option to add this to your cart.

Description

  • Diffusion-tight, aluminum-coated expanded polyethylene pipe for versatile use in ventilation technology, for example as an exhaust air and outdoor air system, or as an air supply and exhaust pipe for heating and ventilation systems, heat pumps, kitchen exhaust, etc.
  • Leak-proof and simple connection with connector with lip seal and aluminum tape
  • High thermal and acoustic insulation
  • High protection against condensation
  • Ozone and UV resistant
  • Meets the requirements of DIN 1946-6, VDI 6022
  • Insulation thickness: 20 mm
  • Foam tube material: extruded PE, biobutane
  • Coating material: Aluminum/PET
  • Thermal conductivity: 0.038 W/mK
  • Operating temperature: -30 °C to +80 °C
  • Fire class: DIN 4102-1, flame retardant
  • With collar
  • For watertight connection of all molded parts with the insulating tube
  • Materials: galvanized brass, EPDM seal
Available variants
Model Reference
Nominal diameter 100 mm 98 020 25
Nominal diameter 125 mm 98 012 36
Nominal diameter 150 mm 98 012 37
Nominal diameter 160 mm 98 012 38
Nominal diameter 200 mm 98 016 97
Datasheets
Raccord à emboîter Isoflexa avec collerette
Isoflexa push-fit fitting with collar
CHF 6.40 - CHF 12.65
Nominal diameter 100 mm 98 020 25
CHF 6.40 /each
Nominal diameter 125 mm 98 012 36
CHF 6.75 /each
Nominal diameter 150 mm 98 012 37
CHF 7.90 /each
Nominal diameter 160 mm 98 012 38
CHF 11.40 /each
Nominal diameter 200 mm 98 016 97
CHF 12.65 /each
