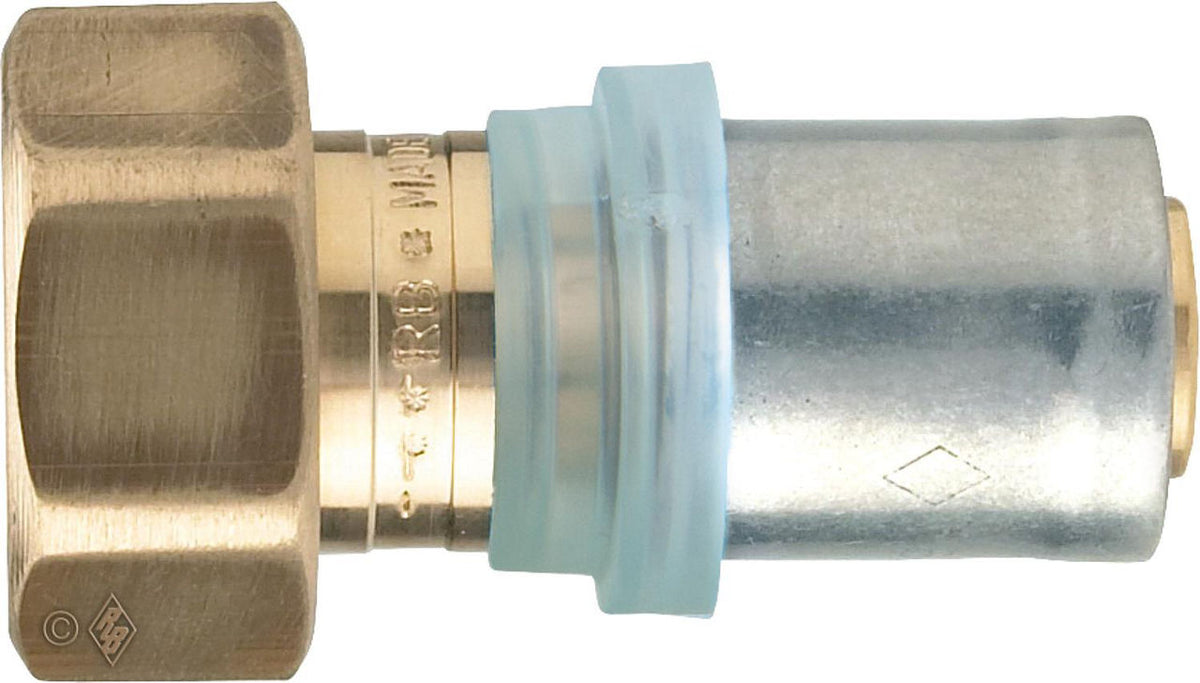

Raccord à écrou tournant à bague conique evenes multicouche

Multilayer Evenes compression fitting with conical nut

CHF 6.65 - CHF 6.95

Tax included

Select an option to add this to your cart.

Configuration : 14x2 mm - 1/2" : 16x2 mm - 1/2"

Evenes press fitting with union nut for sanitary, heating, and oil-free compressed air installations. Brass body according to UBA positive list for drinking water. Press system with TH contour and flat gasket.

Features

Press fitting with union nut for evenes multilayer system
Brass fitting body
Complies with UBA positive list for drinking water
TH pressing contour
Flat gasket included
Suitable for sanitary, heating, and compressed air (oil-free) installations
Various dimensions available: 14mm to 26mm
Threaded connections from 1/2" to 1"

Technical data

Number of connections	2
Brand	Evenes
Connection 1	Union nut
Shape	straight
DVGW seal	No
Suitable for drinking water according to UBA positive list	Yes
Connection 2	Compressed sleeve
Dimensions	14x2 mm - 1/2" : 14 x 2 mm* · 16x2 mm - 1/2" : 16 x 2 mm
Design	1 piece
Max. fluid temperature (continuous operation) [°C]	95
With flat gasket	No
Tapered	No
Max. working pressure [bar]	10

Available variants

SKU 90 063 38 : 14x2 mm - 1/2"
SKU 90 063 39 : 16x2 mm - 1/2"

Technical data sheets

Multilayer Evenes compression fitting with conical nut

CHF 6.65 - CHF 6.95

14x2 mm - 1/2" 90 063 38

CHF 6.95 /each

Total:

Total: CHF 0

16x2 mm - 1/2" 90 063 39

CHF 6.65 /each

Total:

Total: CHF 0
