Pompe de drainage de cave Wilo-Drain Twister TSW 32/8-A (refroidie par eau, DN32)
Pompe de drainage de cave Wilo-Drain Twister TSW 32/8-A (refroidie par eau, DN32)
Pompe de drainage de cave Wilo-Drain Twister TSW 32/8-A (refroidie par eau, DN32)

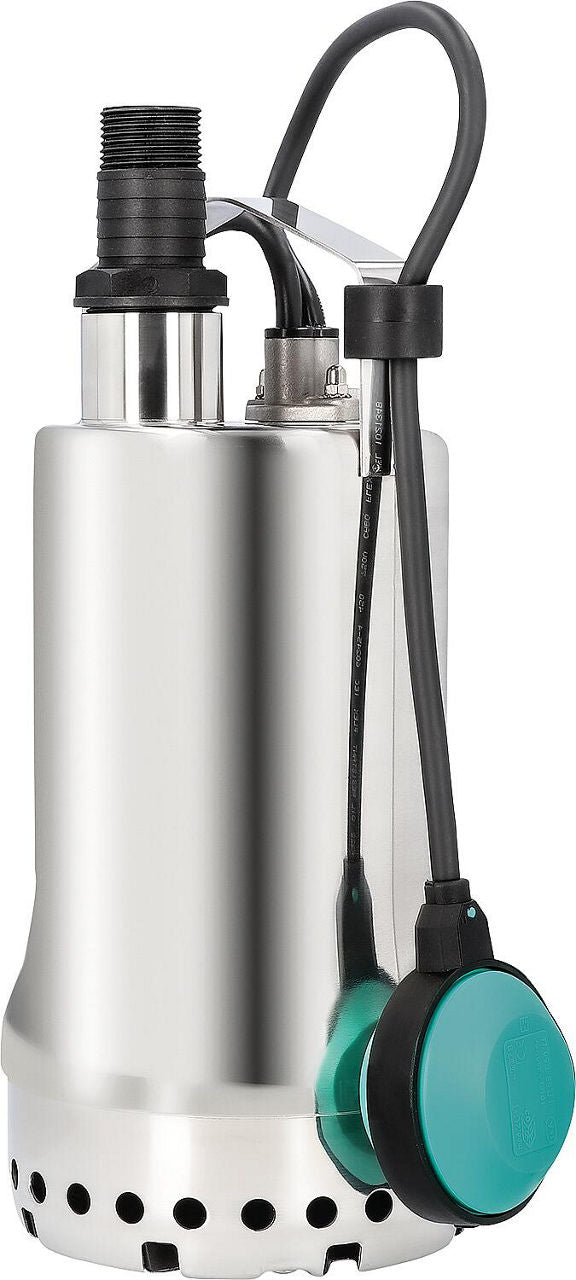

Wilo-Drain Twister TSW 32/8-A cellar drainage pump (water-cooled, DN32)

CHF 390.15
/
Tax included

Select an option to add this to your cart.

Features

  • For drainage, water extraction and pumping
  • For clean to slightly polluted water
  • Detachable connection and float cables
  • Always clean sump thanks to the patented integrated swirl device (TSW)
  • Pump body: stainless steel
  • With float switch
  • Max. discharge head: 8 m
  • Discharge connection: DN 32 (1 1/4")
  • Voltage: 230 V, 50 Hz
  • Connection cable: 10 m
  • Max. immersion depth: 10 m
  • Max. fluid temperature: 35°C
  • Weight: 7.8 kg

Technical data

  • Connection cable length [m]: 10
  • Rotational speed [rpm]: 2900
  • Motor input power (P1) [W]: 500
  • Electrical connection: Connection cable with plug
  • Rated current [A]: 2.2
  • Protection class (IP): IP68
  • Pump body material: stainless steel
  • Frequency: 50 Hz
  • Max. flow rate [l/h]: 13000
  • Max. pressure [bar]: 0.8
  • Connection voltage: 1 x 230 V
  • Type: TSW 32/8-A
  • Max. rated power [W]: 550
  • Max. operating pressure [bar]: 0.8
  • Pump diameter [mm]: 161
  • Max. grain size [mm]: 10.0
  • Nominal diameter: 1 1/4 inch (32)
  • Connection: Tapered external thread (NPT)
Data sheets
Pompe de drainage de cave Wilo-Drain Twister TSW 32/8-A (refroidie par eau, DN32)
Wilo-Drain Twister TSW 32/8-A cellar drainage pump (water-cooled, DN32)
CHF 390.15
Pompe de drainage de cave Wilo-Drain Twister TSW 32/8-A (refroidie par eau, DN32)
Standard 93 904 62
CHF 390.15 /each
