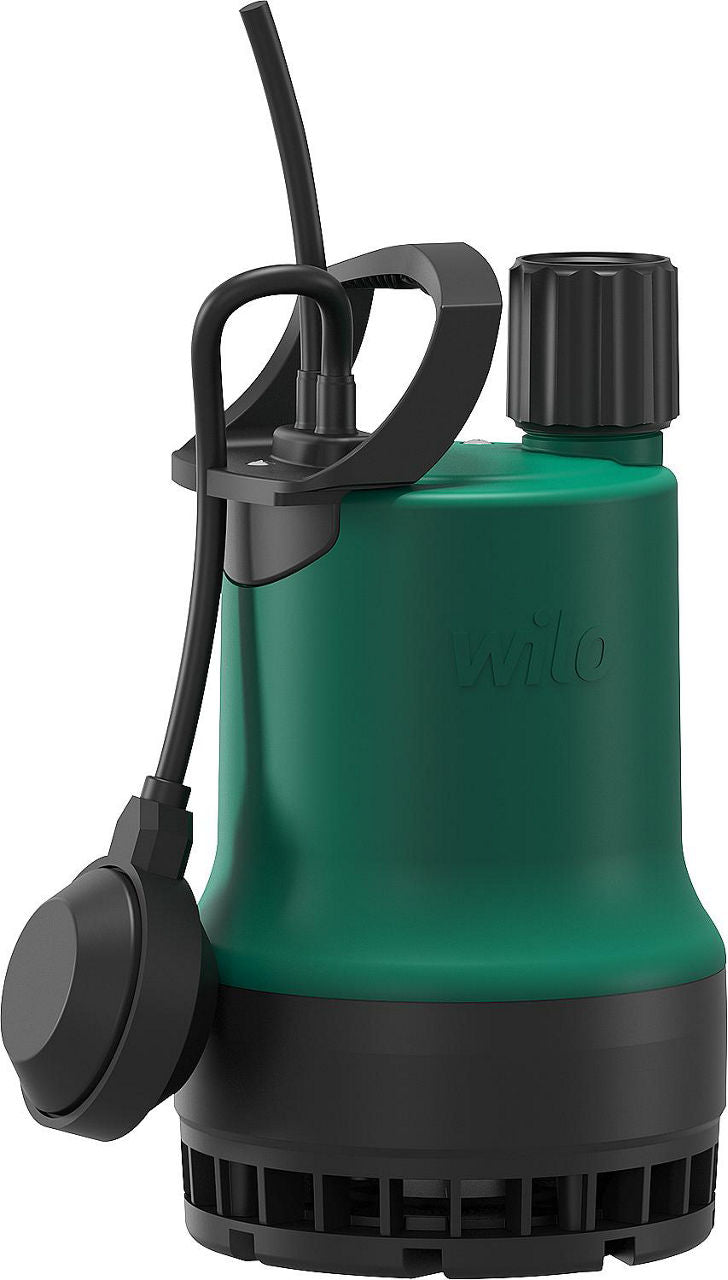

Pompe de drainage de cave Wilo-Drain Twister TMW 32/8-A (refroidie par eau, DN32)
Pompe de drainage de cave Wilo-Drain Twister TMW 32/8-A (refroidie par eau, DN32)
Pompe de drainage de cave Wilo-Drain Twister TMW 32/8-A (refroidie par eau, DN32)

Wilo-Drain Twister TMW 32/8-A Cellar Drainage Pump (water-cooled, DN32)

CHF 211.30
/
Tax included

Select an option to add this to your cart.

Features

  • For automatic operation to empty sumps, pits, or tanks, especially in the presence of sludge
  • Constantly clean pump sump thanks to the patented integrated vortex device (TSW)
  • Pump body: Polypropylene
  • With float switch
  • Max. discharge head: 7 m
  • Discharge connection: DN 32 (1 1/4")
  • Voltage: 230 V, 50 Hz
  • Connection cable: 3 m
  • Immersion depth: max. 3 m
  • Fluid temperature: max. 35°C
  • Weight: 4.7 kg

Technical Data

  • Connection cable length [m]: 3
  • Rotational speed [rpm]: 2900
  • Motor input power (P1) [W]: 450
  • Electrical connection: Connection cable with plug
  • Rated current [A]: 2.1
  • Protection class (IP): IP68
  • Pump body material: Fiber-reinforced plastic
  • Frequency: 50 Hz
  • Max. flow rate [l/h]: 8000
  • Max. pressure [bar]: 0.7
  • Connection voltage: 1 x 230 V
  • Type: TMW 32/8-A
  • Max. rated power [W]: 370
  • Max. operating pressure [bar]: 0.7
  • Pump diameter [mm]: 165
  • Max. particle size [mm]: 10.0
  • Nominal diameter: 1 1/4 inch (32)
  • Connection: Internal thread
Data sheets
Pompe de drainage de cave Wilo-Drain Twister TMW 32/8-A (refroidie par eau, DN32)
Wilo-Drain Twister TMW 32/8-A Cellar Drainage Pump (water-cooled, DN32)
CHF 211.30
Pompe de drainage de cave Wilo-Drain Twister TMW 32/8-A (refroidie par eau, DN32)
Standard 93 904 63
CHF 211.30 /each
